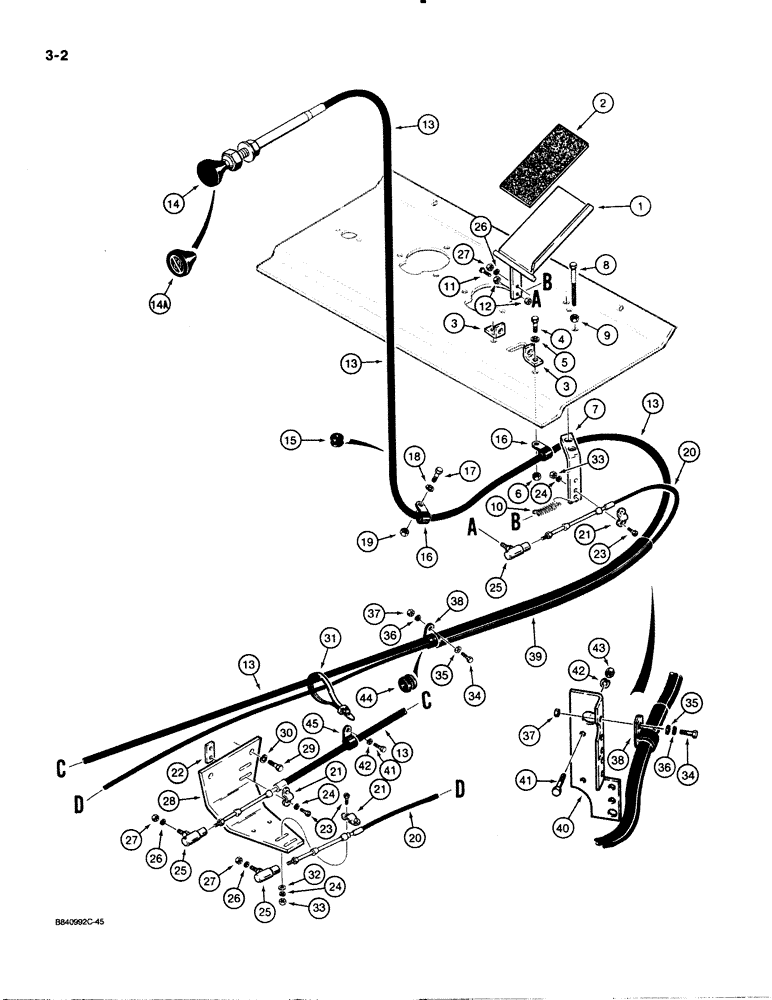

Запчасти Case W30 (3-02) - ACCELERATOR AND LINKAGE (03) - FUEL SYSTEM

1

L106011

PEDAL

- accelerator

1шт.

2

L71193

ANTI-SKID STRIP

- accelerator pedal

1шт.

3

L73462

BRACKET

MOUNT - accelerator pedal

2шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

7

L107029

BRACKET

- cable mounting, accelerator

1шт.

8

113-202

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Hex, 3/8"-16 x 4", G5

1шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

10

L106237

SPRING

- return, accelerator

1шт.

11

182-131

SCREW,Sl Pan Hd, #10 - 24 x 1 1/4"

- round head slotted, No. 10 - 24 NC x 1-1/4"

1шт.

12

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

2шт.

L113507

CABLE

ASSEMBLY - fuel shutoff, with plain knob

1шт.

13

NSS

NOT SOLD SEPARAT

CABLE - fuel shutoff

1шт.

14

L35895

KNOB

- cable, without fuel shutoff symbol

1шт.

14a

L33717

KNOB

- cable, with fuel shutoff symbol, service option

1шт.

15

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- cable, if used

1шт.

16

49859

CLAMP

- cable

1-2шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

1шт.

20

L111952

CABLE

- accelerator

1шт.

21

L12441

CLAMP

- cable

3шт.

22

L106009

RETAINER

- clamp

3шт.

23

163-12

SCREW,Hex, #10 - 24 x 3/4"

- slotted hex head, No. 10 - 24 NC x 3/4"

6шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

25

L12437

BALL JOINT,#10 - 32 x 7/8"

- accelerator linkage

3шт.

26

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

27

129-37

NUT,#10-32

3шт.

28

L105974

BRACKET

- cable

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

32

195-101

WASHER,3/16"

- flat, , plated 3/16"

2шт.

33

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

35

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

36

92-5

LOCK WASHER,5/16"

2шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

38

L100875

CLAMP

- cable

2шт.

39

L106057

HOSE ASSY.

HOSE - cable cover

1шт.

40

L126883

SUPPORT

BRACKET - cable clamp, was L105853

1шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

42

92-6

LOCK WASHER,3/8"

3шт.

43

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

44

A7808

GROMMET

- cable

1шт.

45

49845

CLAMP

- cable

1шт.
