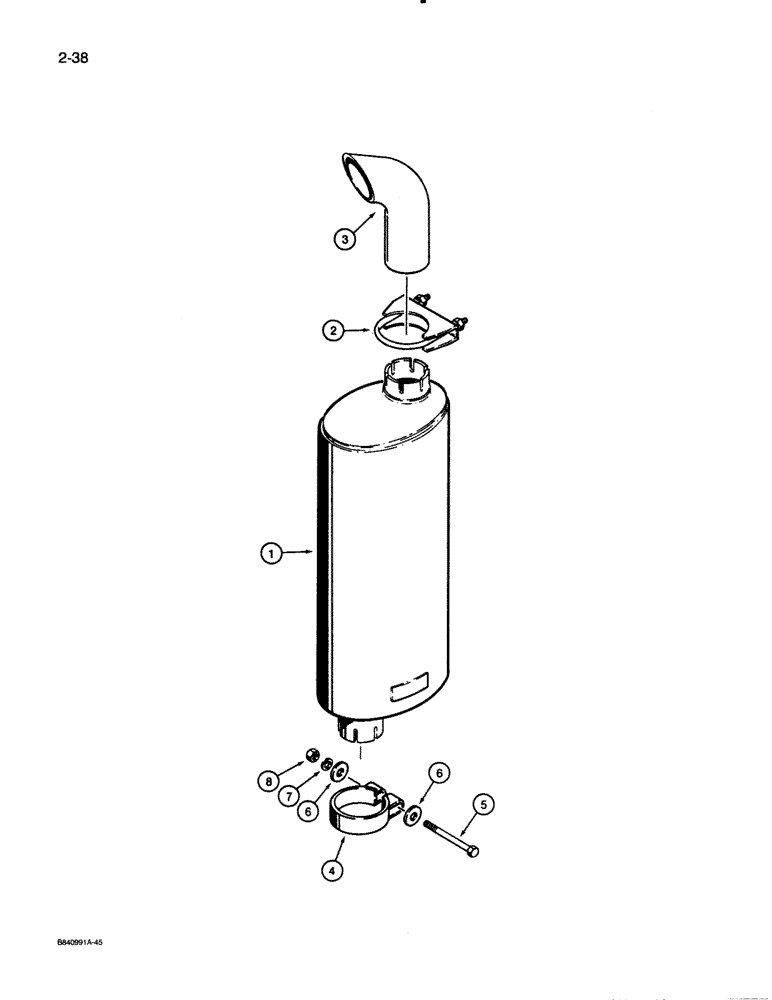

Запчасти Case W30 (2-38) - EXHAUST SYSTEM (02) - ENGINE

1

R43075

MUFFLER

- engine exhaust

1шт.

2

A17851

CLAMP

ASSEMBLY - exhaust pipe, includes hardware

1шт.

Ref #2 - Replaced by L126906

1шт.

3

L111432

TUBE

EXHAUST PIPE - engine

1шт.

4

R45478

CLAMP

- muffler

1шт.

5

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

6

D41740

WASHER

- special

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
