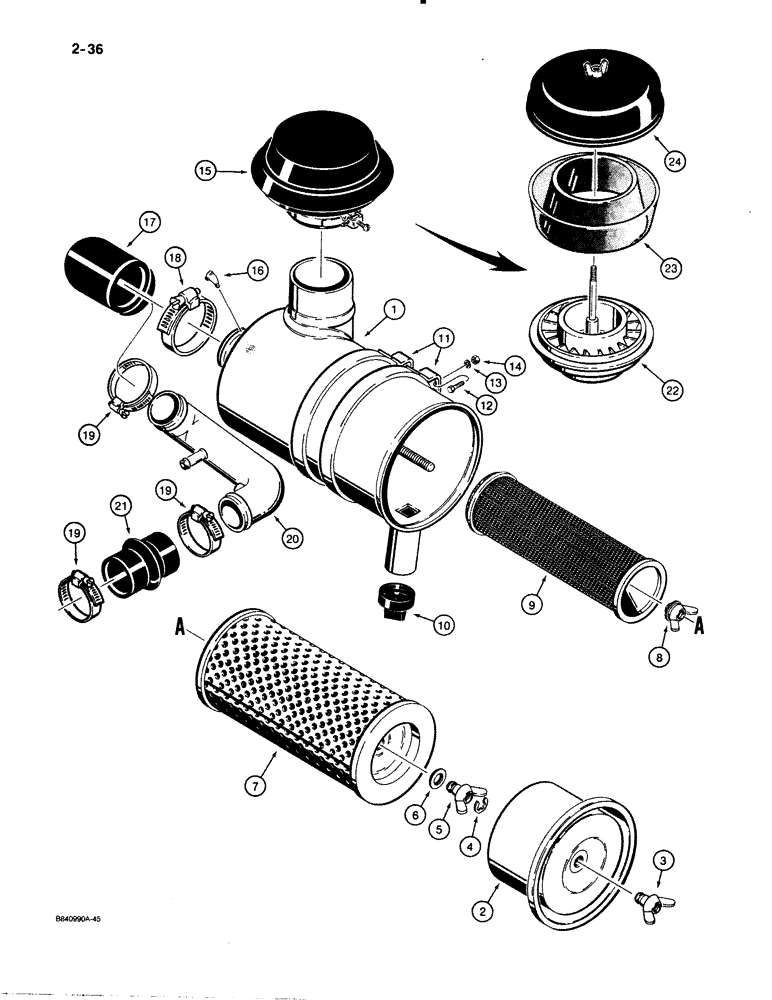

Запчасти Case W30 (2-36) - AIR CLEANER (02) - ENGINE

L114977

AIR CLEANER

ASSEMBLY - engine

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

S117038

COVER

- air cleaner

1шт.

3

A47102

WING NUT

WING NUT - cover

1шт.

4

S117040

CIRCLIP

CLIP - wing nut

1шт.

5

A47143

NUT

WING NUT - outer element

1шт.

6

S117039

GASKET,Square, 8.89mm Thk x 274.57mm ID

- cover

1шт.

Ref #6 - Replaced by S97748 and is the Wing Nut Gasket

1шт.

7

S238646

AIR FILTER

ELEMENT - outer

1шт.

8

D78354

WING NUT

WING NUT - inner element

1шт.

9

S238647

AIR FILTER

ELEMENT - inner

1шт.

10

L30414

VALVE

- dust

1шт.

Ref #10A - S117039 is the Cover Gasket 1.81" I.D. and .35" square

1шт.

11

S238773

CLAMP

- air cleaner

2шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

15

L24689

CAP

- air cleaner

1шт.

16

221-1365

ELBOW,45 Degree, 1/8" NPT

- 45 degree, 1/8" NPT

1шт.

17

S112515

ELBOW

- air cleaner

1шт.

18

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose

1шт.

19

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose

3шт.

20

L114670

TUBE

- air cleaner

1шт.

21

L108119

INTAKE AIR HOSE,76.20 mm ID x 133.00 mm

- Air Cleaner 76.20 mm ID x 133.00 mm

1шт.

R48592

PRECLEANER

ASSEMBLY - air cleaner, if used

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

23

L30671

HOUSING

BOWL - precleaner

1шт.

24

L30669

COVER

- precleaner

1шт.
