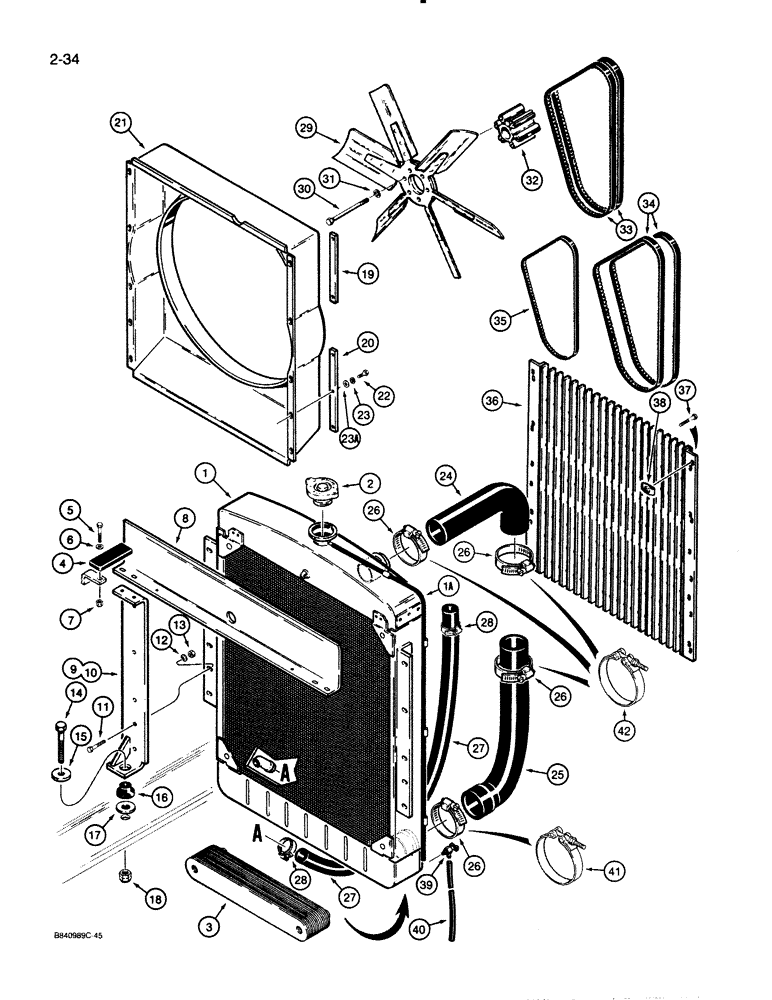

Запчасти Case W30 (2-34) - RADIATOR, FAN, AND FAN BELTS (02) - ENGINE

L115145

RADIATOR

- cooling, Young part No. E304620

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR - engine cooling

1шт.

1a

L35004

FLEXIBLE HOSE

HOSE, 0.31" ID x 57"; Cut from H424101; See Below

1шт.

2

D25826

CAP

- radiator

1шт.

3

N9273

COOLER, OIL

OIL COOLER - transmission

1шт.

3a

A58420

GAUGE

SIGHT GLASS - radiator, not shown

1шт.

4

L50641

CONNECTING STRIP

STRAP - radiator

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

7

131-94

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, special

6шт.

8

L104871

BAFFLE

- radiator

1шт.

9

L109294

SUPPORT

MOUNT - radiator, left-hand

1шт.

10

L109295

SUPPORT

MOUNT - radiator, right-hand

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

12

L105055

WASHER

- special

8шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

14

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

15

95-10

WASHER,5/8"

- flat, 5/8"

2шт.

16

L77573

BUSHING,16.51mm ID x 34.29mm OD x 25.4mm L

MOUNT - radiator, lower

2шт.

17

L77574

WASHER

- special

2шт.

18

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

2шт.

19

L114412

PLATE

- shroud mounting, upper

2шт.

20

L114200

PLATE

- shroud mounting, lower

2шт.

21

L111767

DEFLECTOR

SHROUD - radiator

1шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

10шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

23a

95-4

WASHER,1/4"

- flat, 1/4"

10шт.

24

L105029

LARGE HOSE,63.50 mm ID x 343.00 mm, SAE 20R4 Class D-2

RADIATOR HOSE, , Upper 63.50 mm ID x 343.00 mm, SAE 20R4 Class D-2

1шт.

25

L105026

RADIATOR HOSE

Lower

1шт.

26

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose, production, if used, see items 41 and 42

4шт.

27

L76902

RADIATOR HOSE,1.25" ID x 34.50", SAE 20R1 Class B

- Bypass 1.25" ID x 34.50", SAE 20R1 Class B

1шт.

28

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

29

A173018

FAN

- radiator cooling, pusher

1шт.

R29168 reversible fan can be used.

1шт.

30

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex head, 3/8" - 16 NC x 4-1/2"

6шт.

31

92-6

LOCK WASHER,3/8"

6шт.

32

L73836

SPACER

- fan

1шт.

33

L71057

SET OF BELTS,0.69" W x 62.00" L

(2), Fan, 40 amp alternator 0.69" W x 62.00" L

1шт.

34

T38546

SET OF BELTS,0.69" W x 65.75" L

V-Belt (2), Fan, 65 amp alternator 0.69" W x 65.75" L

1шт.

35

L105654

BELT,12.70 mm W x 1165.00 mm L

Compressor 12.70 mm W x 1165.00 mm L

1шт.

L36279

GUARD

KIT - antisandblast guard

1шт.

36

L123610

GUARD

- antisandblast

1шт.

37

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 1"

10шт.

38

131-132

SPRING NUT,Tinn, U, 1/4"-20

- U-type, 1/4" - 20 NC

10шт.

39

A27862

COCK, DRAIN

VALVE - radiator drain

1шт.

40

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain, See Parts Substitution List for bulk hose options 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.

41

L127864

CLAMP

- hose, T-bolt with spring, service option

1шт.

42

L127865

CLAMP

- hose, T-bolt with spring, service option

3шт.

H424101

HOSE,7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

- Bulk 7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

1шт.
