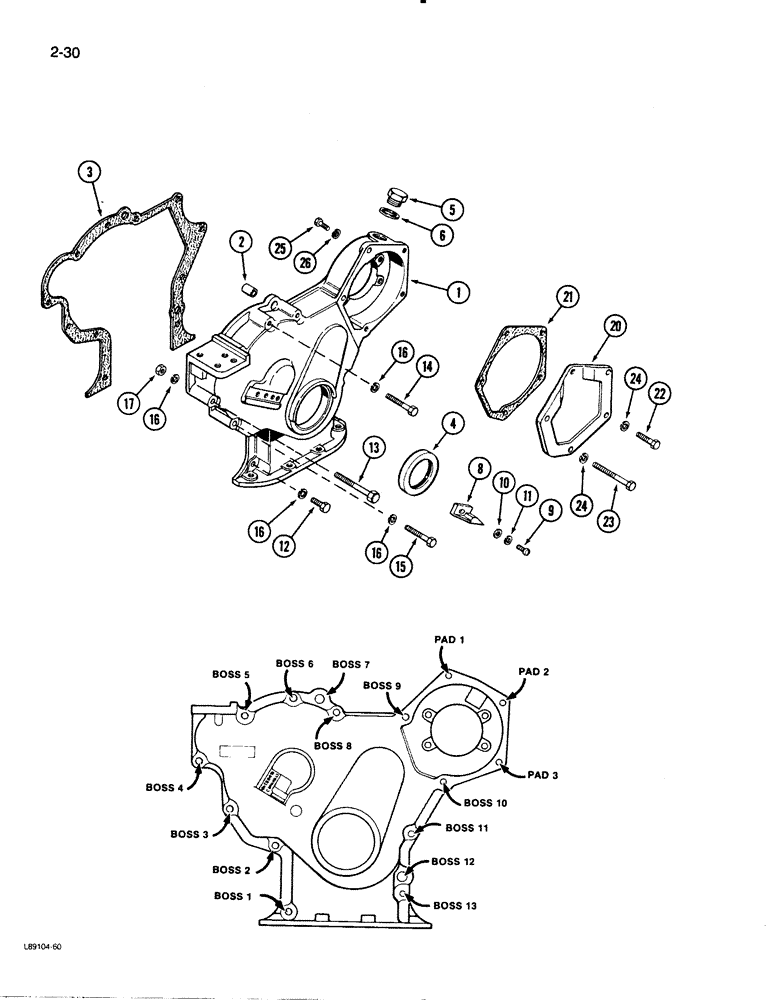

Запчасти Case W30 (2-30) - TIMING GEAR COVER, 504BDT ENGINE (02) - ENGINE

1

A166142

COVER

ASSEMBLY - timing gears

1шт.

2

A58611

PIN

DOWEL - cover, locating, 3/8 x 5/8 x 1 inch (Boss 7 and 12)

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - plug, nylon, 1 x 1-1/4 x 1/16 inch

1шт.

8

A63911

INDICATOR

POINTER - timing

1шт.

9

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- pointer, slotted head, No. 12-24 x 3/4 inch

1шт.

10

195-16

WASHER,#12

- flat, 1/4 x 9/16 x 1/16 inch

1шт.

11

192-108

LOCK WASHER,#12

WASHER - lock, No. 12

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover (Boss 1,2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover, hex, 3/8 NC x 3-1/2 inch (Boss 4 and 6)

2шт.

14

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover, hex, 3/8 NC x 2-1/2 inch (Boss 6 and 8)

2шт.

15

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover, hex, 3/8 NC x 2-1/2 inch (Boss 3)

1шт.

16

92-6

LOCK WASHER,3/8"

9шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

2шт.

20

A61053

COVER

- injection pump gears

1шт.

21

A58615

GASKET

- injection pump gear cover

1шт.

22

A151921

BOLT

- cover, hex, drilled, 3/8 NC x 1-1/4 inch (Pad 2 and 3)

2шт.

23

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover, hex, 3/8 NC x 3-1/2 inch (Boss 9 and 10)

2шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover (Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.
