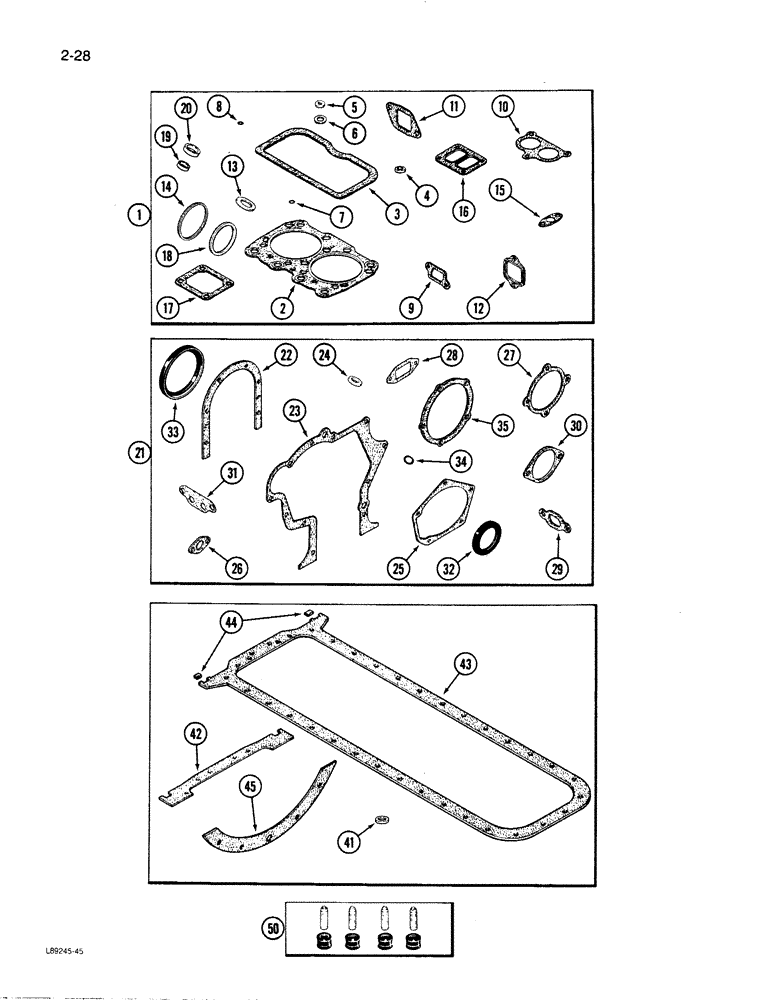

Запчасти Case W30 (2-28) - ENGINE GASKET KITS, 504BDT ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A157300

GASKET

KIT - valve grind (See Note)

1шт.

2

A138397

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

3шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover

3шт.

4

A142098

GROMMET

GASKET - valve cover studs

6шт.

5

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

9

A166147

GASKET

- water manifold

3шт.

10

A166148

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58895

GASKET

- exhaust manifold

6шт.

13

A76640

GASKET

- injection nozzle

6шт.

14

A138817

RING,2.64mm Thk

SEAL - turbocharger

1шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

2шт.

17

A58910

GASKET

- air intake elbow

1шт.

18

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

19

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injection nozzle

6шт.

20

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle

6шт.

21

A44075

GASKET KIT

KIT - cylinder block (See Note)

1шт.

22

A32830

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

23

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

24

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block kit

1шт.

25

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

26

A58617

GASKET

- (Not used this application), cylinder block kit

1шт.

27

A58646

GASKET

- water pump body, cylinder block kit

1шт.

28

A58649

GASKET

- water pump body to block, cylinder kit

1шт.

29

A58670

GASKET

- oil cooler water opening, cylinder block kit

1шт.

30

A58680

OIL PAN GASKET SET

- (Not used this application), cylinder block kit

1шт.

31

A58756

OIL PAN GASKET SET

- (Not used this application), cylinder block kit

1шт.

32

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft, front, cylinder block kit

1шт.

33

A62050

OIL SEAL

- oil, crankshaft, rear, cylinder block kit

1шт.

34

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base and oil pump, cylinder block kit

3шт.

35

A76656

GASKET

- (Not used this application), cylinder block kit

1шт.

A152479

GASKET KIT

KIT - oil pan (See Note)

1шт.

41

A27968

RING

- oil pan drain plug, kit

1шт.

42

A150689

GASKET

- flywheel housing, oil pan kit

1шт.

43

A150688

GASKET

- oil pan, kit

1шт.

44

A150690

OIL PAN GASKET SET

- oil pan corners, kit

2шт.

46

A57966

GASKET

- torque tube to oil pan, kit

1шт.

A152424

GASKET

KIT - oil pan seal plate (Used when tractor is split but oil pan is not removed)(Includes Ref 42, 44 and 45), kit

1шт.

50

M20614

SEAL KIT

- valve seat (Includes 4 seals and installation tool), oil pan

3шт.
