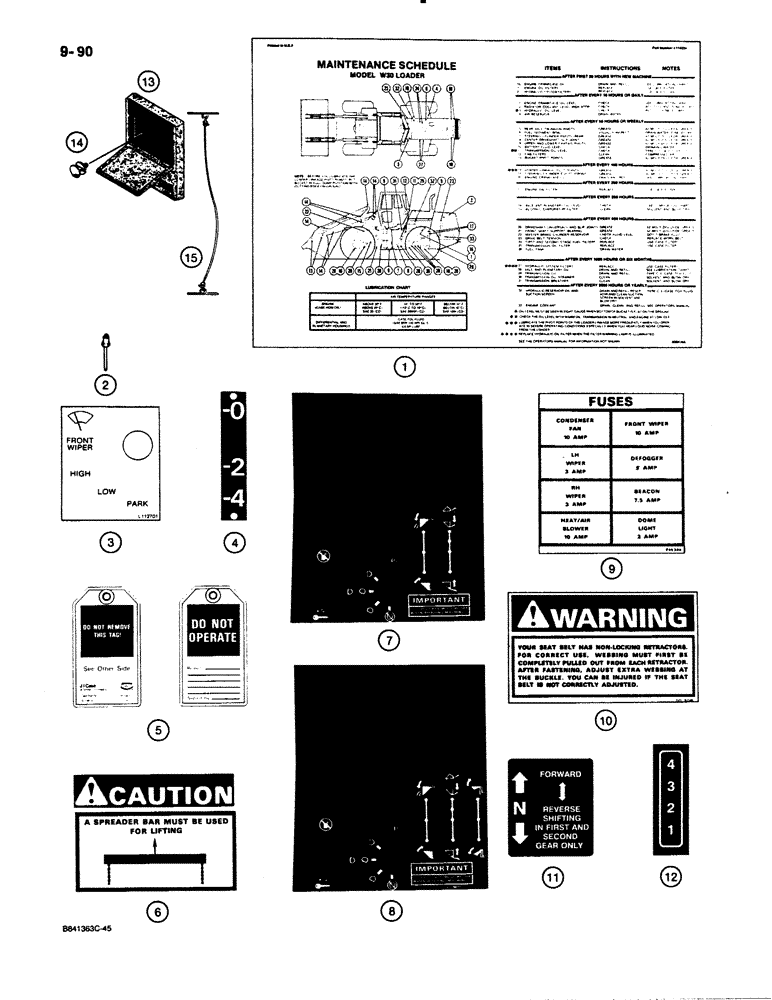

Запчасти Case W30 (9-90) - DECALS (09) - CHASSIS/ATTACHMENTS

1

L114224

BOARD

DECAL - maintenance chart, used on models with Allison transmission

1шт.

1a

L124309

BOARD

DECAL - maintenance chart, used on models with ZF transmission, not shown

1шт.

2

151-525

RIVET,Pop, 1/8" x .275"

- pop

4шт.

3

L112701

DECAL

- front wiper

1шт.

4

L114181

DECAL

- clam bucket

1шт.

5

321-4614

TAG

- do not operate

1шт.

6

321-3574

DECAL

- spreader bar

2шт.

7

L109833

DECAL

- console, two spool dual lever control, used on models with Allison and ZF transmissions

1шт.

7a

L124624

DECAL

- console, two spool single lever control, used on models with ZF transmission only, not shown

1шт.

8

L109834

DECAL

- console, two spool dual lever control plus one spool single lever control, used on models with Allison and ZF transmissions

1шт.

8a

L124625

DECAL

- console, two spool single lever control plus one spool single lever control, used on models with ZF transmission only

1шт.

9

F45344

DECAL

- fuses in cab

1шт.

10

321-6746

DECAL

- non-locking seat belt

1шт.

11

S301016

DECAL

- forward and reverse shifting, used on models with ZF transmissio

1шт.

12

S301017

DECAL

- speed range, used on models with ZF transmission

1шт.

13

A177376

BOX

- operators manual, attaches to loader control tower

1шт.

14

A162364

FASTENER

- special, operators manual box

3шт.

15

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.
