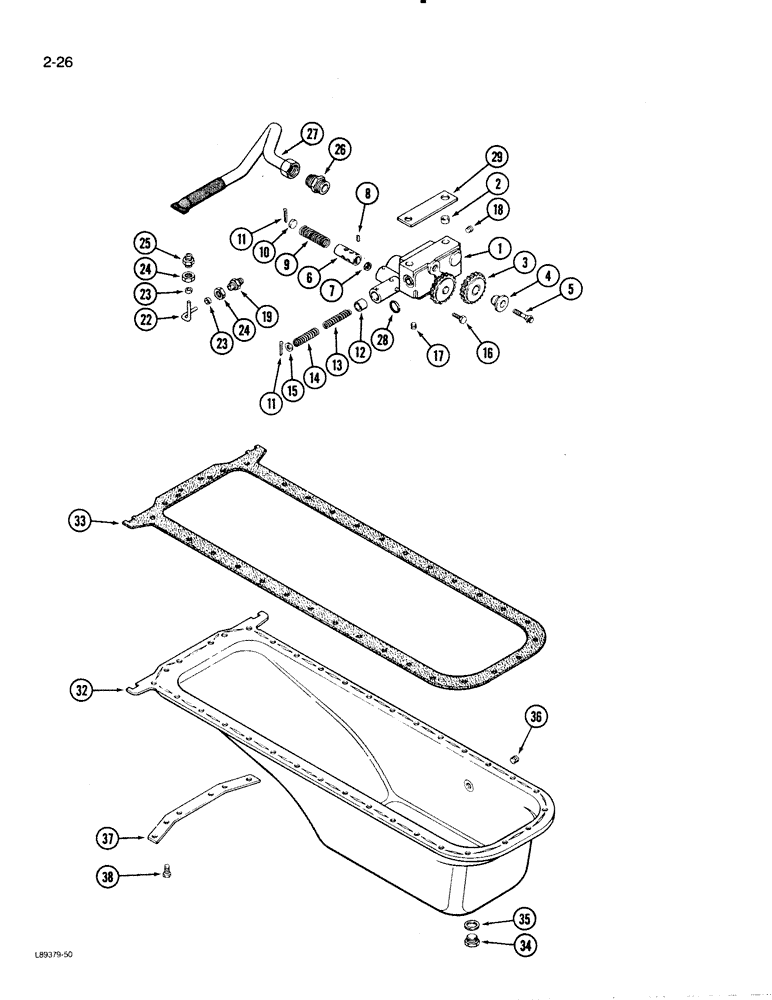

Запчасти Case W30 (2-26) - OIL PUMP, 504BDT ENGINE (02) - ENGINE

1

A152998

PUMP

ASSEMBLY - oil

1шт.

2

A58915

SLEEVE

- oil pump body

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - idler

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - shaft retaining

1шт.

6

A75286

VALVE

ASSEMBLY - relief

1шт.

7

41-1012

PLUG,Cup, 3/4"

1шт.

8

138-2063

PIN,3/32" x 1", Coiled

1шт.

9

A63949

SPRING

- relief valve, 2-7/8 inch free length

1шт.

10

41-1016

PLUG,Cup, 1"

- relief valve, cup, 1 inch

1шт.

11

132-34

COTTER PIN,3/32" x 1 3/4"

PIN - cotter, 3/32 x 1-3/32 inch

2шт.

12

A76152

VALVE

- safety, pressure relief

1шт.

13

A76154

SPRING

- inner, 1/2 ID x 11/16 OD x 3-1/8 inch free length

1шт.

14

A76153

SPRING

- outer, 11/16 ID x 7/8 OD x 2-7/16 inch free length

1шт.

15

195-25

WASHER,3/8"

- flat, 7/16 x 13/16 x 1/16 inch

1шт.

16

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

Cover to body Hex, 5/16"-18 x 1", G8, Full Thd

4шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- cover, socket head, 1/16inch PT

3шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

- body, socket head, 3/8inch PT

1шт.

19

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - oil tube (In pump body)

1шт.

22

A75290

TUBE

- oil, Serial Range: (Pump-block)

1шт.

23

222-153

SLEEVE,1/4" Tube

2шт.

24

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

2шт.

25

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - oil tube (In block)

1шт.

26

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

27

A153703

TUBE

ASSEMBLY - oil suction

1шт.

28

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block, 15/16 x 1-1/8 x 1/8 inch

1шт.

29

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

32

A148760

PAN, ENGINE OIL

PAN - oil

1шт.

A152479

GASKET KIT

KIT - gasket, oil pan (See Note on Figure 2-28)

1шт.

33

REF

INSTRUCTION

GASKET - oil pan (See Figure 2-28)

1шт.

34

A34826

PLUG,7/8" - 18 ORB

- drain, oil, pan

1шт.

35

A27968

RING

- drain plug, oil pan

1шт.

36

221-664

PLUG,Hex Hd, 1/2"-14

- drain, air, hex, 1/2 inch PT, oil pan

1шт.

37

A58932

STRAP

- oil pan reinforcement

1шт.

38

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - oil pan, with lockwasher, hex, 3/8 NC x 7/8 inch

34шт.
