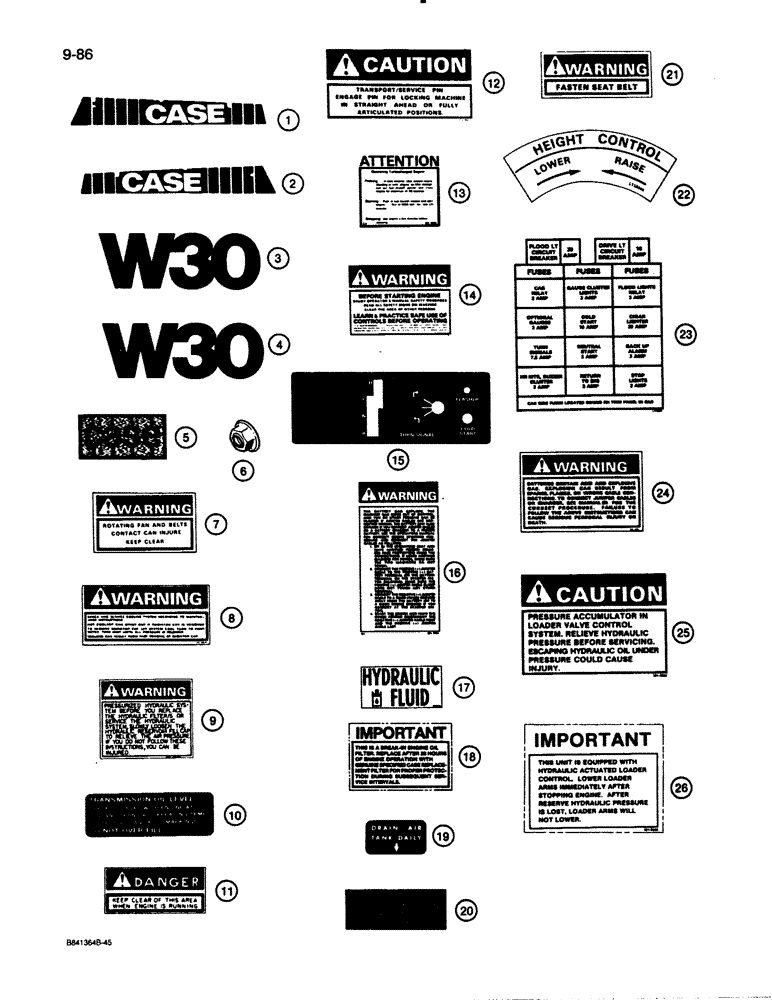

Запчасти Case W30 (9-86) - DECALS, FOR TRACTORS WITH ALLISON TRANSMISSION (09) - CHASSIS/ATTACHMENTS

L36250

KIT

- decal, used on models with Allison transmission

1шт.

1

L116736

DECAL

- Case, left-hand, hood

1шт.

2

L116735

DECAL

- Case, right-hand, hood

1шт.

3

L111886

DECAL

- W30, rear

2шт.

4

L111887

DECAL

- W30, front

1шт.

5

321-4739

EMBLEM

- Case, metal

1шт.

6

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - clip

2шт.

7

321-3596

DECAL

- Warning, fan

2шт.

8

321-6672

DECAL

- Warning, pressure cap

1шт.

9

321-6666

DECAL

- Warning, pressurized hydraulic system

2шт.

10

321-1980

DECAL

- transmission oil level

1шт.

11

321-3205

DECAL

- Danger, keep clear of this area

2шт.

12

321-3927

DECAL

- Caution, transport

1шт.

13

321-2605

DECAL

- Attention, operating turbocharged engine

1шт.

14

321-3705

DECAL

- Warning, before starting engine

1шт.

15

L108242

DECAL

- transmission shift bracket

1шт.

16

321-6718

DECAL

- jump start

1шт.

17

321-6376

DECAL

- hydraulic fluid

1шт.

18

321-3863

DECAL

- oil filter

2шт.

19

321-1077

DECAL

- air tank drain

1шт.

20

L117520

DECAL

- hydraulic oil level

1шт.

21

321-3060

DECAL

- seat belt

1шт.

22

L112444

DECAL

- height control

1шт.

23

L116225

DECAL

- fuses

1шт.

24

321-6714

DECAL

- jump start

1шт.

25

321-5852

DECAL

- loader valve control

1шт.

26

321-5853

DECAL

- Hydraulic valve

1шт.
