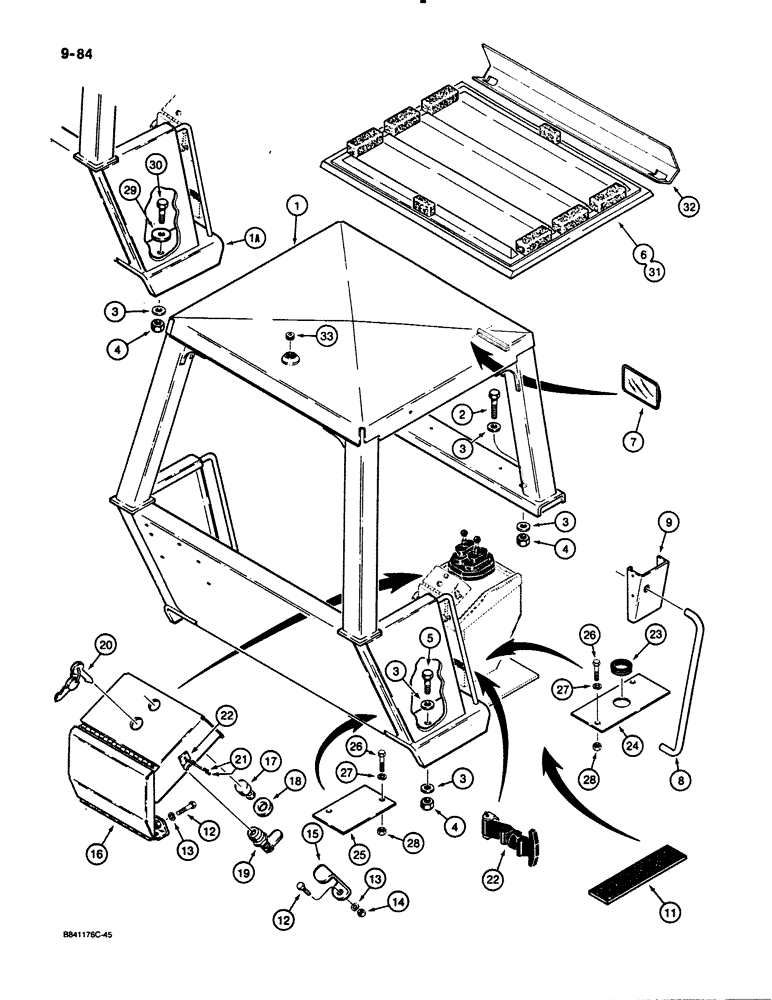

Запчасти Case W30 (9-84) - CANOPY (09) - CHASSIS/ATTACHMENTS

1

L115081

CANOPY - ROPS, no longer available, order L118291, item 1A

1шт.

1a

L118291

ROPS

CANOPY - ROPS, order from machinery price list

1шт.

2

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

- hex head, 1" - 8 NC x 4"

2шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

6-8шт.

4

131-199

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1" - 8 NC

4шт.

5

26-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

- hex head, 1" - 8 NC x 3", used with L115081 canopy only

2шт.

6

L114575

ROOF

HEADLINER - canopy, used with L115081 canopy, no longer available, order L123407 headliner and (2) L124297 retainers below

1шт.

7

L74714

MIRROR

AND HARDWARE - rear view

1шт.

8

L109249

HANDLE

HANDRAIL -, Serial Range: welded-canopy

2шт.

9

L109787

SUPPORT

MOUNT - instrument panel, right-hand, canopy

1шт.

10

L109788

SUPPORT

MOUNT - instrument panel, left-hand, canopy, not shown

1шт.

11

D55216

PAD,2" x 9"

PAD - nonskid

3шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

14

25-104

NUT,1/4"-20, G5

1шт.

15

L61208

LATCH

- console

1шт.

16

L61242

COVER

- console

1шт.

17

L60224

BUMPER

- cover

2шт.

18

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

L114879

LOCK ASSY

LOCK - includes keys

1шт.

19

NSS

NOT SOLD SEPARAT

LOCK - less keys

1шт.

20

D83205

KEY

- set of two

1шт.

21

151-526

RIVET,Pop, 1/8" x .337"

6шт.

22

L55329

CATCH

LATCH - cover

2шт.

23

D73137

GROMMET

- wire harness

1шт.

24

L116726

PLATE

- cover

1шт.

25

L116727

PLATE

- cover

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

29

L107918

WASHER,26.2mm ID x 70mm OD x 12.7mm Thk

- special, used with L118291 canopy only

2шт.

30

26-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

- hex head, 1" - 8 NC x 3-1/2", used with L118291 canopy only

2шт.

31

L124307

ROOF

HEADLINER - canopy, used with L118291 canopy

1шт.

32

L124297

RETAINER

- headliner, used with L118291 canopy

2шт.

33

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket, 1 inch PT, if used

1шт.
