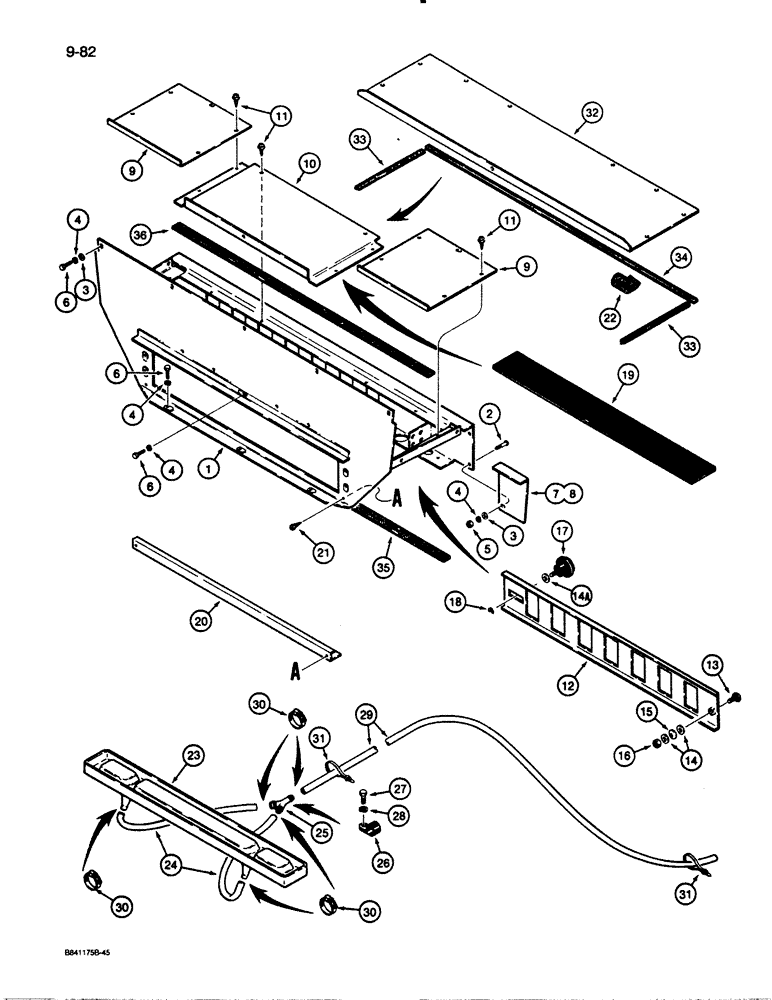

Запчасти Case W30 (9-82) - CAB VENTILATION COMPARTMENT, AND AIR CONDITIONING DRAIN TUBES (09) - CHASSIS/ATTACHMENTS

1

F96788

DUCT

PLENUM - heating and air conditioning

1шт.

2

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex washer head, 1/4" - 20 NC x 3/4", plated

4шт.

3

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

13шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

13-16шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

6

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex washer head, 1/4" - 20 NC x 3/4", plated

9шт.

7

F45309

PLATE

- seal, left-hand

1шт.

8

F45310

PLATE

- seal, right-hand

1шт.

9

F45069

COVER

- plenum, sides, if used

2шт.

10

F45070

COVER

- plenum, center, if used

1шт.

11

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, Phillips head, with washer, No. 10 - 16 x 3/4"

8-12шт.

12

F96827

COVER ASSY

PLATE - sliding, air circulation

1шт.

13

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5

1шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

14a

F64866

WASHER - special, plastic

1шт.

15

D71411

WASHER

- bowed

1шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

17

F64253

KNOB

- sliding plate

1шт.

18

T39518

SNAP RING,#25, Ext

Ring, Snap, , knob #25, Ext

1шт.

19

F63671

SEAL

- rubber, top of evaporator core, adheres to top cover plates, used on models with heating and air conditioning only

1шт.

20

F45043

SEAL

BRACKET - heater core seal, used on models without air conditioning only, if used

1шт.

21

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, slotted hex washer head, No. 10 - 16 x 1/2", plated, used with item 20 only

2шт.

22

345-45

TAPE

- duct, 2" (51 mm) x 20 ft (7 m) long, covers slots in cab floor plate on models with air conditioning drain pan, if used

1шт.

23

F64529

PAN

- condensation drain, air conditioning

1шт.

24

L110305

TUBE,12.7 mm OD x 450 mm L

- drain, 17-3/4" (450 mm) long, cut from S118404 bulk tube, see below

2шт.

25

L109362

CONNECTOR, ELEC

CONNECTOR - drain tubes

1шт.

26

49845

CLAMP

- drain tube connector

1шт.

27

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

L110304

TUBE,12.7 mm OD x 1600 mm L

- drain, 63" (1600 mm) long, cut from S118404 bulk tube, see below

1шт.

30

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, adjustable, drain hose

5шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

32

R53889

COVER

- plenum, one piece, if used

1шт.

33

R54171

FOAM

SEAL - foam, cover end

2шт.

34

R54172

FOAM

SEAL - foam, cover

1шт.

35

R54173

FOAM

SEAL - foam, plenum base

1шт.

36

R54174

FOAM

SEAL - foam, plenum top edge

1шт.

S118404

HOSE,600.00", SAE J844

- Tube, Bulk 600.00", SAE J844

1шт.
