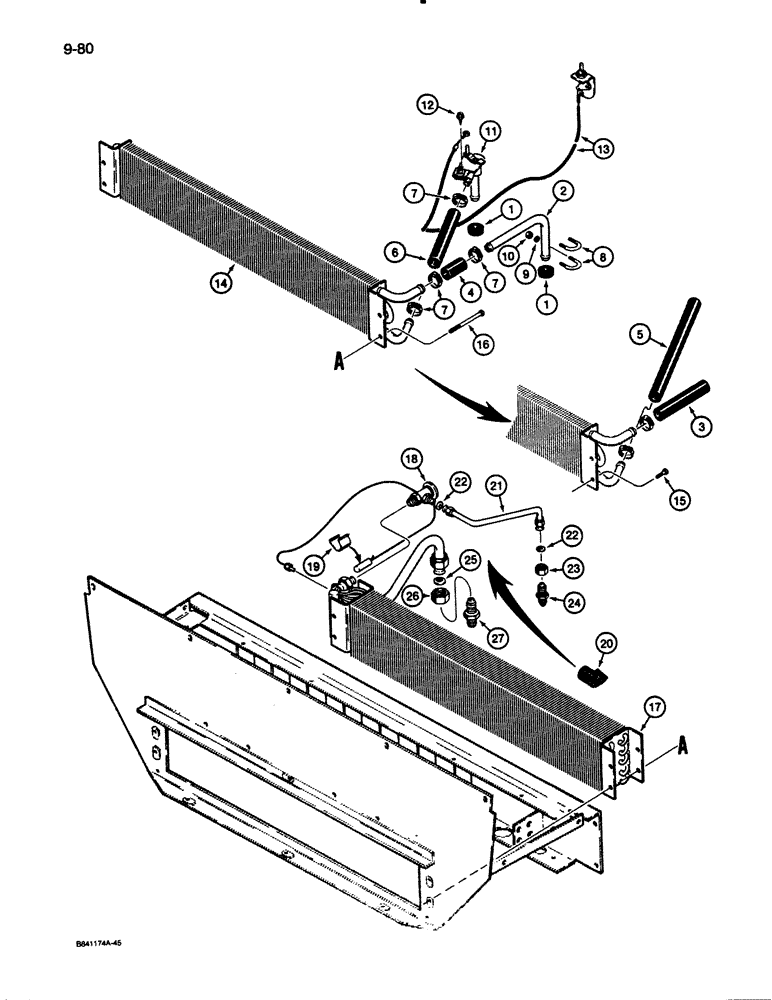

Запчасти Case W30 (9-80) - HEATING AND AIR CONDITIONING CORES AND CONNECTIONS (09) - CHASSIS/ATTACHMENTS

1

A37563

GROMMET

- heating tubes at cab floor plate

2шт.

2

R53523

HEATER TUBE,15.88 mm OD x 192, 115 mm L

TUBE - heating return, 5/8" OD

1шт.

3

F45139

HEATER HOSE

HOSE - heater core, upper, 5-5/16" (135 mm) long, cut from A42610 bulk, used on models with heating only, if used

1шт.

4

F64008

HEATER HOSE,51.00 mm

Heater Core, Upper, Cut to Length, Used on Models With Heating and Air Conditioning, If Used 51.00 mm

1шт.

5

F45227

HOSE,15.70 mm ID x 250.00 mm, SAE 20R3 CLASS R

- heater core, lower, cut from A42610 bulk, used on models with heating only, if used 15.70 mm ID x 250.00 mm, SAE 20R3 CLASS R

1шт.

6

F45139

HEATER HOSE

HOSE - heater core, lower, 5-5/16" (135 mm) long, cut from A42610 bulk, used on models with heating and air conditioning, if used

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

4шт.

8

L78949

U-BOLT

- heating return tube

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

R54333

VALVE

FLOW CONTROL VALVE - heating, replaces F63865 flow control valve

1шт.

12

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, slotted hex washer head, No. 10 - 16 x 1/2", plated

1шт.

13

L108188

CABLE

- heating control

1шт.

14

L106940

RADIATOR

CORE - heater

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated, Used on models with heating only, if used

4шт.

16

113-50

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

- hex head, 1/4" - 20 NC x 3-1/2", plated, used on models with heating and air conditioning, if used

4шт.

17

L106912

EVAPORATOR

CORE - evaporator, air conditioning

1шт.

18

F64389

VALVE

- expansion, air conditioning

1шт.

19

98157C1

CLAMP

- expansion valve sensor

1шт.

20

A42902

SEALING STRIP

TAPE - cork, insulating, bulk roll, 30 ft (914 cm) long

1шт.

21

L107292

TUBE,0.375" OD

- from expansion valve

1шт.

22

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

23

129-167

JAM NUT,Jam, 5/8"-18, G5

JAM NUT - hex, 5/8" - 18 NF, plated

1шт.

24

L107840

FITTING

ADAPTER - bulkhead, expansion valve tube

1шт.

25

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8" tube OD

1шт.

26

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

27

L107841

FITTING

ADAPTER - bulkhead, evaporator core tube

1шт.

A42610

LARGE HOSE

HOSE - bulk, 5/8" (16 mm) ID x 50 ft (15.2 m) long

1шт.
