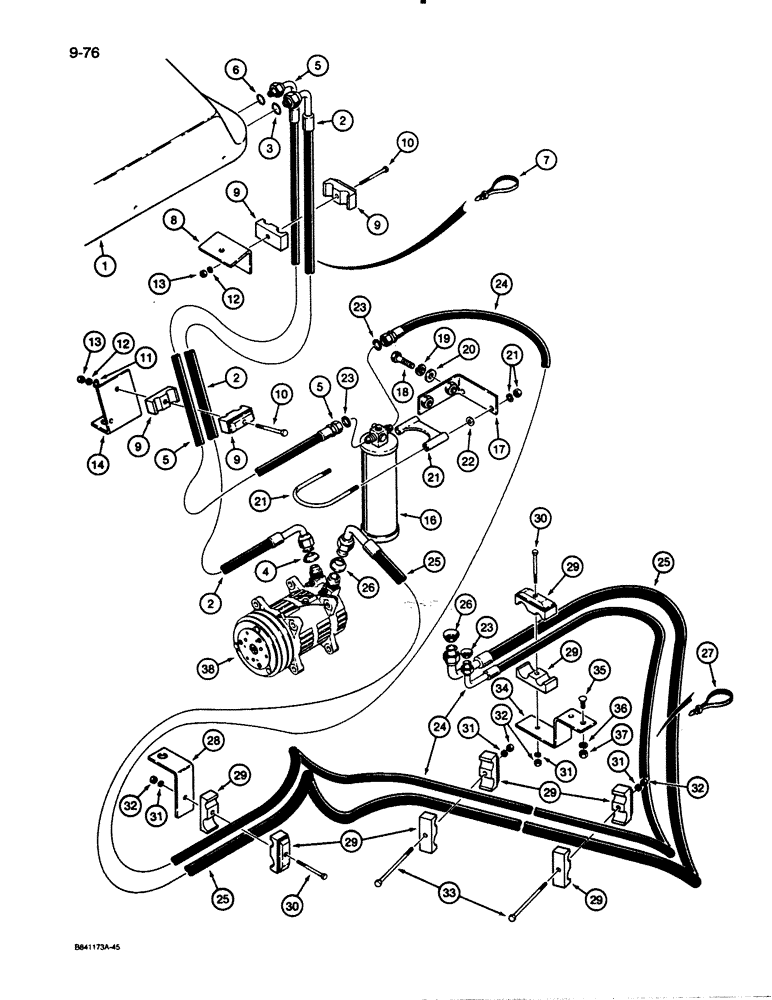

Запчасти Case W30 (9-76) - CONDENSER AND COMPRESSOR TO EVAPORATOR CORE, USED BEFORE PIN 9159529 (09) - CHASSIS/ATTACHMENTS

1

L114614

CONDENSER

- air conditioning, parts list Figure 9-68, for mounting parts see Figure 9-66, no longer available, order L115234 condenser, parts list Figure 9-70 and L117006 cable, item 24 on Figure 4-36

1шт.

2

L114416

HOSE ASSY.

HOSE -, Serial Range: condenser-compressor

1шт.

3

N13633

O-RING,7/16" ID x 1/16" Width

- hose, at condenser

1шт.

4

222-994

GASKET,1/2 Tube, Fl, Copper

- copper, 1/2" tube OD, at compressor

1шт.

5

L114414

HOSE

-, Serial Range: condenser-receiver-drier

1шт.

6

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- hose, at condenser

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

8

L114417

BRACKET

- hose clamp, uses hood hardware

1шт.

9

L115095

CLAMP

- double, includes both plastic halves and top steel plate

2шт.

10

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

11

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

L114419

BRACKET

- hose clamp, beside radiator, uses shroud mounting hardware

1шт.

15

RESERVED

1шт.

16

L109036

EVAPORATOR

RECEIVER-DRIER - includes relief valve

1шт.

17

L115065

BRACKET

- receiver-drier mounting

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

95-8

WASHER,1/2"

flat 1/2"

2шт.

21

L72884

CLAMP

- receiver-drier, includes lock washer and nut

1шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

23

222-993

GASKET,3/8 Tube, Fl, Copper

3шт.

24

L114415

HOSE

- receiver-drier to evaporator core in cab

1шт.

25

L107303

HOSE ASSY.

HOSE - compressor to evaporator core in cab

1шт.

26

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8" tube OD

2шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

28

L108142

BRACKET

- hose clamp, uses hydraulic tank mounting hardware

1шт.

29

L115096

CLAMP

- double, includes both plastic halves and top steel plate

4шт.

30

26269R1

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

- hex head, 5/16" - 18 NC x 2-3/4"

2шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

32

9635082

NUT,5/16" - 18, Gr 5

4шт.

33

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex head, 5/16" - 18 NC x 4-1/2", plated

2шт.

34

L109877

PLATE

BRACKET - hose clamp, mounts to cab floor plate

1шт.

35

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

38

L114766

COMPRESSOR

- parts list on Figure 9-74, mounting parts on Figure 9-72

1шт.
