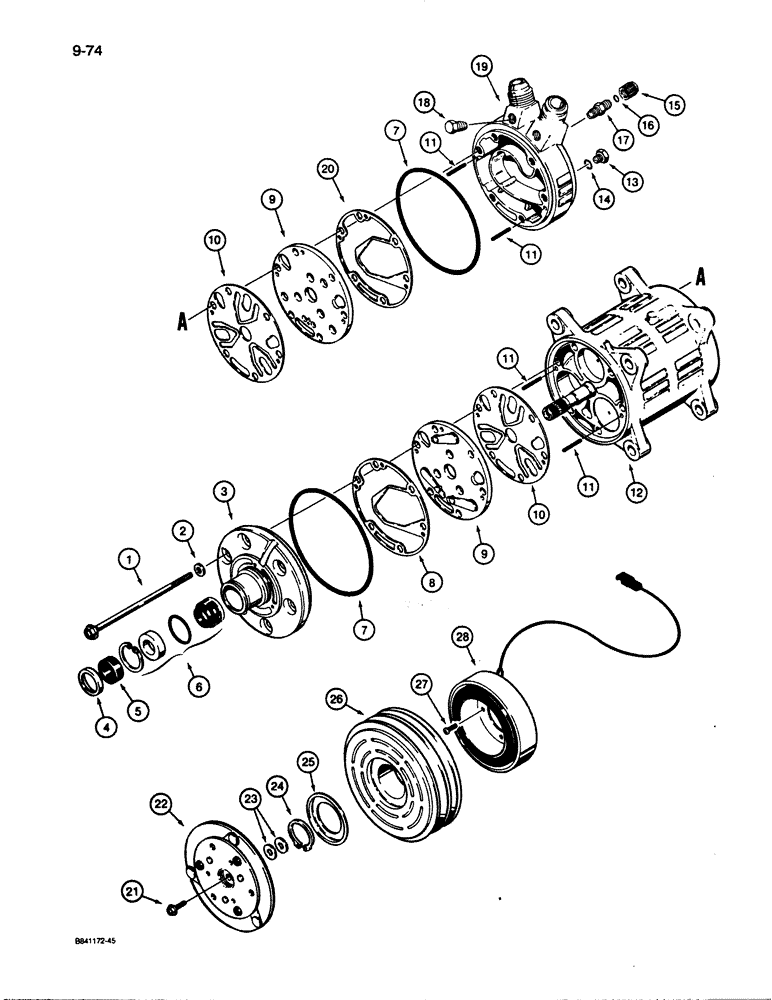

Запчасти Case W30 (9-74) - AIR CONDITIONER COMPRESSOR (09) - CHASSIS/ATTACHMENTS

L114766

COMPRESSOR

ASSEMBLY - air conditioning

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - cylinder head, special

6шт.

2

NSS

NOT SOLD SEPARAT

GASKET - bolt

6шт.

3

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

4

N9672

RETAINER

- gasket

1шт.

5

N9671

FELT

GASKET - felt

1шт.

6

N9670

SEAL ASSY.

SEAL KIT - shaft

1шт.

7

N9666

O-RING

- cover

2шт.

8

N9665

GASKET

- front cover

1шт.

9

N9667

PLATE ASSY.

PLATE - valve

2шт.

10

N9668

VALVE

- suction

2шт.

11

NSS

NOT SOLD SEPARAT

PIN - compressor

4шт.

12

NSS

NOT SOLD SEPARAT

BODY - compressor

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - oil

1шт.

14

N9673

O-RING

- plug

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - valve

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - cap

2шт.

17

NSS

NOT SOLD SEPARAT

VALVE - relief

2шт.

18

217-75

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF, Brass

PLUG - square head, 1/8" NPT

2шт.

19

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

20

N9669

GASKET

- rear cover

1шт.

N9674

CLUTCH

ASSEMBLY - compressor

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT - armature

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - clutch assembly

1шт.

23

N9676

SHIM

- armature

1шт.

24

NSS

NOT SOLD SEPARAT

SNAP RING - pulley

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - pulley

1шт.

26

NSS

NOT SOLD SEPARAT

PULLEY - clutch

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - coil

1шт.

28

N9675

COIL

- clutch assembly

1шт.
