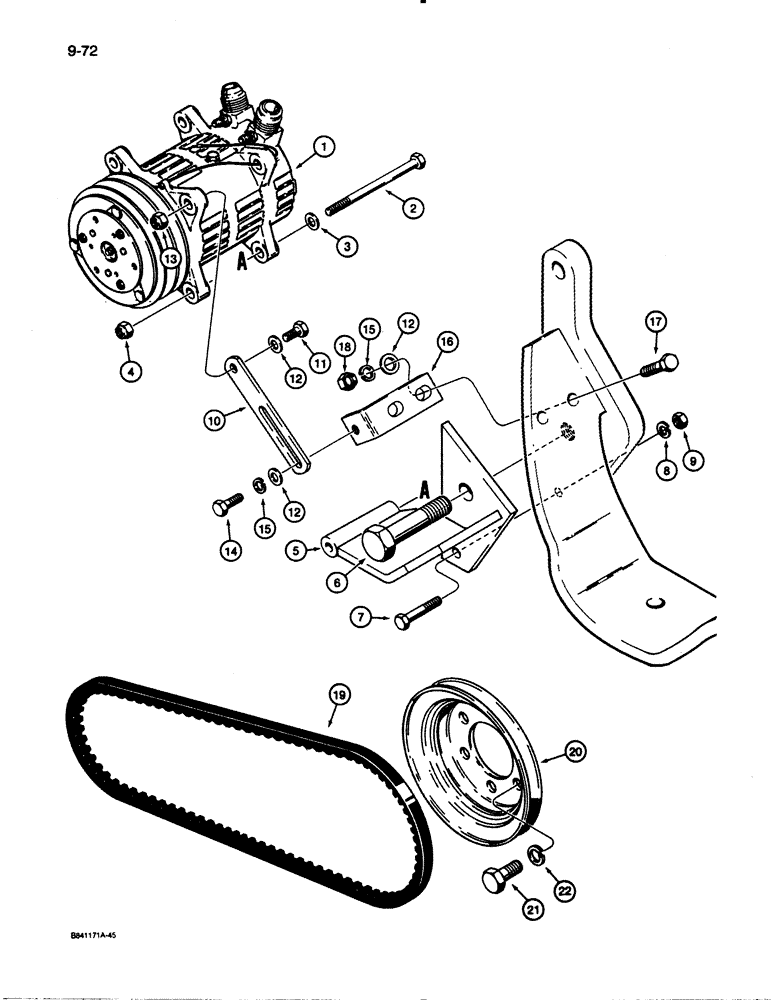

Запчасти Case W30 (9-72) - AIR CONDITIONING COMPRESSOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

L114766

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-74

1шт.

2

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

4

131-94

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

5

L118170

SUPPORT

BRACKET - compressor mounting

1шт.

6

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

7

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

K207316

STRAP

- compressor adjusting

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

13

131-94

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

3шт.

16

L118277

BRACKET

- compressor adjusting strap

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

L71058

BELT,.050" W x 47.00" L

Compressor drive .050" W x 47.00" L

1шт.

20

A161843

PULLEY

- compressor drive

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

22

92-8

LOCK WASHER,1/2"

6шт.
