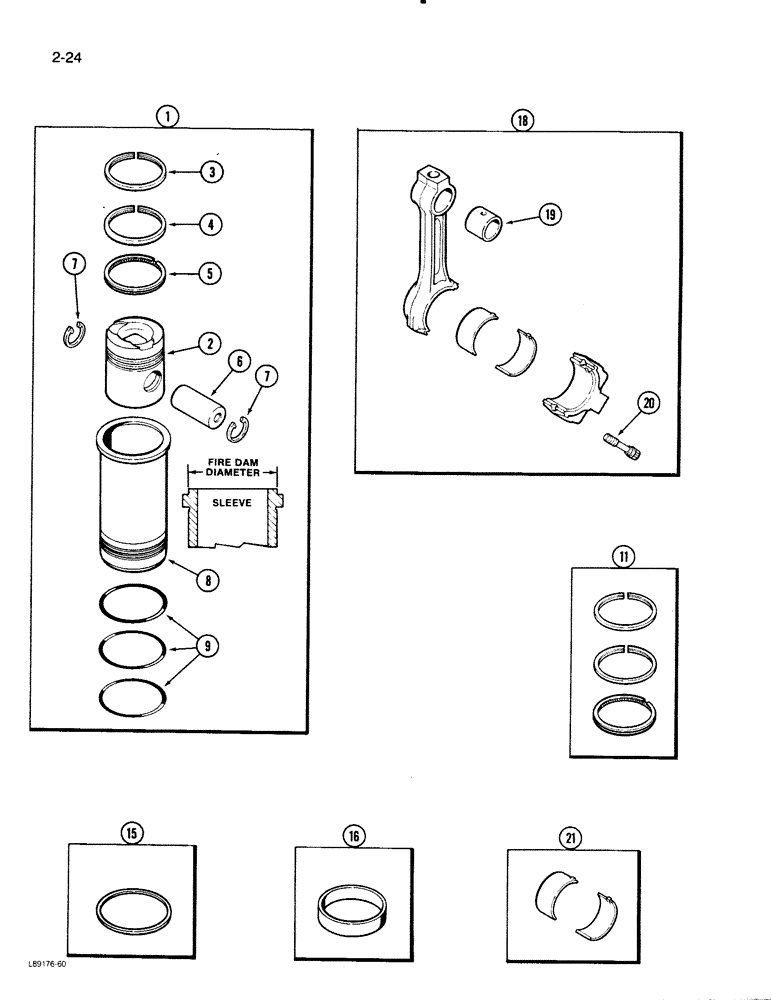

Запчасти Case W30 (2-24) - PISTONS AND SLEEVES, 504BDT ENGINE (02) - ENGINE

1

A151067

PISTON

AND SLEEVE ASSEMBLY - engine (Set of 2)

3шт.

2

A152485

PISTON

- cylinder, 4-5/8 inch bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref 11)

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

- piston

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston, three groove

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

- sleeve

6шт.

11

A44054

RING

KIT - piston re-ring (Set of 1)

6шт.

15

A148553

SHIM

- sleeve, 0.010 inch (Repairs Only)

1шт.

15

A148554

SHIM

- sleeve, 0.005 inch (Repairs Only)

1шт.

16

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

- sleeve (Repairs Only)

1шт.

18

A65032

ROD

ASSEMBLY - connecting, new

6шт.

18

AR65032

REMAN-CONNECTING ROD

Rod Assembly - connecting, remanufactured

6шт.

18

AC65032

CORE-ROD CONNECTING

Return Part Number - use this part number to return connecting rod for credit

6шт.

19

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

- piston pin, connecting rods

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap

2шт.

21

A41758

BEARING LINER

INSERT - connecting rod bearing (Standard)(Set of 2)

6шт.

21

A41899

BEARING LINER

INSERT - connecting rod bearing, 0.002 inch undersize (Set of 2)

6шт.

21

A41900

BEARING LINER

INSERT - connecting rod bearing, 0.010 inch undersize (Set of 2)

6шт.

21

A41901

BEARING LINER

INSERT - connecting rod bearing, 0.020 inch undersize (Set of 2)

6шт.

21

A41902

BEARING LINER

INSERT - connecting rod bearing, 0.030 inch undersize (Set of 2)

6шт.
