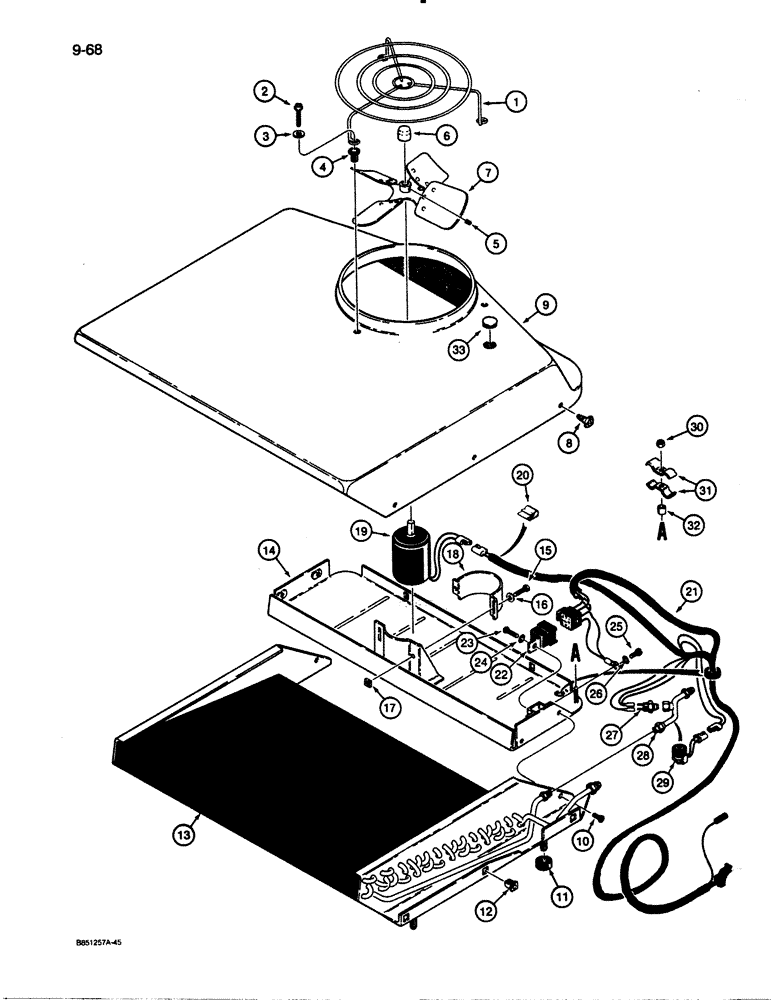

Запчасти Case W30 (9-68) - L114614 AIR CONDITIONING CONDENSER (09) - CHASSIS/ATTACHMENTS

L114614

CONDENSER

- air conditioner assembly, no longer available, order L115234 condenser, parts list Figure 9-70, and L117006 cable, see Figure 4-36, item 24

1шт.

1

NSS

NOT SOLD SEPARAT

GUARD - fan

1шт.

2

182-529

SCREW,Sl Pan Hd, #10 - 32 x 1 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1-1/2", plated

3шт.

3

195-513

WASHER,#10

- No. 10, plated

3шт.

4

N13336

FASTENER

- special, plastic push-in with threads

3шт.

5

178-413

SET SCREW,Hex Soc, #10-24 x 1/4"

- hex socket headless, No. 10 - 24 NC x 1/4", flat point

1шт.

6

NSS

NOT SOLD SEPARAT

CAP - fan shaft

1шт.

7

N9945

FAN

- condenser

1шт.

8

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval Phillips head, No. 10 x 3/4", plated

6шт.

9

NSS

NOT SOLD SEPARAT

COVER - condenser

1шт.

10

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex head, self-tapping, 1/4" - 20 NC x 1/2"

4шт.

11

N7911

BUMPER

SPACER - rubber

4шт.

12

131-648

SPRING NUT,Tinn, U, #10-24

- expansion, special, plastic push-in with prongs

6шт.

13

N9952

COIL

- condenser

1шт.

14

NSS

NOT SOLD SEPARAT

BASE - condenser

1шт.

15

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

16

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

17

131-852

SPRING NUT,Ret, 1/4"-20

1шт.

18

NSS

NOT SOLD SEPARAT

CLAMP - motor

1шт.

19

N9946

MOTOR

- 24 volt

1шт.

20

NSS

NOT SOLD SEPARAT

CLIP - harness, plastic stick-on

1шт.

21

N9947

HARNESS

- condenser

1шт.

22

N9948

RELAY

- condenser

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - relay

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - relay

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - ground wire

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - ground wire

1шт.

27

N9950

SWITCH

- low pressure

1шт.

28

N9949

TUBE

- condenser

1шт.

29

N9951

SENDER UNIT

SENDER - high temperature

1шт.

30

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER - 1/4" - 20 NC, plated

1шт.

31

NSS

NOT SOLD SEPARAT

CLAMP - tube

2шт.

32

D45998

SPACER

- clamp

1шт.

33

353-252

PLUG,1"

- button, 1"

1шт.
