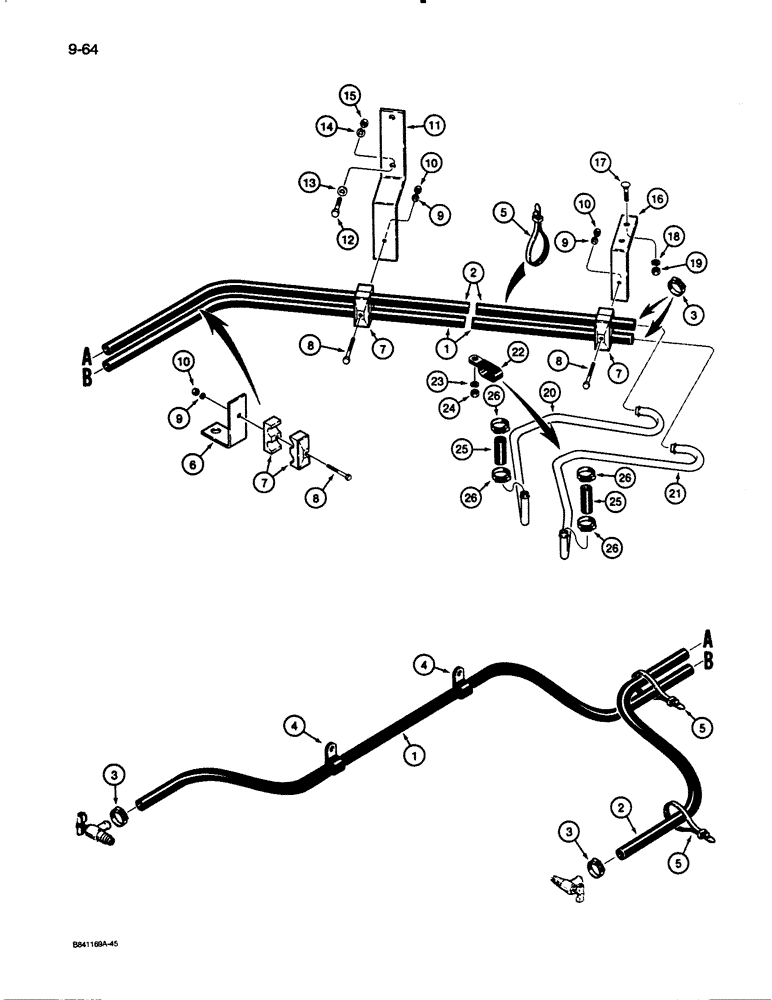

Запчасти Case W30 (9-64) - HEATING LINES (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HOSE - heating supply, from water pump shutoff valve, 111" (2819 mm) long, cut from A42610, see below

1шт.

2

REF

INSTRUCTION

HOSE - heating return, to shutoff valve on engine water manifold, 98" (2489 mm) long, cut from A42610, see below

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

Adjustable, heating hoses

4шт.

4

R21385

CLAMP

Supply hose, uses intake manifold hardware

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

3шт.

6

L108142

BRACKET

SPARE PART Heating hose clamps, uses hydraulic tank mounting hardware

1шт.

7

L107932

CLAMP

Double, includes both plastic halves and top steel plate

3шт.

8

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

10

9635082

NUT,5/16" - 18, Gr 5

3шт.

11

L108141

BRACKET

SPARE PART Hose clamps at cooler bypass valve (see cooler bypass circuit for additional hardware)

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

13

95-6

WASHER,3/8"

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

16

L108162

BRACKET

SPARE PART Hose clamps, mounts to cab floor plate

1шт.

17

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

20

L108150

HEATER TUBE,15.88 mm OD

Heating return, upper position at clamps

1шт.

21

L108151

HEATER TUBE,15.88 mm OD

Heating supply, lower position at clamps

1шт.

22

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

Heating tubes to floor plate

1шт.

23

92-8

LOCK WASHER,1/2"

1шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

25

REF

INSTRUCTION

HOSE - thru floor plate, 2" (51 mm) long, cut from A42610, see below

2шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

Adjustable

4шт.

A42610

LARGE HOSE

HOSE,LARGE Bulk roll, 5/8" (16 mm) ID x 50 ft (15.2 m) long

1шт.
