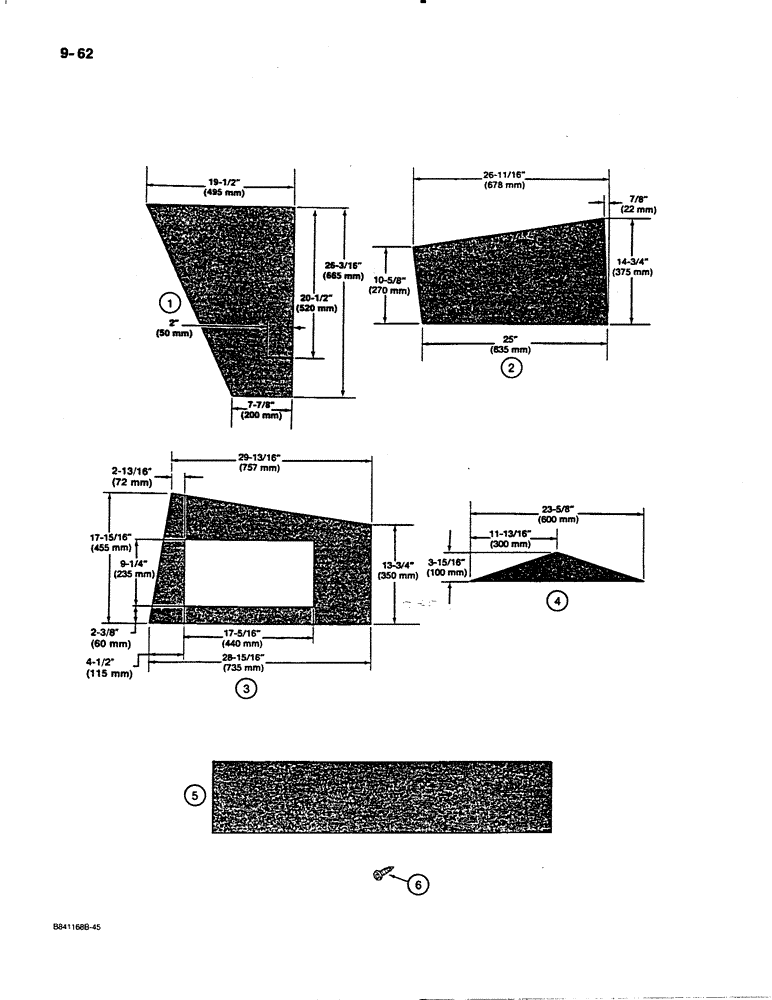

Запчасти Case W30 (9-62) - CAB NOISE REDUCTION AND ANTIRECIRCULATION PADS (09) - CHASSIS/ATTACHMENTS

1

F45130

PAD

Rear sides of cab

2шт.

2

REF

INSTRUCTION

PAD - below rear filters, cut from R30870

2шт.

3

REF

INSTRUCTION

PAD - around rear filters, cut from R30870

2шт.

4

REF

INSTRUCTION

PAD - cab blower mounting plate, below blower, cut from R30870

1шт.

5

L112310

PAD

Noise reduction, cab blower area

1шт.

6

L111437

SCREW

RETAINER - item 5 pad

7шт.

R30870

PAD

Bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.

345-44

ADHESIVE

For attaching pads to metal surfaces, spray can, 19-1/2 fluid ounces (577 ml), not shown

1шт.
