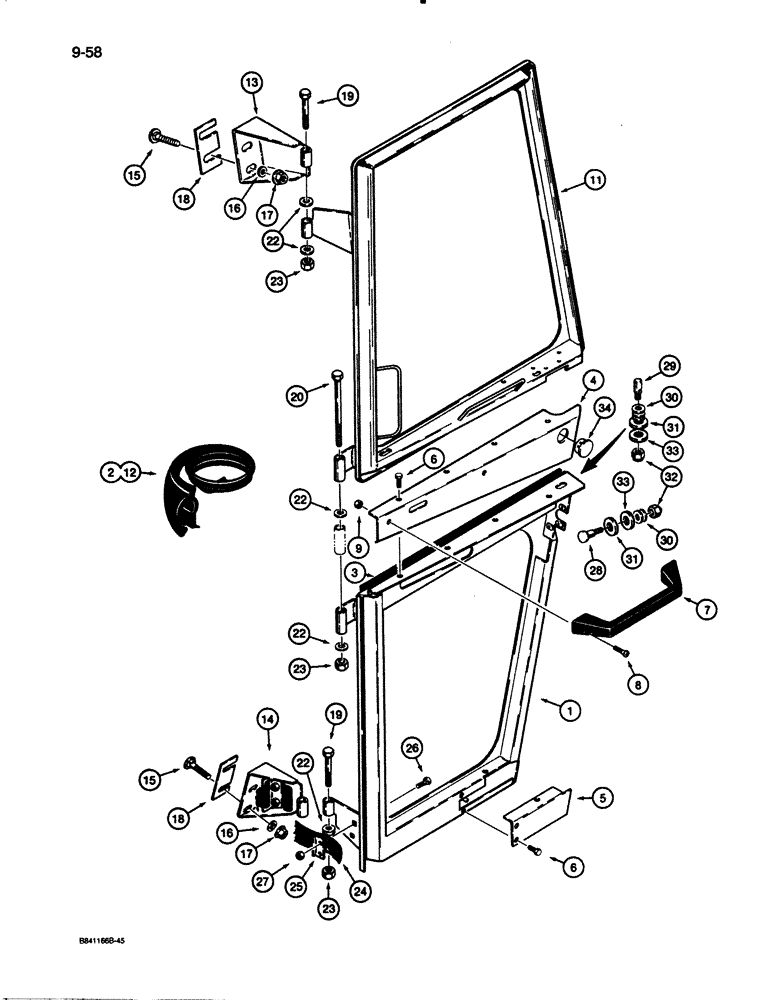

Запчасти Case W30 (9-58) - CAB DOOR AND WINDOW MOUNTING, (INSIDE OF LEFT-HAND DOOR AND WINDOW SHOWN) (09) - CHASSIS/ATTACHMENTS

1

F96908

FRAME

- door, lower, left-hand

1шт.

2

R54131

SEAL - left-hand door frame, 72" (1833 mm) long, cut from R54132 bulk, see item 12 below

1шт.

3

F45161

SEAL

- door frame to upper window, adhesive-backed

1шт.

4

F45033

COVER

- latch release rod, upper

1шт.

5

F96786

COVER

- door handle mechanism, lower

1шт.

6

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

7шт.

7

F64547

HANDLE

GRAB HANDLE - door, inner

1шт.

8

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - Phillips head, 1/4" - 20 NC x 3/4", plated

2шт.

9

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

10

F96910

DOOR SEAL

FRAME - window, right-hand, not shown

1шт.

11

F96909

FRAME

- window, left-hand

1шт.

12

R54132

SEAL

- window frame, 111" (2819 mm) long

2шт.

13

F45125

HINGE

- left-hand window, upper

1шт.

14

F45123

HINGE

- left-hand door, lower, and right-hand window, upper

2шт.

15

111-274

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 3/4", G5

- 5/16" - 18 NC x 1-3/4", grade 5, plated

6шт.

16

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

6шт.

17

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex, flange type, special locking, 5/16"-18 NC, plated

6шт.

18

F45179

BLOCK

SHIM - hinge mounting

1шт.

19

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

20

113-255

BOLT,Hex, 3/8" - 16 x 7", Gr 5

- hex head, 3/8" - 16 NC x 7", plated, center, left-hand side

1шт.

21

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

center, RH side, not shown Hex, 3/8"-16 x 5", G5

1шт.

22

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

THRUST WASHER - hinge

15шт.

23

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, self-locking, 3/8" - 16 NC, plated

5шт.

24

F45153

STRAP

- left-hand, lower door stop

1шт.

25

F45154

STRAP

BRACKET - strap mounting

2шт.

26

111-133

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G5

BOLT, CARRIAGE, Short NK, 1/4"-20 x 5/8", G5

4шт.

27

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

28

F66210

STRIKER PLATE

STRIKER - lower door

1шт.

29

F45073

PIN

STRIKER - upper window

2шт.

30

195-2207

WASHER,7/16" x 1 1/4" x .065"

- flat

8шт.

31

F44748

SPRING WASHER

BELLEVILLE SPRING - striker

3шт.

32

131-595

NUT,7/16"-14

NUT - hex, self-locking, 7/16" - 14 NC, plated

3шт.

33

195-2029

WASHER,7/16" x 1 1/4" x .134"

- flat, 3/8", plated

3шт.

34

353-422

PLUG,Dome, 1.250" hole, Nylon

Door Dome, 1.250" hole, Nylon

1шт.
