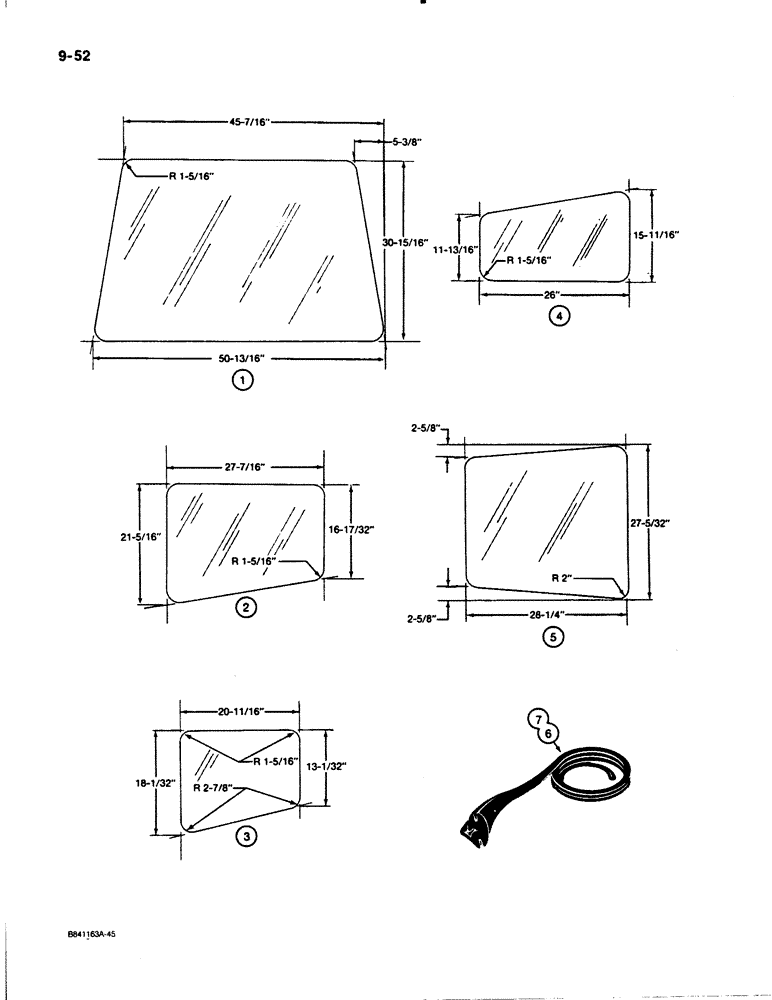

Запчасти Case W30 (9-52) - CAB GLASS, U.S. DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

GLASS - side, front, upper

2шт.

3

REF

INSTRUCTION

GLASS - side, front, lower

2шт.

4

REF

INSTRUCTION

GLASS - side, rear

2шт.

5

REF

INSTRUCTION

GLASS - rear

2шт.

6

A42677

MOLDING

SEAL - used around all glass except windshield glass, 50 ft long

1шт.

7

F43628

MOLDING

SEAL - used around windshield glass only, 100 ft long

1шт.
