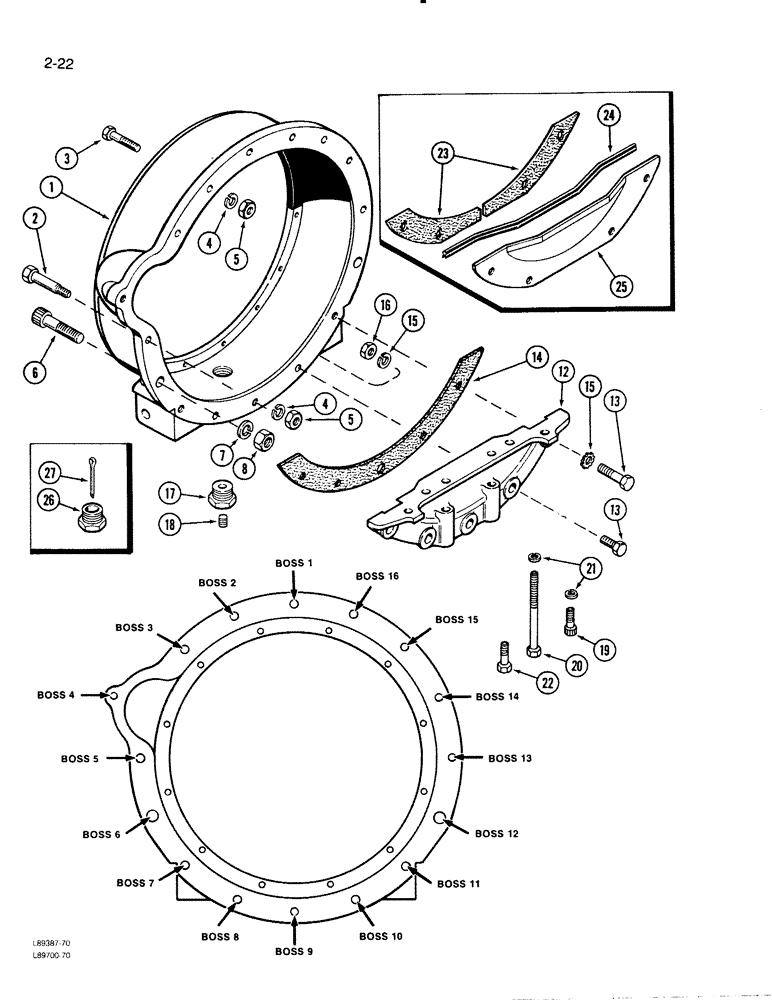

Запчасти Case W30 (2-22) - FLYWHEEL HOUSING, 504BDT ENGINE (02) - ENGINE

1

A166156

HOUSING

- flywheel (Includes Ref, No. 17 and 18)

1шт.

2

A61041

STEP BOLT

BOLT - dowel, 1/2 NC x 2-7/16 inch (Boss 13)(Order A149765)

1шт.

2

A61040

STEP BOLT

BOLT - dowel, 1/2 NC x 3 inch (Boss 5)(order A149764)

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Boss 1, 2 and 16) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, (8oss 3, 14 and 15) 1/2 NC x 2-1/2 inch

3шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - 12 point socket head, 3/4 NC x 3 inch, Grade 8 (Boss 6 and 12)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

(Boss 6 and 12) 3/4"-10, G5

2шт.

12

A144906

PLATE

SHIELD - dust, flywheel (Used with Allison transmission)

1шт.

13

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Shield (Boss 8 and 10) Hex, 1/2"-13 x 2", G5

2шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Shield (Boss 7, 9 and 11) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

14

A57966

GASKET

- flywheel housing (Used with Allison transmission)

1шт.

#14 IS BOTTOM GASKET- USE B17428 SEALANT FOR TOP

1шт.

15

92-8

LOCK WASHER,1/2"

5шт.

16

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

2шт.

17

221-1062

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - reducer, hex (Used with Allison transmission)

1шт.

18

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

(Used with Allison transmission) Hex Soc, 1/4"-18 NPTF

1шт.

19

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - 12 point, 3/8 NC x 1-1/4 inch

2шт.

20

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch

2шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - hex with washer, 3/8 NC x 1-1/2 inch

2шт.

23

L111430

GASKET

- flywheel housing (Used with ZF transmission)

2шт.

24

L109461

SEAL

- flywheel dust shield (Used with ZF transmission)

1шт.

25

A58931

GUARD

SHIELD - dust, flywheel (Used with ZF transmission)

1шт.

26

132-118

COTTER PIN,7/32" x 1"

PIN, SPLIT (COTTER), (Used with ZF transmission) 7/32" x 1"

1шт.

27

L113178

PLUG

BUSHING - reducer, 3/4 x 1/8 inch PT (Used with ZF transmission)

1шт.

27

L126413

BUSHING

- reducer, 1 x 1/8 inch PT (Used with ZF transmission)

1шт.
