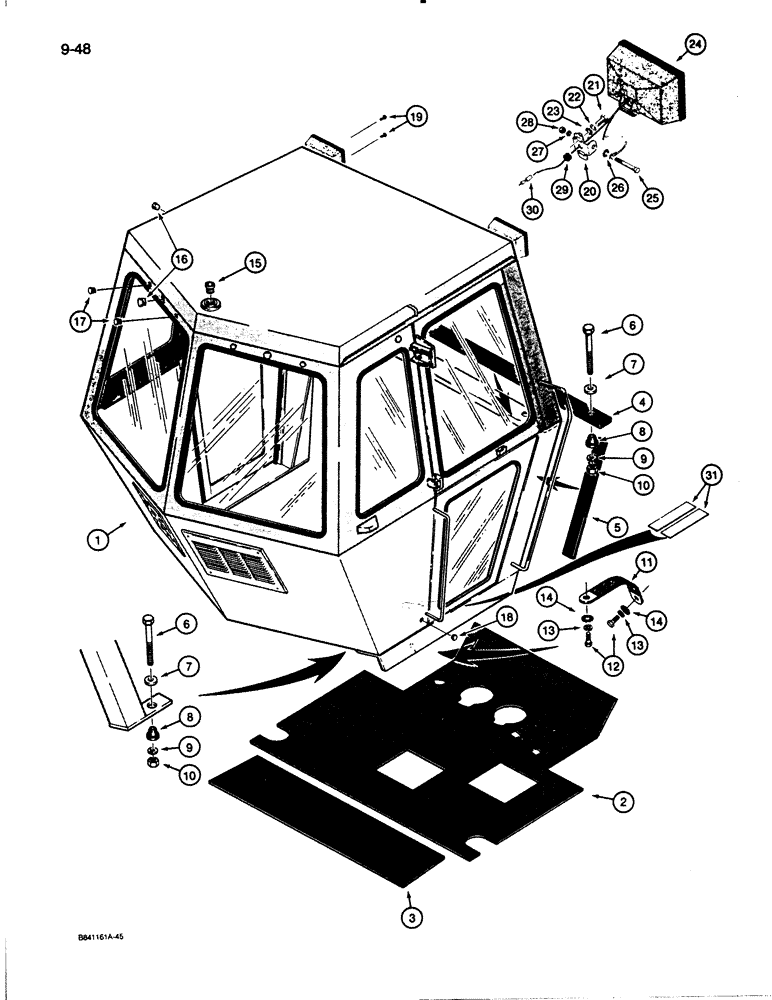

Запчасти Case W30 (9-48) - CAB MOUNTING, SEALS, AND LAMPS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, order from the machinery price list

1шт.

2

L114100

MAT

- floor, front

1шт.

3

L111099

MAT

- floor, rear

1шт.

4

L108630

SEAL

- rubber, cab to front of chassis, horizontal

1шт.

5

L108633

SEAL

- rubber, cab to front of chassis, sides, vertical

2шт.

6

L108002

BOLT

- hex, 1" - 14 NF x 5", grade 8, plated, special

4шт.

7

L107918

WASHER,26.2mm ID x 70mm OD x 12.7mm Thk

- flat, hardened, 1" ID, 1/2" thick, 2-3/4" OD

4шт.

8

L105697

ELASTIC MOUNTING

BUSHING - rubber, cab mounting

4шт.

9

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, hardened, 1" ID, 1/8" thick, 1-7/8" OD

4шт.

10

131-188

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1" - 14 NF

4шт.

11

D120366

STRAP

- ground, cab

1шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

2шт.

15

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, hex socket, 1" NPT, cab roof

1шт.

16

R54170

PLUG

- nylon, 5/8" hole size, if used

4шт.

17

353-421

PLUG,Dome, .187" hole, Nylon

If used Dome, .187" hole, Nylon

4шт.

18

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

1шт.

19

F45252

PLUG,Slotted, 3/8"-16

- special, screw in, 3/8" - 16 NC, if used

4шт.

20

L113415

BRACKET

- front lamp mounting

2шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

193-72

LOCK WASHER

- external-internal tooth lock, 3/8", plated

4шт.

24

L113375

LIGHT ASSY.

LAMP ASSEMBLY - front flood, parts list Figure 4-56

2шт.

25

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

26

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

2шт.

29

L13766

GROMMET

- lamp wire, cab frame

2шт.

30

223-166

CONNECTOR, ELEC

CONNECTOR - electrical, front lamp to cab harness, female

2шт.

31

D55216

PAD,2" x 9"

PAD - nonskid

2шт.
