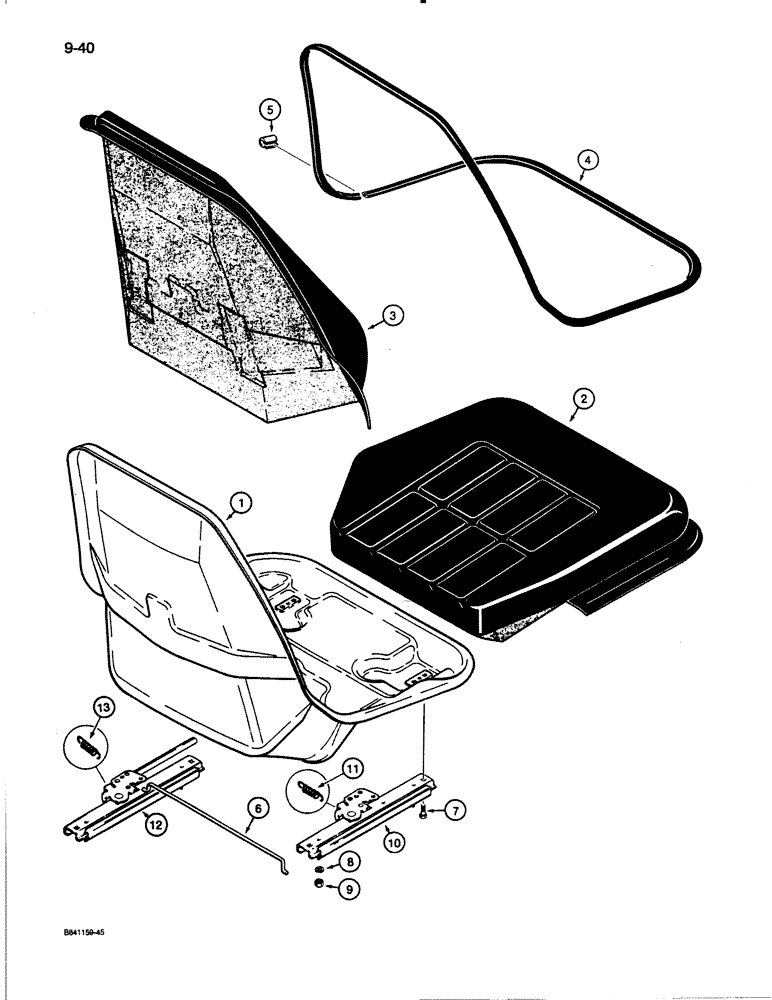

Запчасти Case W30 (9-40) - L108783 SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

L108783

SEAT

ASSEMBLY - standard

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8462

CUSHION

Seat, includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

Backrest, includes N7802 clip kit, see below

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - strip, cushion and shell

1шт.

Ref #4 - N14614 Subs to 176924A1

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

6

L35492

ROD

Connecting

1шт.

7

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

A64818

ADJUSTER

SLIDE - seat, RH

1шт.

11

L35503

SPRING

Adjusting

1шт.

12

D59688

SLIDE

SLIDE - seat, LH

1шт.

13

L35503

SPRING

Adjusting

1шт.

345-44

ADHESIVE

Pad retaining, in a can, 19-1/2 fl. ounces (577 ml), not shown

1шт.

N7802

CLIP

KIT, includes item 5 and six additional narrow clips

1шт.
