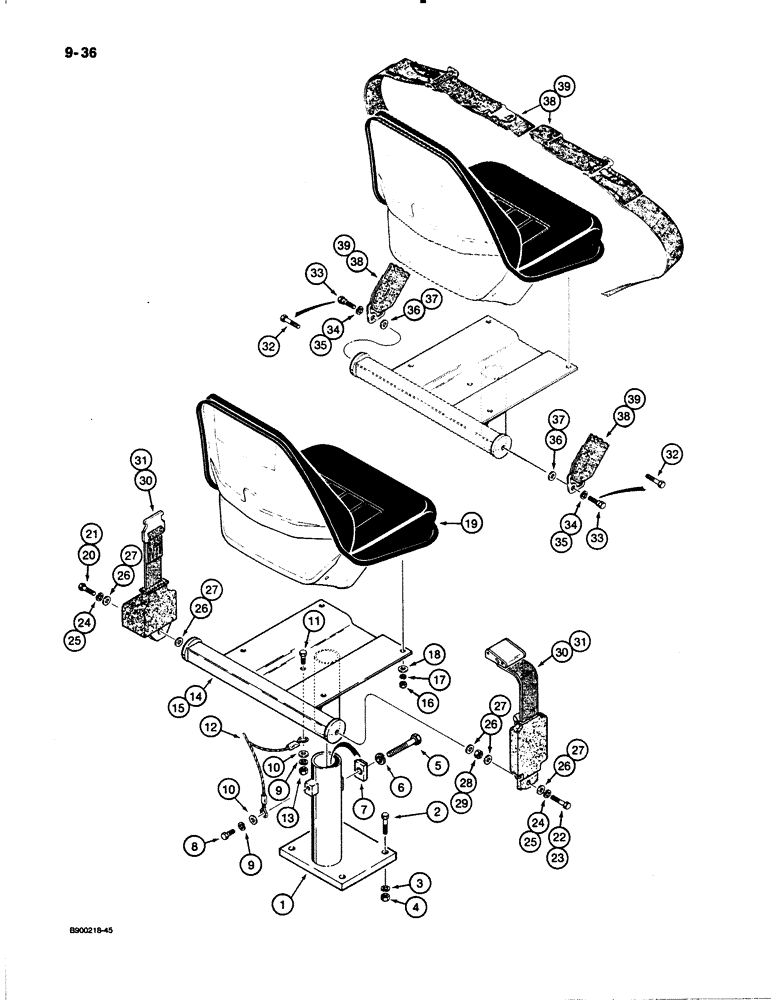

Запчасти Case W30 (9-36) - SEAT AND MOUNTING PARTS, STANDARD SEAT (09) - CHASSIS/ATTACHMENTS

1

L61338

SUPPORT

- seat, lower mounting

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Seat mounting Hex, 1/2"-13 x 2", G5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Seat mounting 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Seat mounting 1/2"-13, G5

4шт.

5

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch, seat mounting

1шт.

6

492-21062

LOCK WASHER,5/8"

seat mounting 5/8"

1шт.

7

L59950

NUT

- special, seat mounting

1шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Seat mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

9

492-11038

LOCK WASHER,3/8"

seat mounting 3/8"

2шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Seat mounting 3/8"

2шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Seat mounting Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

L110228

CABLE

- galvanized steel, seat mounting

1шт.

13

425-106

NUT,3/8"-16, Cl 5

Seat mounting 3/8"-16, G5

1шт.

14

L61352

SUPPORT

- seat, upper, uses 3/8 inch belt retaining bolts, no longer used, order 97394C2 support and 7/16 inch NF

1шт.

belt retaining hardware as required below, seat mounting

1шт.

15

97394C2

SUPPORT

- seat, upper, use 7/16 inch belt retaining bolts, seat mounting

1шт.

16

425-105

NUT,5/16"-18, G5

Seat mounting 5/16"-18, G5

4шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , seat mounting 5/16"

4шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Seat mounting 5/16"

4шт.

19

L108783

SEAT

ASSEMBLY - standard, parts list Figure 9-40 mounting

1шт.

20

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

Hex, 3/8"-24 x 1 1/4", G5, Full Thd, If used, retractable seat belts and mounting parts

1шт.

21

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch, if used, retractable seat belts and mounting parts

1шт.

22

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex, 3/8 NF x 1-3/4 inch, if used, retractable seat belts and mounting parts

1шт.

23

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch, if used, retractable seat belts and mounting parts

1шт.

24

492-11038

LOCK WASHER,3/8"

if used, retractable seat belts and mounting parts 3/8"

2шт.

25

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , If used, retractable seat belts and mounting parts 7/16"

2шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), if used, retractable seat belts and mounting parts 3/8"

5шт.

27

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x .083 inch, if used, retractable seat belts and mounting parts

5шт.

28

425-106

NUT,3/8"-16, Cl 5

Retractable seat belts and mounting parts 3/8"-16, G5

1шт.

29

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF, retractable seat belts and mounting parts

1шт.

30

L126953

SAFETY BELT

SAFETY BELT, Retractable, 2 inch (51 mm) wide and mounting parts

1шт.

31

NSS

NOT SOLD SEPARAT

BELT - seat, retractable, 3 inch (76 mm) wide, and mounting parts

1шт.

32

113-242

BOLT

BOLT - hex, 3/8 NC x 1-1/4 inch, if used, non-retractable seat belts and mounting parts

2шт.

33

F42236

STEP BOLT

BOLT - shoulder, 7/16 NF X 1-1/4 inch, if used, non-retractable seat belts and mounting parts

2шт.

34

492-11038

LOCK WASHER,3/8"

if used, non-retractable seat belts and mounting parts 3/8"

2шт.

35

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , If used, non-retractable seat blets and mounting parts 7/16"

2шт.

36

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), if used, non-retractable seat belts and mounting parts 3/8"

2шт.

37

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x .083 inch, if used, non-retractable seat belts and mounting parts

2шт.

38

L117002

SAFETY BELT

SAFETY BELT, Non-retractable, 2 inch (51 mm) wide, optional, and mounting parts

1шт.

39

D85816

SAFETY BELT

BELT - seat, non-retractable, 3 inch (76 mm) wide, optional, and mounting parts

1шт.
