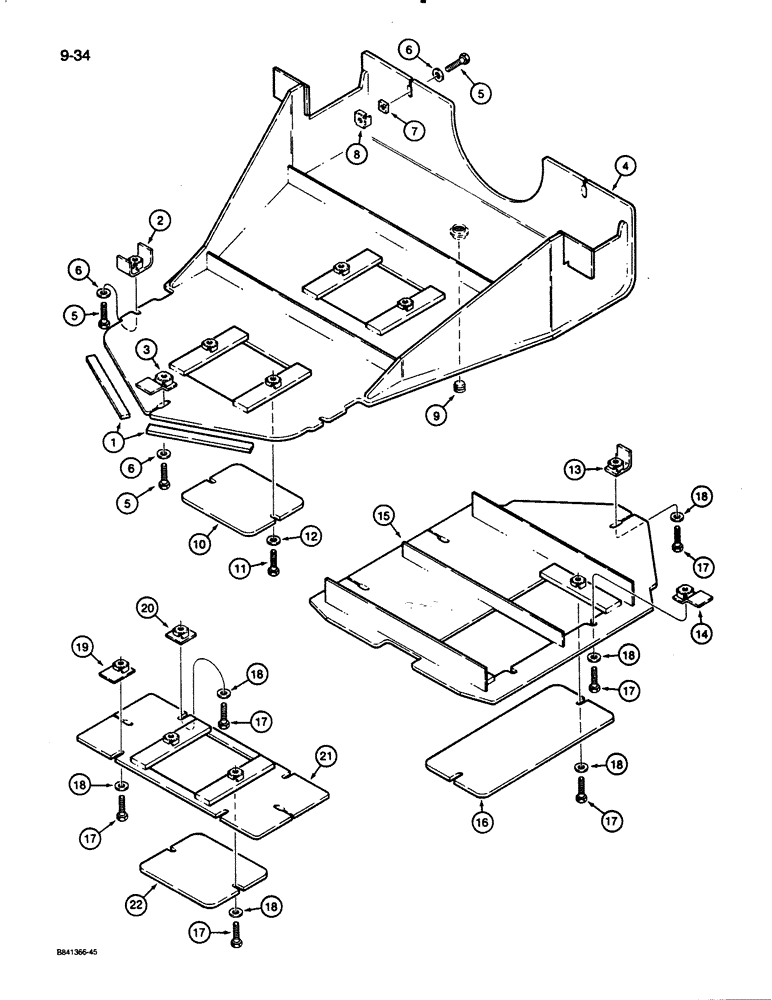

Запчасти Case W30 (9-34) - DRIVE LINE GUARDS (09) - CHASSIS/ATTACHMENTS

1

L77272

STOP

- guard, weld on

2шт.

2

L77273

MOUNTING PARTS

MOUNT - guard, weld on

2шт.

3

L109448

WASHER

BRACKET - guard mounting, weld on

1шт.

4

L109441

GUARD ASSY.

GUARD - front drive line, includes item 9

1шт.

5

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - 5/8", special

5шт.

7

25-2210

NUT,Sq, 5/8"-11

- square, 5/8" - 11 NC

2шт.

8

D35240

CAGE

- nut, weld on

2шт.

9

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket head, 1" NPT

1шт.

10

L110430

PLATE

- access cover

2шт.

11

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - 5/8", special

4шт.

13

L76499

COMPENSATOR

MOUNT - rear guard, weld on

1шт.

14

L109459

BRACKET

- cover mount, weld on

4-6шт.

15

L123806

GUARD

- rear drive line, access hole on right, side, if used

1шт.

15

L127162

GUARD

- rear drive line, access hose on left, side, if used, not shown

1шт.

16

L61142

COVER

PLATE - access cover

1шт.

17

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

13-15шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - 5/8", special

13-15шт.

19

L109455

WASHER

BRACKET - access cover, weld on

2шт.

20

L109457

WASHER

BRACKET - access cover, weld on

2шт.

21

L109453

COVER ASSY

PLATE ASSEMBLY - access cover

1шт.

22

L110430

PLATE

- access cover

1шт.
