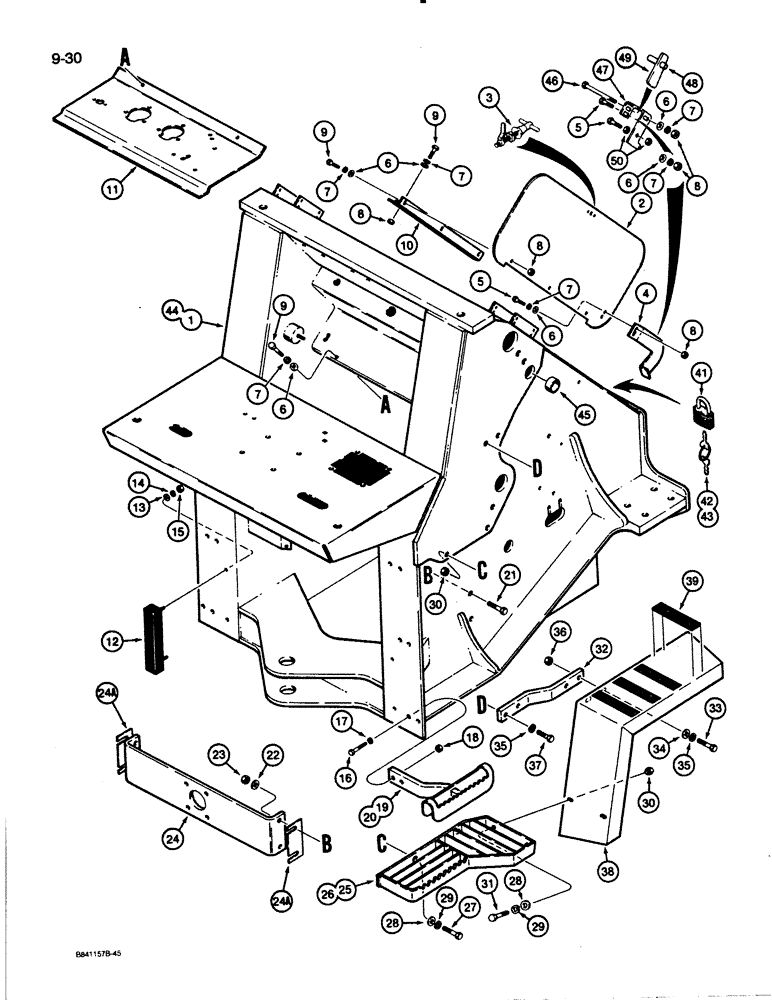

Запчасти Case W30 (9-30) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

1

L115253

FRAME

CHASSIS - front, without bushings, no longer used, see item 44 for correct chassis

1шт.

2

L106819

DOOR

- hydraulic access

1шт.

3

L48438

HANDLE

- door

1шт.

4

L61317

STOP

- door, if used

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

10шт.

7

92-6

LOCK WASHER,3/8"

10шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

10

L106790

HINGE

- access door

1шт.

11

L105702

FLOOR - front chassis

1шт.

12

L108504

BUMPER

- chassis

2шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

16

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex head, 3/8" - 16 NC x 2"

12шт.

17

92-8

LOCK WASHER,1/2"

12шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

12шт.

19

L107673

TREAD

STEP - left-hand

3шт.

20

L107674

TREAD

STEP - right-hand

3шт.

21

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

22

196-26

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, hardened, 21/32 x 1-5/16 x 5/32 inch, was D43266

1шт.

23

25-1010

NUT,5/8"-11, G5

4шт.

24

L118104

PLATE ASSY.

PLATE - center bearing mount

1шт.

24a

L118105

SHIM,3mm Thk

1шт.

25

L116584

STEP

- front fender, right-hand

1шт.

26

L116585

STEP

- front fender, left-hand

1шт.

27

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

28

95-8

WASHER,1/2"

flat 1/2"

8шт.

29

92-8

LOCK WASHER,1/2"

8шт.

30

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

31

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

32

L107870

PLATE

- fender mount

2шт.

33

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

34

95-8

WASHER,1/2"

flat 1/2"

4шт.

35

92-8

LOCK WASHER,1/2"

8шт.

36

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

37

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

38

L107774

FENDER

- front

2шт.

39

D55216

PAD,2" x 9"

PAD - non-skid

8шт.

40

L76805

STRIP

TAB - access door, if used, not shown

2шт.

41

D93753

PADLOCK

- includes keys, if used

1шт.

42

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

43

R29555

KEY

- for Master padlock only, if used

2шт.

44

L118045

CHASSIS

- front, used on models with allison transmission

1шт.

44

L126945

CHASSIS

- front, used on models with ZF transmission, was L117603

1шт.

45

L118041

BUSHING

- chassis, if used

4шт.

46

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

47

L118254

BRACKET

- door latch

1шт.

48

L118253

SPACER

- door latch

1шт.

49

L118255

LATCH

- door

1шт.

50

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

2шт.
