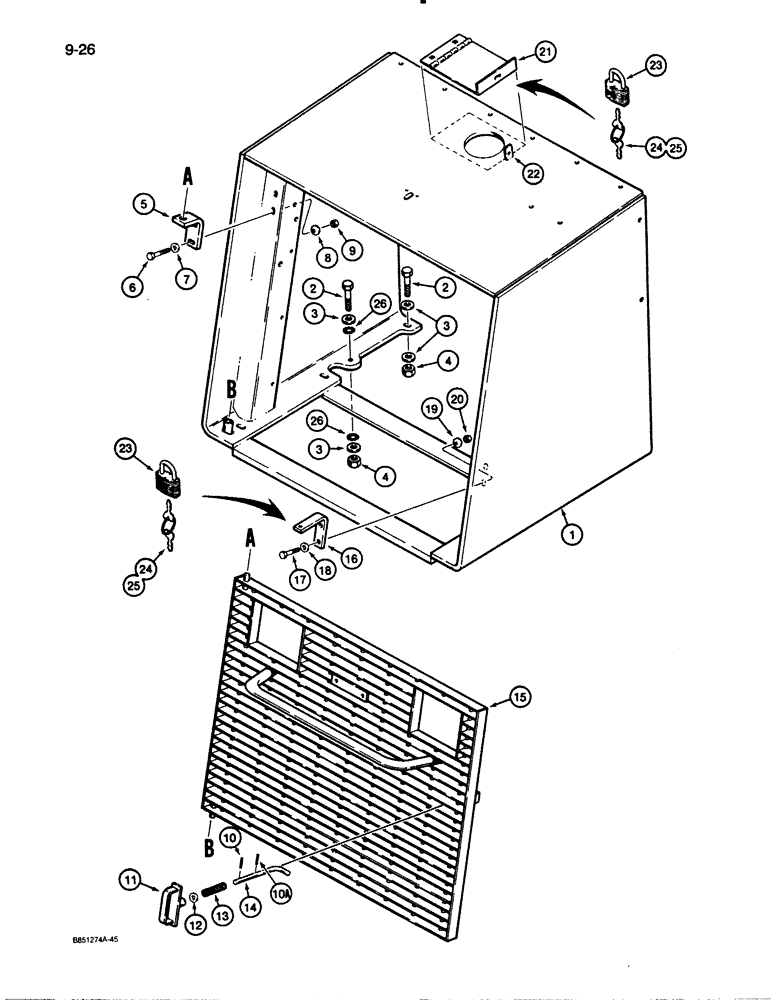

Запчасти Case W30 (9-26) - GRILLE AND RADIATOR GUARD (09) - CHASSIS/ATTACHMENTS

1

L117205

GUARD ASSY.

GUARD - radiator

1шт.

2

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

6шт.

3

196-26

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, hardened, 21/32 x 1-5/16 x 5/32 inch

1шт.

was D43266

12шт.

4

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8" - 11 NC

6шт.

5

L48386

BRACKET

- upper grille support

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

D41740

WASHER

- flat, 3/8", hardened

2шт.

8

L105055

WASHER

- special

2шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

10

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

10a

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

11

L73738

HANDLE

- latch

1шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

13

L76665

SPRING

- latch

1шт.

14

L73742

ROD

- latch

1шт.

15

L115269

GRILLE

- radiator, no longer includes tubular handle

1шт.

16

L71189

SUPPORT

BRACKET - lock

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

19

L105055

WASHER

- special

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

L112374

COVER

- radiator cap, weld on, if used

1шт.

22

L54190

STRIP

PLATE - weld on, if used

1шт.

23

D93753

PADLOCK

- includes keys, if used

2шт.

24

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

25

R29555

KEY

- for Master padlock only, if used

2шт.

26

193-121

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER - external-internal tooth lock, 5/8", used with L114614 air conditioner condenser, see Figue 9-66

2шт.
