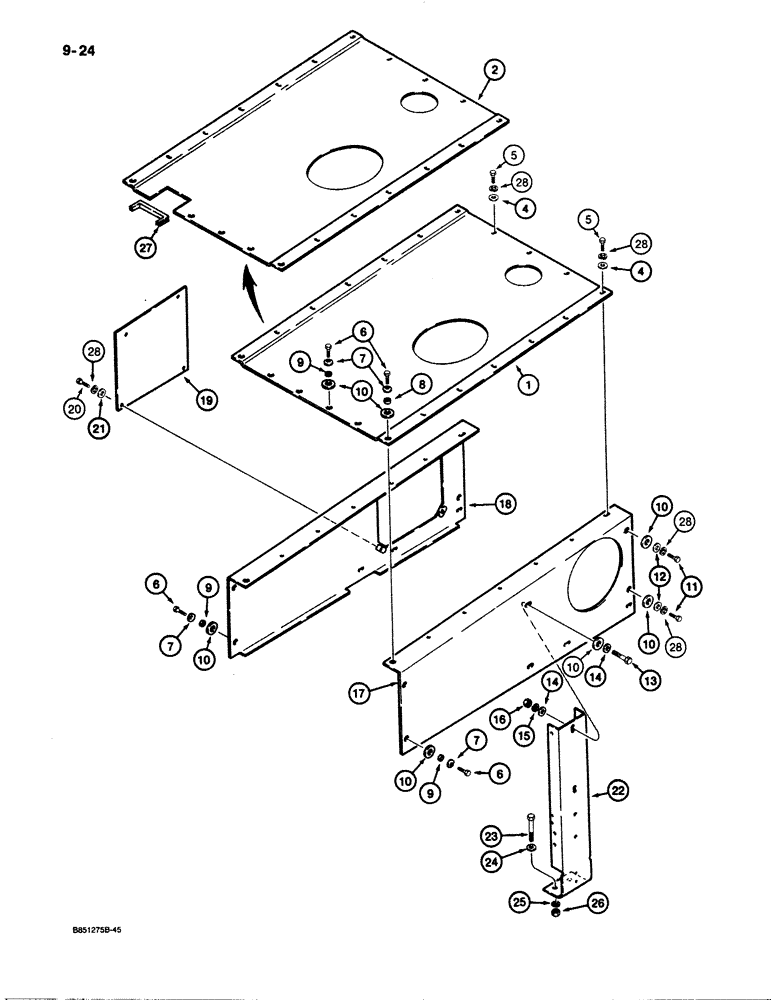

Запчасти Case W30 (9-24) - HOOD AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

L114768

TOP

HOOD - top, standard

1шт.

2

L114770

HOOD ASSY.

HOOD - top, for air conditioner

1шт.

3

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

4

L105055

WASHER

- special, cone shaped, if used

15шт.

4

495-21044

WASHER,3/8"

If used 3/8"

15шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

10шт.

7

L105055

WASHER

- special, cone shaped

10шт.

8

A30935

BUSHING

SPACER - bolt

2шт.

9

L107353

SPACER

- bolt

8шт.

10

95-10

WASHER,5/8"

- flat, 5/8"

18шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

L105055

WASHER

- special, cone shaped, if used

4шт.

12

495-21044

WASHER,3/8"

If used 3/8"

4шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

14

95-8

WASHER,1/2"

flat 1/2"

8шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

17

L115050

HOOD

- right-hand

1шт.

18

L115626

HOOD

- left-hand

1шт.

19

L115567

COVER

- hydraulic filter

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

21

L105055

WASHER

- special, cone shaped, if used

4шт.

21

495-21044

WASHER,3/8"

If used 3/8"

4шт.

22

L111577

POST

- hood

2шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

24

95-8

WASHER,1/2"

flat 1/2"

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

27

D38500

LINING

TRIM - 9-13/16"

1шт.

28

492-11038

LOCK WASHER,3/8"

if used 3/8"

23шт.
