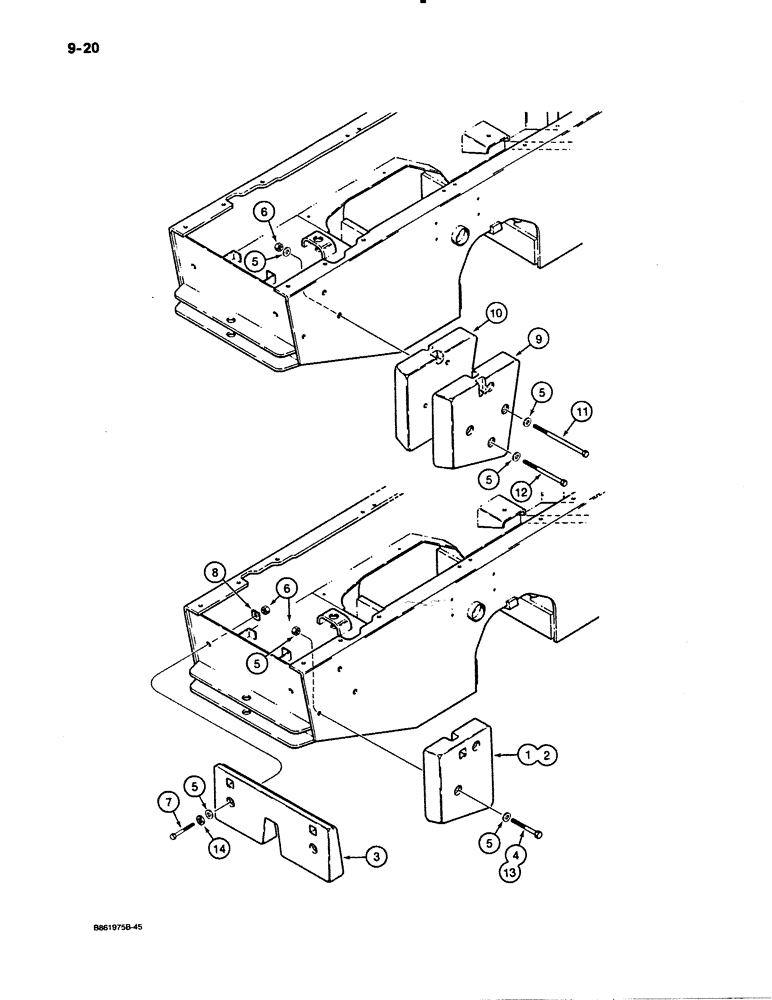

Запчасти Case W30 (9-20) - COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

L108416

WEIGHT

COUNTERWEIGHT - right-hand, no longer available, order L118326

1шт.

2

L108417

WEIGHT

COUNTERWEIGHT - left-hand, no longer available, order L118327

1шт.

3

L108415

WEIGHT

COUNTERWEIGHT - rear

1шт.

4

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

Used with L108416 and L108417 counterweights Hex, 1"-8 x 5 1/2", G5

4шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

10-18шт.

6

25-1016

NUT,1"-8, G5

6-10шт.

7

13-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

2шт.

8

195-906

BELLEVILLE WASHER

- square, beveled, 1"

2шт.

9

L118326

WEIGHT

COUNTERWEIGHT - right-hand

1-2шт.

10

L118327

WEIGHT

COUNTERWEIGHT - left-hand

1-2шт.

11

13-16176

BOLT,Hex, 1" - 8 x 11", Gr 5

- hex head, 1" - 8 NC x 11"

6шт.

12

13-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

- hex head, 1" - 8 NC x 9"

2шт.

13

13-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

Used with L118326 and L118327 counterweights Hex, 3/8"-16 x 6", G5

6шт.

14

D30196

WASHER

- flat, 1 inch, hardened, if used

2шт.
