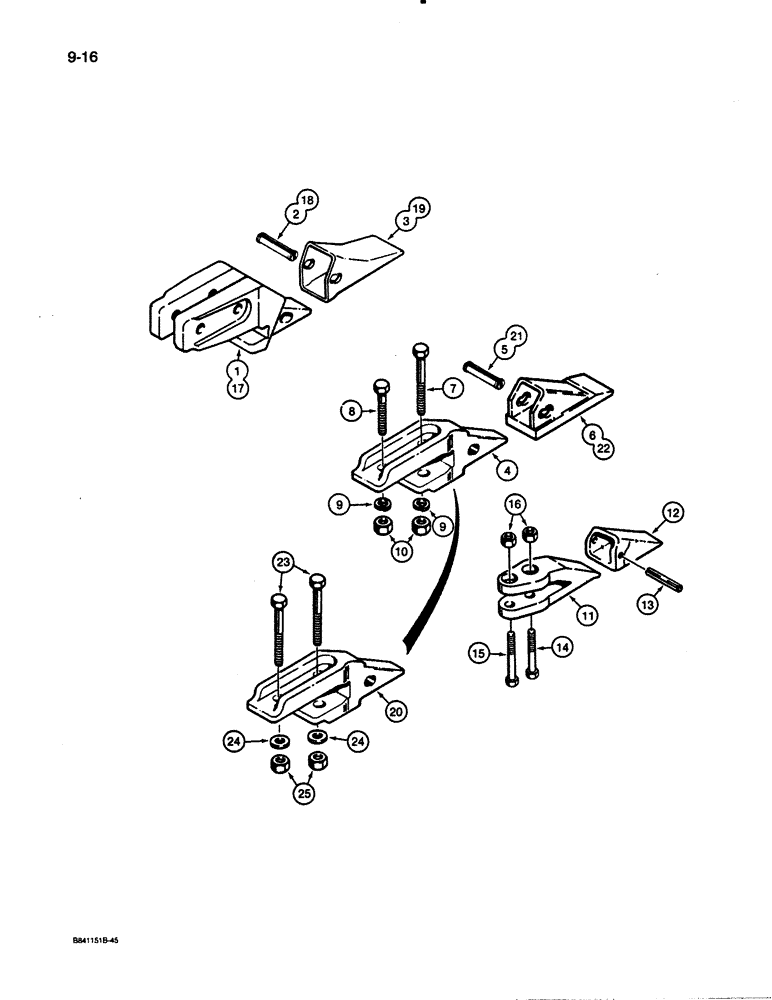

Запчасти Case W30 (9-16) - BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

L124971

TOOTH

ASSEMBLY - bucket, H and L Tooth Co., corner, teeth with 5/8 inch hardware

2шт.

L124971 is a universal tooth assy for L.H. & R.H. sides. It replaced L110506 R.H. & L110507 L.H. corner teeth.

1шт.

1

NSS

NOT SOLD SEPARAT

SHANK - tooth, teeth for buckets with 5/8 inch hardware

1шт.

2

L32090

PIN

FLEX PIN - tooth, teeth for buckets with 5/8 inch hardware

1шт.

3

D55468

TOOTH

- tooth, teeth for buckets with 5/8 inch hardware

1шт.

L110505

TOOTH

ASSEMBLY - bucket, H and L Tooth Co., teeth with 5/8 inch hardware

7шт.

4

NSS

NOT SOLD SEPARAT

SHANK - tooth, teeth for buckets with 5/8 inch hardware

1шт.

5

L32090

PIN

FLEX PIN - tooth, teeth for buckets with 5/8 inch hardware

1шт.

6

D55468

TOOTH

- tooth, teeth for buckets with 5/8 inch hardware

1шт.

7

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8" - 11 NC x 3-1/2", teeth for buckets with 5/8 inch hardware

11шт.

8

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex head, 5/8" - 11 NC x 2-3/4", teeth for buckets with 5/8 inch hardware

7шт.

9

196-10

WASHER,.521" x 2" x .134", HDN

- lock, 5/8", teeth for buckets with 5/8 inch hardware

18шт.

10

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, teeth for buckets with 5/8 inch hardware

18шт.

S25278

TOOTH

ASSEMBLY - bucket, clam

9шт.

11

S22929

TOOTH

SHANK - tooth, clam bucket teeth

1шт.

12

S204157

TOOTH

POINT - tooth, clam bucket teeth

1шт.

13

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Point mounting, clam bucket teeth 1/2" x 2 1/2", Slotted

1шт.

14

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Clam bucket teeth Hex, 5/8"-11 x 3", G5

9шт.

15

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex head, 5/8" - 11 NC X 3-1/2", clam bucket teeth

9шт.

16

25-1010

NUT,5/8"-11, G5

Clam bucket teeth 5/8"-11, G5

18шт.

L126938

TOOTH

ASSEMBLY - bucket, H and L Tooth Co., corner, 3/4 " hardware

1шт.

was L117817, teeth for buckets with 3/4 " hardware

2шт.

17

NSS

NOT SOLD SEPARAT

SHANK - tooth, teeth for buckets with 3/4 " hardware

1шт.

18

L32090

PIN

FLEX PIN - tooth, teeth with 3/4 " hardware

1шт.

19

D55468

TOOTH

- tooth, teeth for buckets with 3/4 " hardware

1шт.

L117816

TOOTH

ASSEMBLY - bucket, H and L Tooth Co., teeth with 3/4 " hardware

7шт.

20

NSS

NOT SOLD SEPARAT

SHANK - tooth, teeth for buckets with 3/4 " hardware

1шт.

21

L32090

PIN

FLEX PIN - tooth, teeth with 3/4 " hardware

1шт.

22

D55468

TOOTH

- tooth, teeth for buckets with 3/4 " hardware

1шт.

23

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- hex head, 3/4" - 10 NC x 3-3/4", teeth for buckets with 3/4 " hardware

18шт.

24

196-31

WASHER

- flat, 3/4", hardened, plated, teeth for buckets with 3/4 " hardware

18шт.

25

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex, 3/4" - 10 NC, plated, teeth for buckets with 3/4 " hardware

18шт.
