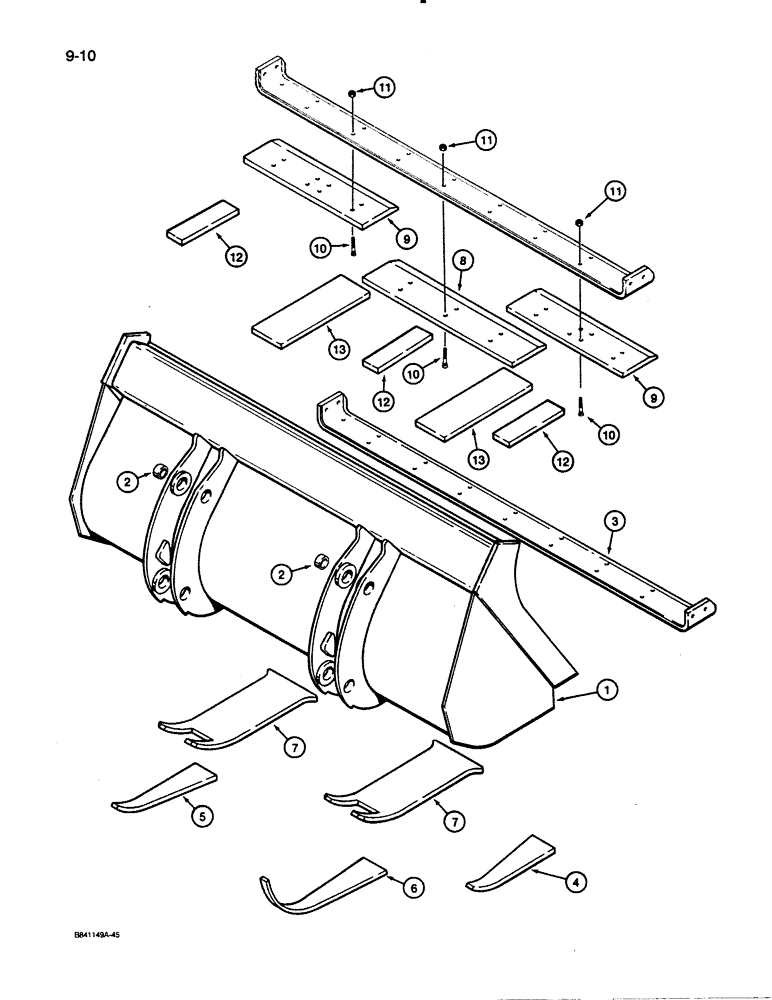

Запчасти Case W30 (9-10) - LOADER BUCKETS WITH 5/8" HARDWARE FOR CUTTING EDGE AND TEETH (09) - CHASSIS/ATTACHMENTS

L105812

BUCKET ASSEMBLY - loader, order from the machinery price list, no longer available, see Figure 9-12, 2-1/2 cubic yard (1.9 cubic meter)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2-1/2 cubic yard (1.9 cubic meter)

1шт.

2

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- bucket, 2-1/2 cubic yard (1.9 cubic meter)

8шт.

3

L113887

EDGE

CUTTING EDGE - weld on, 2-1/2 cubic yard (1.9 cubic meter) bucket

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - wear, outer right-hand, 2-1/2 cubic yard (1.9 cubic meter) bucket

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - wear, outer left-hand, 2-1/2 cubic yard (1.9 cubic meter) bucket

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - wear, center, 2-1/2 cubic yard (1.9 cubic meter) bucket

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear, bucket ear, 2-1/2 cubic yard (1.9 cubic meter)

2шт.

L113681

BUCKET ASSEMBLY - loader, order from the machinery price list, no longer available, see Figue 9-12, 3 cubic yard (2.3 cubic meter)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3 cubic yard (2.3 cubic meter)

1шт.

2

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- bucket, 3 cubic yard (2.3 cubic meter)

8шт.

3

L113887

EDGE

CUTTING EDGE - weld on, 3 cubic yard (2.3 cubic meter) bucket

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - wear, outer right-hand, 3 cubic yard (2.3 cubic meter) bucket

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - wear, outer left-hand, 3 cubic yard (2.3 cubic meter) bucket

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - wear, center, 3 cubic yard (2.3 cubic meter) bucket

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear, bucket ear, 3 cubic yard (2.3 cubic meter)

2шт.

L106343

BUCKET ASSEMBLY - loader, order from the machinery price list, no longer available, see Figure 9-12, 3-1/2 cubic yard (2.7 cubic meter)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3-1/2 cubic yard (2.7 cubic meter)

1шт.

2

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- bucket, 3-1/2 cubic yard (2.7 cubic meter)

8шт.

3

L113887

EDGE

CUTTING EDGE - weld on, 3-1/2 cubic yard (2.7 cubic meter), bucket

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - wear, outer right-hand, 3-1/2 cubic yard (2.7 cubic meter), bucket

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - wear, outer left-hand, 3-1/2 cubic yard (2.7 cubic meter), bucket

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - wear, center, 3-1/2 cubic yard (2.7 cubic meter), bucket

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear, bucket ear, 3-1/2 cubic yard (2.7 cubic meter)

2шт.

L36278

KIT - bolt on cutting edge, for service order component parts

1шт.

8

L115405

EDGE

CUTTING EDGE - center, bolt on

1шт.

9

L115406

EDGE

CUTTING EDGE - end, bolt on

2шт.

10

118-427

PLOW BOLT,5/8"-11 x 2 3/4", G8

- 5/8" - 11 NC x 2-3/4", cutting edge

18шт.

11

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, bolt on cutting edge kit

18шт.

12

L116990

PLATE

- wear, bolt on cutting edge kit

3шт.

13

L115740

PLATE

- wear, bolt on cutting edge kit

2шт.
