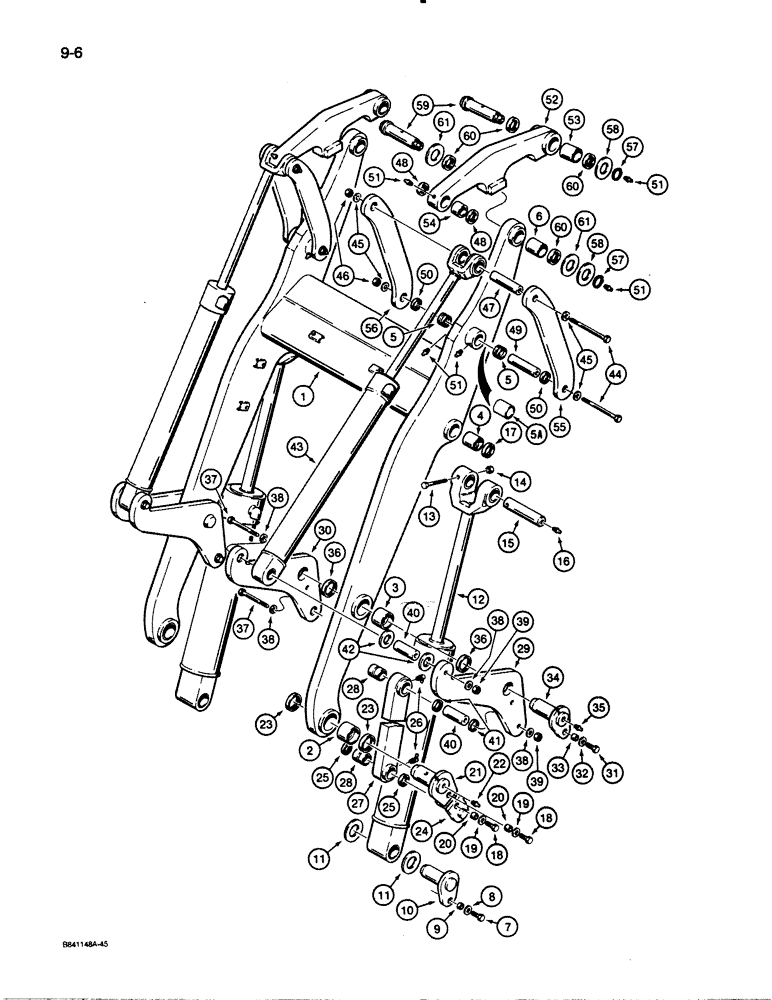

Запчасти Case W30 (9-06) - LOADER LIFT FRAME AND LINKAGE (09) - CHASSIS/ATTACHMENTS

1

L117822

HYDRAULIC LIFT

LIFT FRAME - front

1шт.

2

L104287

BUSHING

- 3-1/4" (84 mm) ID

2шт.

3

L104286

BUSHING

- 3" (76 mm) ID

2шт.

4

L105214

BUSHING,63.7mm ID x 76.33mm OD x 71.1mm L

- 2-1/2" (64 mm) ID

2шт.

5

L50464

BUSHING

- 2" (51 mm) ID

4шт.

5a

L73513

SPACER

- bushing

2шт.

6

L105211

BUSHING,63.7mm ID x 76.33mm OD x 76mm L

- 2-1/2" (64 mm)

2шт.

7

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

8

95-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

2шт.

9

T25138

BUSHING

SPACER - bolt

2шт.

10

L105141

PIN

- lift cylinder mounting

2шт.

11

L115555

WASHER

SHIM - lift cylinder

4шт.

12

REF

INSTRUCTION

CYLINDER - lift, see Figure 8-80 for correct cylinder and components

2шт.

13

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- hex head, 5/8" - 11 NC x 4-3/4"

2шт.

14

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

15

L109584

PIN,63.5mm OD x 209.55mm L

- lift cylinder

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

17

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

SEAL - pin

4шт.

18

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

19

95-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

4шт.

20

T25138

BUSHING

SPACER - bolt

4шт.

21

L105151

PIN

- lift frame hinge

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

23

L104363

WIPER SEAL

- pin

4шт.

24

L105150

PIN

- anchor, Serial Range: link-frame

2шт.

25

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

- Pin

4шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

27

L104282

LINK

- anchor

2шт.

28

L104285

BUSHING

- anchor link, 2" (51 mm) ID

2шт.

29

L104366

LEVER

BELLCRANK - right-hand

2шт.

30

L104367

LEVER

BELLCRANK - left-hand

2шт.

31

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

32

95-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

2шт.

33

T25138

BUSHING

SPACER - bolt

2шт.

34

L104347

PIN

- bellcrank to lift frame

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

36

D95148

WIPER SEAL

SEAL - pin

4шт.

37

26-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

- hex head, 3/4" - 10 NC x 7-1/2"

4шт.

38

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

39

25-1612

NUT,3/4"-10, G5, Hvy

- hex, heavy, 3/4" - 10 NC

4шт.

40

L104342

PIN

- bellcrank

4шт.

41

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

- Pin

4шт.

42

L104272

WASHER

- special

4шт.

43

REF

INSTRUCTION

CYLINDER - bucket, see Figure 8-82 for correct cylinder and components

2шт.

44

26-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 8

- hex head, 3/4" - 10 NC x 9-1/2"

4шт.

45

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

46

25-1612

NUT,3/4"-10, G5, Hvy

- hex, heavy, 3/4" - 10 NC

4шт.

47

L105144

PIN,57.15mm OD x 182.9mm L

- bucket cylinder

2шт.

48

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

- pin

4шт.

49

L105142

PIN,50.8mm OD x 182.9mm L

- link to lift arm

2шт.

50

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

- Pin

4шт.

51

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

10шт.

52

L115149

LINK

- bucket

2шт.

53

L105211

BUSHING,63.7mm ID x 76.33mm OD x 76mm L

- 2-1/2" (64 mm) ID

1шт.

54

L105212

BUSHING,57.35mm ID x 69.98mm OD x 46mm L

- 2-1/4" (57 mm) ID

1шт.

55

L106109

DRAG LINK

LINK - guide, right-hand

2шт.

56

L106110

DRAG LINK

LINK - guide, left-hand

2шт.

57

F40807

SNAP RING,#225, Ext

Ring, Snap, , bucket pin #225, Ext

4шт.

58

L105802

WASHER

- special

4шт.

59

L124491

PIN,63.5mm OD x 230.38mm L

- bucket, was L78981

4шт.

60

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

SEAL - pin

8шт.

61

L77511

SHIM,64.26mm ID x 127mm OD x 1.8mm Thk

- bucket

4шт.
