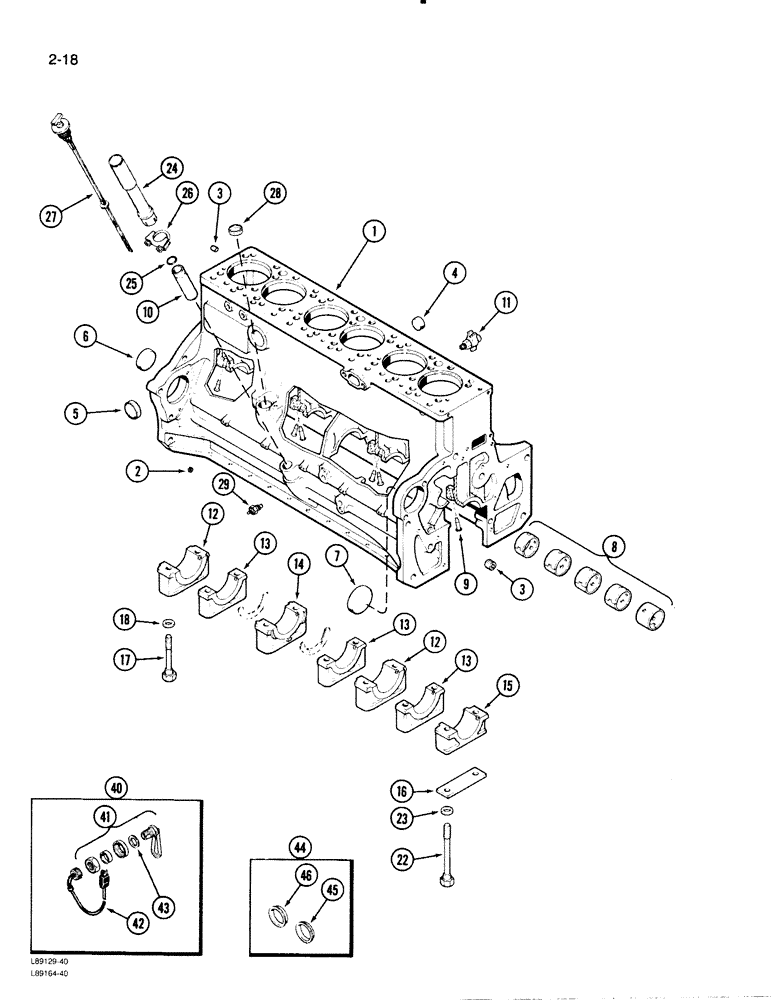

Запчасти Case W30 (2-18) - CYLINDER BLOCK, 504BDT ENGINE (02) - ENGINE

A166095

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, piston, connecting rods and bearings, camshaft, crankshaft and bearings and timing gears)

1шт.

AR44077

ENGINE, EXCHANGE

BLOCK ASSEMBLY - stripped, Remanufactured (North America Only)

1шт.

AC44077

CORE-ENGINE

RETURN NUMBER - use this part number to return block core for credit

1шт.

1

A44077

CRANKCASE

BLOCK ASSEMBLY - stripped, new (Casting No. A66527)

1шт.

2

221-1849

PLUG

- oil gallery, slotted head, 1/8 inch PT

5шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- oil gallery, socket head, 3/8 inch PT

4шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, cup, 1-3/8 inch

3шт.

5

A58569

PLUG,Cup, 2", Stainless

- heater hole, cup, 2 inch

1шт.

6

A24361

PLUG

- camshaft hole, cup, 2-3/8 inch

1шт.

7

41-1052

PLUG,Cup, 3 1/4"

- auxiliary drive opening, cup, 3-1/4 inch

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft (See Figure 2-16)

1шт.

9

A63903

NOZZLE CAP

NOZZLE - piston oil cooling

6шт.

10

A34540

TUBE

- oil filler socket

1шт.

11

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

12

A154398

BEARING CAP

CAP - main bearing, wide

2шт.

13

A154397

BEARING CAP

CAP - main bearing, narrow

3шт.

14

A154395

CAP

- main bearing, thrust

1шт.

15

A154396

BEARING CAP

CAP - main bearing, front

1шт.

16

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

17

A66948

STEP BOLT

BOLT - bearing caps, special, 5/8 NC x 5 inch

12шт.

18

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolts, 5/8 x 1 x 1/8 inch

12шт.

22

A66949

STEP BOLT

BOLT - front bearing cap, special, 5/8 NC x 7-1/4 inch

2шт.

23

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - front bearing cap bolt, 5/8 x 1 x 1/8 inch

2шт.

24

A153835

TUBE

- oil filler extension

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- extension tube, 1-1/8 x 1-3/8 x 1/8 inch

1шт.

26

L47766

CLAMP

- tube retaining

1шт.

27

A154061

DIPSTICK

- oil

1шт.

28

41-1022

PLUG,Cup, 1 3/8"

- tachometer drive hole, cup, 1-3/8 inch

1шт.

29

L111811

SWITCH

SENDING UNIT - engine oil pressure switch, in front oil gallery hole

1шт.

40

A182017

HEATER ASSY.

HEATER KIT - cylinder block (Replaces A155436) (U.S.A. Only)

1шт.

40

A182020

HEATER ASSY.

HEATER KIT - cylinder block (Canada Only)

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

42

A44813

CABLE EXTENSION

CORD - heater, 12 inch long, block

1шт.

43

A45114

GASKET

- element, block heater

1шт.

44

A44006

SLEEVE

KIT - heater installation, block

1шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16 inch diameter hole, block heater

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8 inch diameter hole, block heater

1шт.
