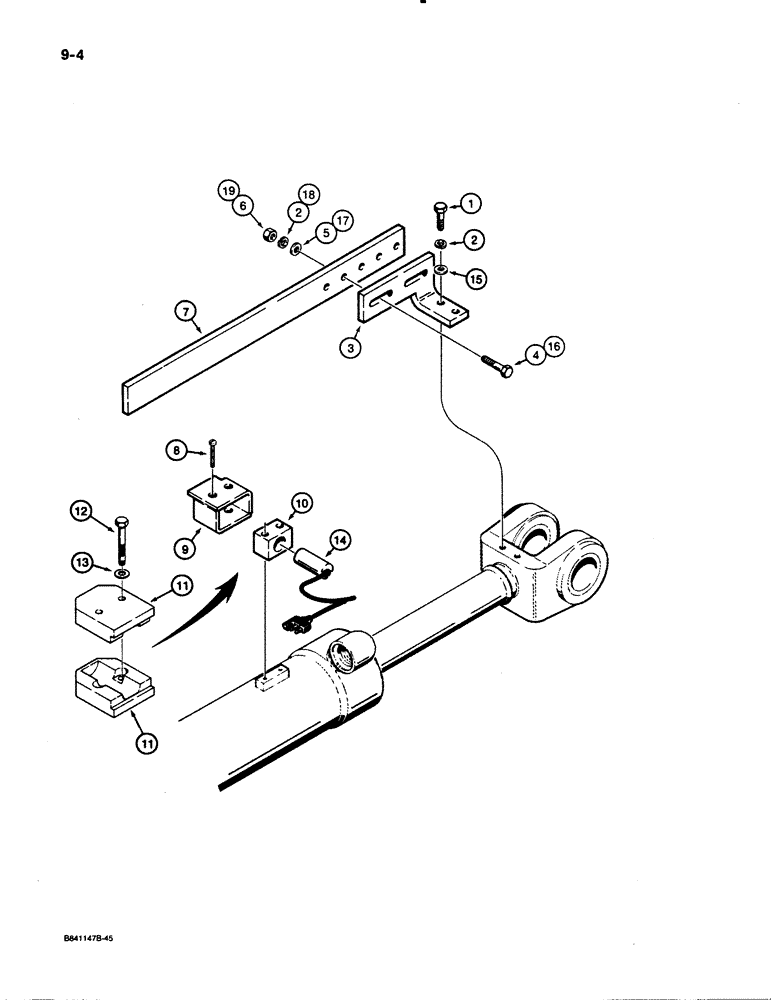

Запчасти Case W30 (9-04) - LOADER BUCKET RETURN-TO-DIG (09) - CHASSIS/ATTACHMENTS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

2

92-6

LOCK WASHER,3/8"

2-4шт.

3

L116646

SUPPORT ASSY.

BRACKET - return-to-dig

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", if used

2шт.

5

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 3/8", hardened, if used

2шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

2шт.

7

L116647

BAR

- sensing, return-to-dig

1шт.

8

71-428

SCREW,Slotted Fil Hd, 1/4"-20 x 1 3/4"

- round head slotted, 1/4" - 20 NC x 1-3/4", used with item 9, L114562 guard

2шт.

9

L114562

GUARD

- sensor, no longer available, order items 11 - 13

1шт.

10

R48091

CLAMP

- switch, no longer avaailable, order items 11 - 13

1шт.

11

L117005

CLAMP

- switch

2шт.

12

L116975

BOLT

- special, used with item 11, L117005 clamp

2шт.

13

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

14

R47120

SWITCH

- proximity

1шт.

15

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

2шт.

16

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", if used

2шт.

17

R24718

WASHER

- special, if used

2шт.

18

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

19

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

2шт.
