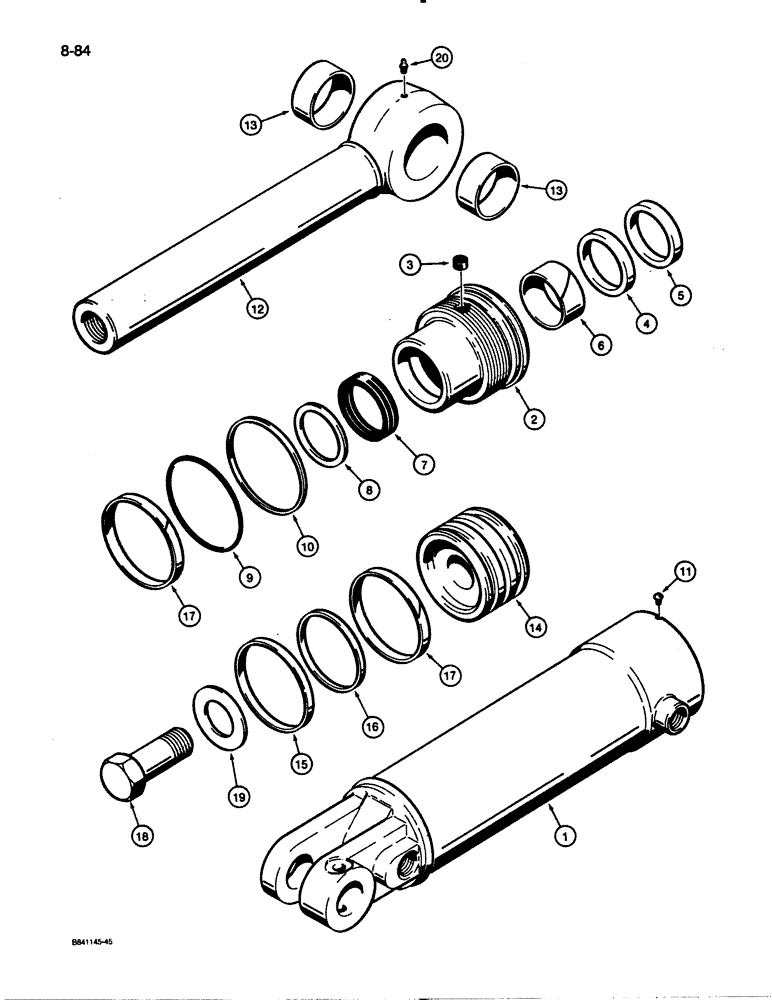

Запчасти Case W30 (8-84) - G101281 CLAM CYLINDER (08) - HYDRAULICS

G101281

CYLINDER,Double Acting, 50.8mm Rod, 266.7mm Stroke

ASSEMBLY - 4" (102 mm) ID x 10-1/2" (267 mm) stroke, clam

2шт.

1

G32346

JACK BODY,20" L

TUBE ASSEMBLY - cylinder

1шт.

G107524

GLAND

ASSEMBLY - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

Part of Seal Kit, P/N G105545

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N G105545

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N G105545

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G105545

1шт.

7

G100778

SEAL

U-CUP SEAL - piston rod, service option, extreme heat or cold

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to item 7 in some glands

1шт.

Part of Seal Kit, P/N G105545

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G105545

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland

1шт.

Part of Seal Kit, P/N G105545

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G34317

ROD

ASSEMBLY - piston, 2" (51 mm) diameter

1шт.

13

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G105545

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston

1шт.

Part of Seal Kit, P/N G105545

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit, P/N G105545

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105545

SEAL

KIT - seal, Includes: Ref. 3, 5, 6, 7, 8, 9, 10, 15, 16, and 17

1шт.

Part of Seal Kit, P/N G105545

1шт.
