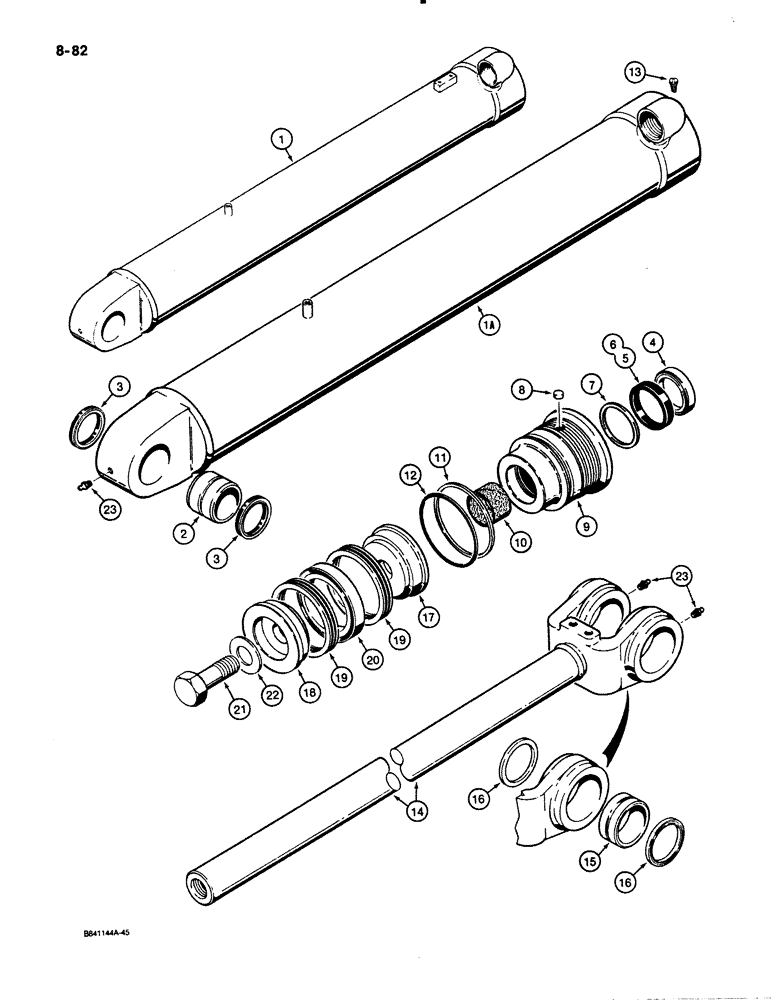

Запчасти Case W30 (8-82) - G107281 AND G109255 BUCKET CYLINDERS (08) - HYDRAULICS

G107281

CYLINDER

ASSEMBLY - 4-1/2" (114 mm) ID x 39-9/16" (1005 mm) stroke, bucket, left-hand

1шт.

G109255

CYLINDER

ASSEMBLY - 4-1/2" (114 mm) ID x 39-9/16" (1005 mm) stroke, bucket, right-hand

1шт.

1

G109254

TUBE,114.173 mm ID x 1237.74 mm L

- G109255 cylinder

1шт.

1a

G104121

TUBE,114.17 mm ID x 1237.7 mm L

- G107281 cylinder

1шт.

2

G100495

BUSHING,51.13mm ID x 63.63mm OD x 45.72mm L

- each tube

1шт.

3

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

- Cylinder eye

2шт.

G104950

GLAND

ASSEMBLY - cylinder

1шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G105520

1шт.

5

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G105520

1шт.

6

G100779

SEAL

U-CUP SEAL - piston rod, service option, extreme heat or cold

1шт.

7

G109086

RING

SEAL - piston rod, narrow

1шт.

Part of Seal Kit, P/N G105520

1шт.

8

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

10

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit, P/N G105520

1шт.

11

G32284

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G105520

1шт.

12

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland seal

1шт.

Part of Seal Kit, P/N G105520

1шт.

13

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

14

G102370

ROD

- 2-1/4" (57 mm) diameter

1шт.

15

L72199

BUSHING,57.48mm ID x 69.98mm OD x 22.86mm L

- rod clevis

2шт.

16

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod clevis

4шт.

17

D46425

PISTON

- rod end

1шт.

18

D46931

PISTON

- bolt end

1шт.

19

D47205

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of Seal Kit, P/N G105520

1шт.

20

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

21

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

22

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

G105520

GASKET KIT

KIT - seal, Includes: Ref. 4, 5, 7, 10, 11, 12, and 19

1шт.
