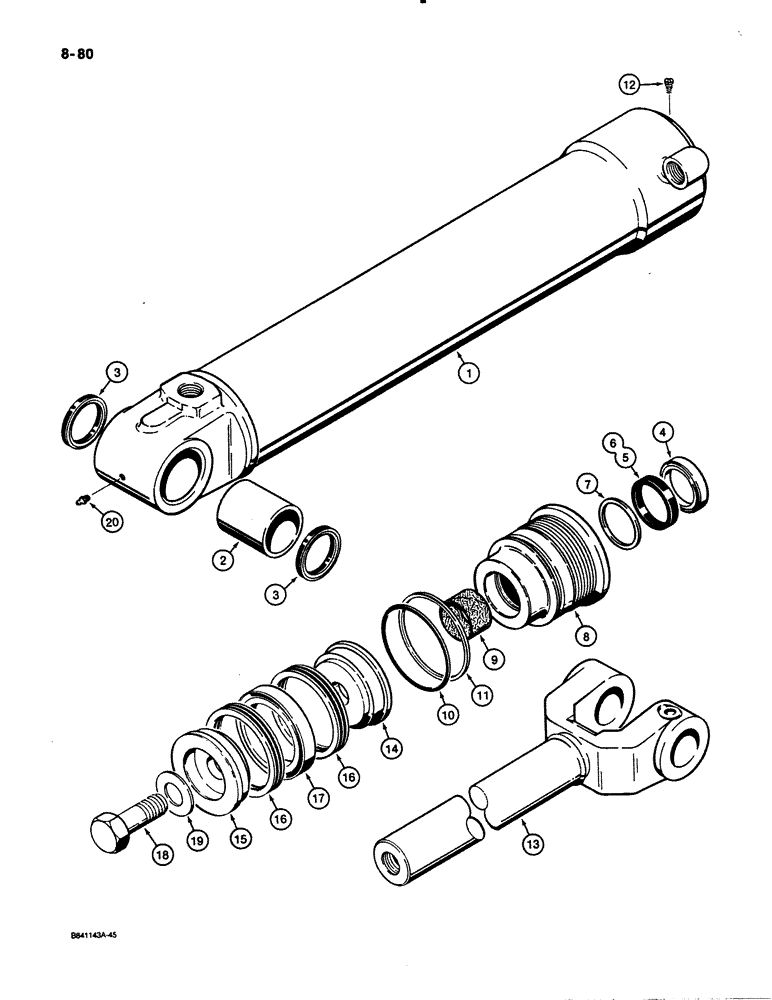

Запчасти Case W30 (8-80) - G103816 AND G103817 LIFT CYLINDERS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
G103816
CYLINDER BLOCK
CYLINDER ASSEMBLY - 5-1/2" (140 mm) ID x 33-15/32" (850 mm) stroke, right-hand
1шт.
G103817
CYLINDER BLOCK
CYLINDER ASSEMBLY - 5-1/2" (140 mm) ID x 33-15/32" (850 mm) stroke, left-hand
1шт.
1
G103818
TUBE
- G103816 cylinder
1шт.
1
G103819
TUBE,1123.18 mm L
- G103817 cylinder
1шт.
2
G108629
BUSHING
- each tube
1шт.
3
D95147
WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk
SEAL - cylinder eye
2шт.
G104958
GLAND
ASSEMBLY - cylinder
1шт.
Part of Seal Kit, P/N G106958
1шт.
5
G109054
SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk
U-CUP SEAL - piston rod, wide, production
1шт.
Part of Seal Kit, P/N G106958
1шт.
6
G100782
SEAL
U-CUP SEAL - piston rod, service option - extreme heat or cold
1шт.
7
G109015
SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk
- piston rod, narrow
1шт.
Part of Seal Kit, P/N G106958
1шт.
8
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
9
G102429
BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L
- center
1шт.
Part of Seal Kit, P/N G106958
1шт.
10
A27384
O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro
- gland seal
1шт.
Part of Seal Kit, P/N G106958
1шт.
11
G107971
RING
BACKUP RING - O-ring
1шт.
Part of Seal Kit, P/N G106958
1шт.
12
187-1524
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated
1шт.
13
G103824
ROD
- 3" (76 mm) diameter
1шт.
14
G106890
ROD
PISTON - rod end
1шт.
15
D49165
PISTON
- bolt end
1шт.
16
D47207
GASKET KIT
PACKING ASSEMBLY - piston, V-type
2шт.
Part of Seal Kit, P/N G106958
1шт.
17
D47212
BEARING WASHER,4.256" ID x 5.491" OD x 0.748"
RING - center bearing
1шт.
18
28-2456
BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8
- hex head, 1-1/2" - 12 NF x 3-1/2", grade 8
1шт.
19
G104990
WASHER
- hardened
1шт.
20
219-23
LUBE NIPPLE,1/4" - 18 NPTF
GREASE FITTING - straight, special short, 1/4" NPT
1шт.
G106958
KIT
- seal, Includes: Ref. 4, 5, 7, 9, 10, 11, and 16
1шт.
