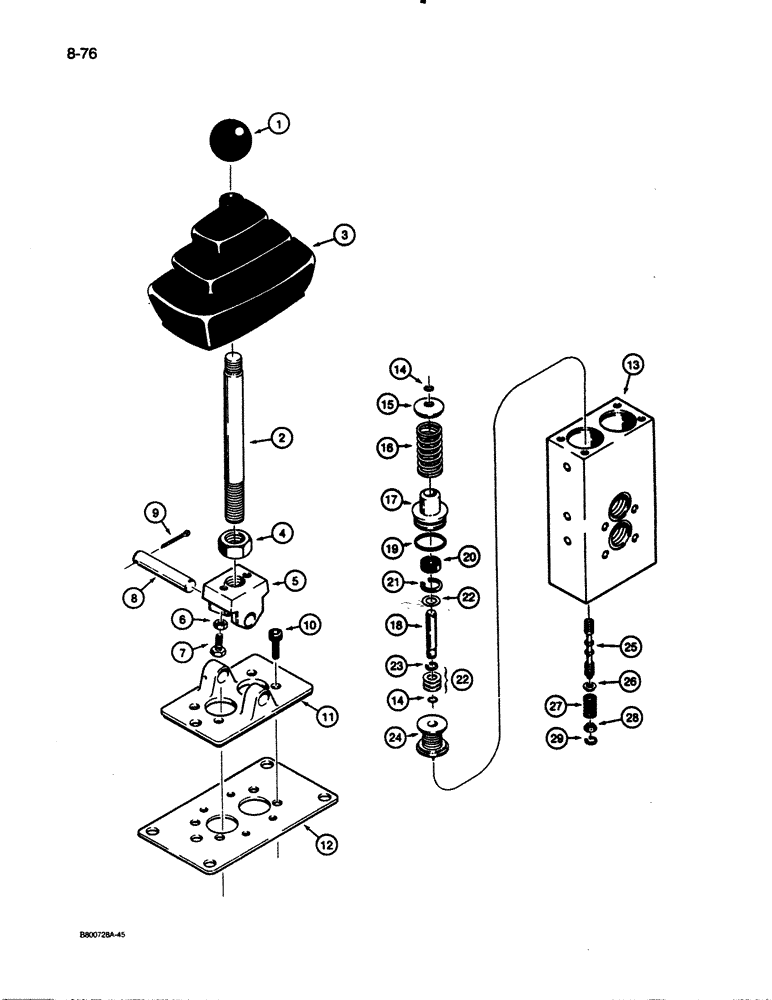

Запчасти Case W30 (8-76) - SINGLE LEVER REMOTE CONTROL VALVE - L101873, TWO SPOOL (08) - HYDRAULICS

L101873

VALVE, CONTROL

CONTROL VALVE ASSEMBLY - remote, two spool, single lever, no longer used, order L123917 valve and three 218-5209 plugs, Figure 8-78; L124620 cover, Figure 8-26; L127443 plate, page 8-25; and two L124664 hoses and L124665 elbow, Figure 8-22

1шт.

1

N6977

KNOB

- lever

1шт.

2

N6986

LEVER

- control

1шт.

3

N6556

BOOT

- shield

1шт.

4

S109875

NUT

- special

1шт.

5

S116377

BRACKET, PIVOT

PIVOT - lever

1шт.

6

825-1105

NUT,M5, Cl 8

- hex, 5 mm - 0.8

2шт.

7

S116379

BOLT

- special

2шт.

8

N6987

PIN

- pivot

1шт.

9

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

10

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

SCREW - hex socket head, 5 mm - 0.8 x 16 mm (8.8)

4шт.

11

N6988

PLATE

- pivot mounting

1шт.

12

N6989

PLATE

- valve mounting

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

N6984

KIT

- guide bushing

2шт.

14

NSS

NOT SOLD SEPARAT

SNAP RING - stud

2шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - guide bushing

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - guide

1шт.

18

NSS

NOT SOLD SEPARAT

STUD - guide

1шт.

19

S109852

O-RING,15.3mm ID x 2.4mm Width

- guide bushing

1шт.

20

S109853

SEAL

- stud

1шт.

21

NSS

NOT SOLD SEPARAT

SNAP RING - guide bushing

1шт.

22

S109857

SHIM,0.5mm Thk

Spacer 0.5mm Thk

1шт.

22

S109856

SHIM,0.2mm Thk

Spacer 0.2mm Thk

1шт.

23

NSS

NOT SOLD SEPARAT

SNAP RING - stud

1шт.

24

N6985

KIT

- spring, upper

2шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

S116392

KIT

- spring, lower

2шт.

26

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

28

NSS

NOT SOLD SEPARAT

GUIDE - washer

1шт.

29

NSS

NOT SOLD SEPARAT

SNAP RING - guide

1шт.
