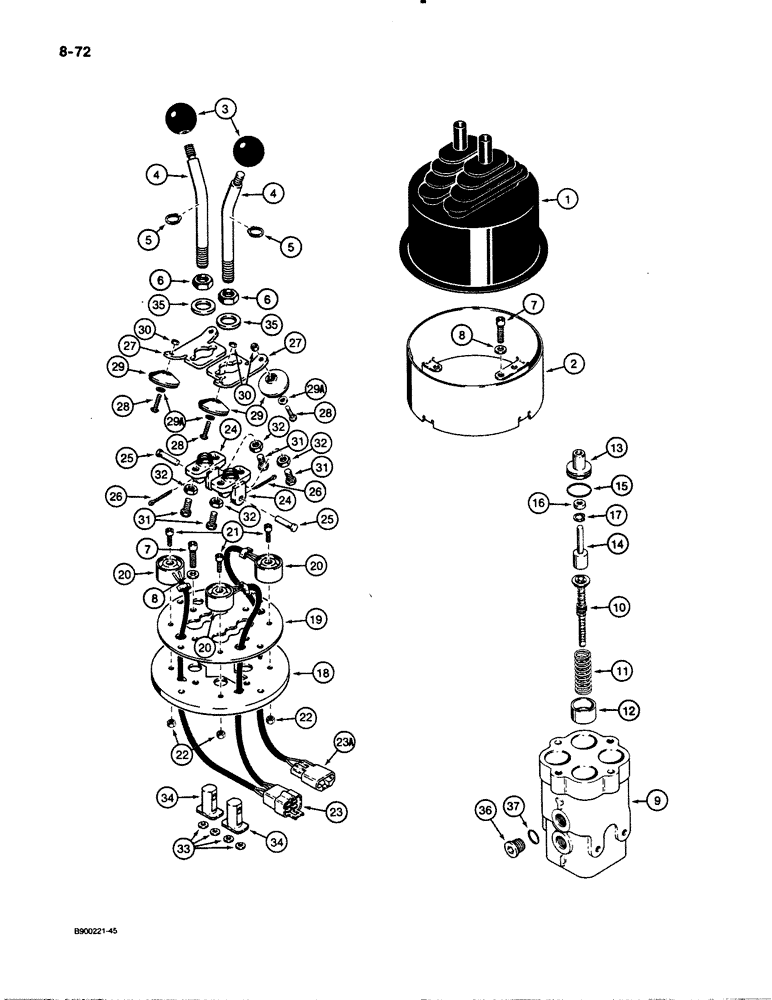

Запчасти Case W30 (8-72) - DUAL LEVER REMOTE CONTROL VALVE - L118040, FOUR SPOOL (08) - HYDRAULICS

L118040

VALVE

ASSEMBLY - control, remote, four spool, dual lever

1шт.

1

1971897C1

DUST CAP

BOOT - dust

1шт.

2

1971890C1

CLAMP

COLLAR - control valve

1шт.

3

1978187C1

BALL KNOB

KNOB - control lever

2шт.

4

1971898C1

LEVER

- control

2шт.

5

26593R1

SNAP RING,#50, Ext

Ring, Snap, , control lever #50, Ext

2шт.

6

129-165

JAM NUT,Jam, 1/2"-20, G5

2шт.

7

165-143

HEX SOC SCREW,1/4" - 20 x 3/4"

BOLT - hex socket head, 1/4" - 20 NC x 3/4", plated

4шт.

8

1978189C1

WASHER

- flat

4шт.

1971891C1

VALVE

ASSEMBLY - remote control

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

1971892C1

SPOOL

ASSEMBLY - control valve

4шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

11

1978191C1

SPRING

- spool

1шт.

12

1978192C1

RACE

SLEEVE - spool

1шт.

1971896C1

PLUNGER

ASSEMBLY - control valve

4шт.

13

1978207C1

GUIDE

- valve, long stem

1шт.

14

N13694

LARGE PIN

PLUNGER - valve

1шт.

15

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- guide

1шт.

16

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- plunger

1шт.

17

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , plunger 0.50", Int, #50

1шт.

18

1978196C1

LARGE PLATE

PLATE - plastic, lower

1шт.

19

1978208C1

LARGE PLATE

PLATE - metal, upper

1шт.

20

1971887C1

SOLENOID SWITCH

COIL - magnetic

3шт.

21

28243R1

HEX SOC SCREW,#10 - 24 x 1/2"

BOLT - hex socket head, No. 10 - 24 NC x 1/2"

3шт.

22

120361

NUT,Hex Mach Screw, #10 - 24

3шт.

23

1978198C1

CONNECTION

CONNECTOR - magnetic coil, with male terminal

1шт.

23a

1978225C1

CONNECTION

CONNECTOR - magnetic coil, with female terminal

1шт.

24

N13680

PIVOT

- control valve

2шт.

25

N13678

PIN

- rocker

2шт.

26

132-378

COTTER PIN,1/16" x 1"

1/16" x 1"

2шт.

27

1978210C1

BRACKET

PLATE - control valve

2шт.

28

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- machine, round head, slotted, No. 8 NC x 1/2 inch

3шт.

29

1978200C1

LARGE PLATE

DISC - armature

3шт.

29a

1978224C1

WASHER

- special, disc alignment

3шт.

30

115998

NUT,#8-32

NUT, #8-32

3шт.

31

N13679

BOLT

- special, spool actuator

4шт.

32

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

33

1978211C1

SHIM

- control valve

1шт.

34

1971886C1

POST

- control valve

2шт.

35

1978212C1

SPACER

WASHER - control lever

2шт.

36

9625178

PLUG,9/16" - 18 ORB

If used Hex Soc, 9/16"-18 ORB

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
