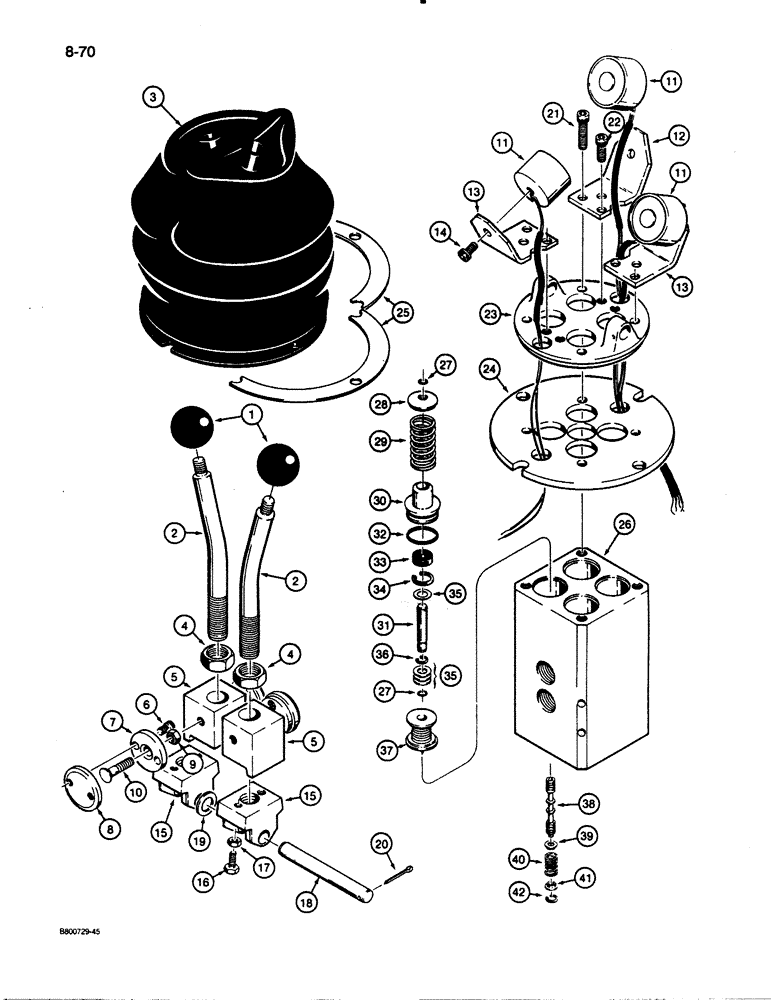

Запчасти Case W30 (8-70) - FOUR SPOOL DUAL LEVER REMOTE CONTROL VALVE (08) - HYDRAULICS

L112268

VALVE

- remote, dual lever, no longer available, see note below

1шт.

When replacing a complete valve, order L127880 plate, Figure 8-24; L124619 cover, Figure 8-26; and L118040 valve, Figure 8-72.

1шт.

L114836

VALVE

- remote, dual lever, no longer available, see note below

1шт.

When replacing a complete valve, order L127880 plate, Figure 8-24; L124619 cover, Figure 8-26; and L118040 valve, Figure 8-72.

1шт.

L117350

VALVE

- remote, dual lever, no longer available, see note below

1шт.

When replacing a complete valve, order L127880 plate, Figure 8-24; L124619 cover, Figure 8-26; and L118040 valve, Figure 8-72.

1шт.

1

N6977

KNOB

- lever

2шт.

2

N6978

LEVER

- control

2шт.

3

N8878

BOOT

- shield

1шт.

4

S109875

NUT

- special

2шт.

5

N6979

SUPPORT

MOUNT - disc

2шт.

6

864-4006

HEX SOC SCREW,M4 x 6mm, Cl 8.8

SCREW - hex socket head, 4 mm - 0.7 x 6 mm (8.8)

6шт.

7

N6851

DISC

- inner

3шт.

8

N6852

DISC

- outer

3шт.

9

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1

3шт.

10

N6853

SCREW,Spcl

- special

3шт.

11

N6558

SWITCH

SOLENOID - control lever

3шт.

12

N6980

SUPPORT

BRACKET - mounting, right-hand, solenoid

1шт.

13

N6981

SUPPORT

BRACKET - mounting, left-hand, solenoid

2шт.

14

N6559

SUPPORT

SCREW - special

3шт.

15

S116377

BRACKET, PIVOT

PIVOT - lever

2шт.

16

S116379

BOLT

- special

4шт.

17

825-1105

NUT,M5, Cl 8

- hex, 5 mm - 0.8

4шт.

18

S116384

PIN

SHAFT - pivot

1шт.

19

N13153

WASHER

- special

1шт.

20

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

21

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

SCREW, Hex Soc Hd, M5 x 20, 8.8

4шт.

22

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

SCREW, Hex Soc Hd, M5 x 10, 8.8

3шт.

23

N6982

PLATE

- pivot, bracket

1шт.

24

N6983

PLATE

- mount

1шт.

25

N8331

RING

- boot retainer

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

N6984

KIT

- guide bushing

2шт.

27

NSS

NOT SOLD SEPARAT

SNAP RING - stud

2шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - guide bushing

1шт.

30

NSS

NOT SOLD SEPARAT

BUSHING - guide

1шт.

31

NSS

NOT SOLD SEPARAT

STUD - guide

1шт.

32

S109852

O-RING,15.3mm ID x 2.4mm Width

- guide bushing

1шт.

33

S109853

SEAL

- stud

1шт.

34

NSS

NOT SOLD SEPARAT

SNAP RING - guide bushing

1шт.

35

S109856

SHIM,0.2mm Thk

Spacer 0.2mm Thk

1шт.

35

S109857

SHIM,0.5mm Thk

Spacer 0.5mm Thk

1шт.

36

NSS

NOT SOLD SEPARAT

SNAP RING - stud

1шт.

37

N6985

KIT

- spring, upper

1шт.

38

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

S116392

KIT

- spring, lower

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

40

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

41

NSS

NOT SOLD SEPARAT

GUIDE - washer

1шт.

42

NSS

NOT SOLD SEPARAT

SNAP RING - guide

1шт.
