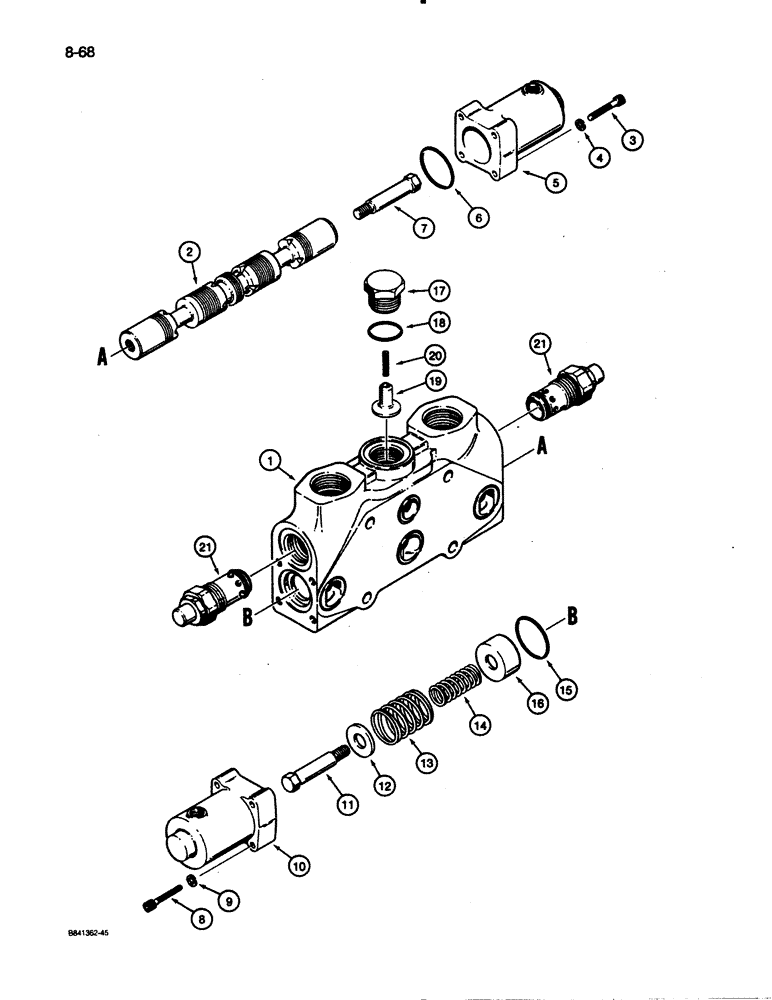

Запчасти Case W30 (8-68) - AUXILIARY SECTIONS - N9248 AND S300305 (08) - HYDRAULICS

N9248

VALVE

SECTION ASSEMBLY - auxiliary, no longer used, order

1шт.

S300305 auxiliary section for service

1шт.

S300305

VALVE

SECTION ASSEMBLY - auxiliary

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - auxiliary section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - auxiliary section

1шт.

3

61-424

HEX SOC SCREW,1/4"-20 x 1 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1-1/2"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

N9447

COVER

CAP - spring

1шт.

6

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - cap, o-ring

1шт.

7

N9480

BOLT

- special, spool guide

1шт.

8

61-424

HEX SOC SCREW,1/4"-20 x 1 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1-1/2"

4шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

N9447

COVER

CAP - spring

1шт.

11

N9480

BOLT

- special, spool positioner

1шт.

12

N9451

SPACER

- spring retainer

1шт.

13

N9481

SPRING

- spool positioner, large

1шт.

14

N9482

SPRING

- spool positioner, small

1шт.

15

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - cap, o-ring

1шт.

16

N9483

SPACER

- spring retainer

1шт.

17

N9455

PLUG

- load check

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

19

N9456

PIN

POPPET - load check

1шт.

20

D28840

SPRING

- load check

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - circuit relief, parts list Figure 8-58

2шт.
