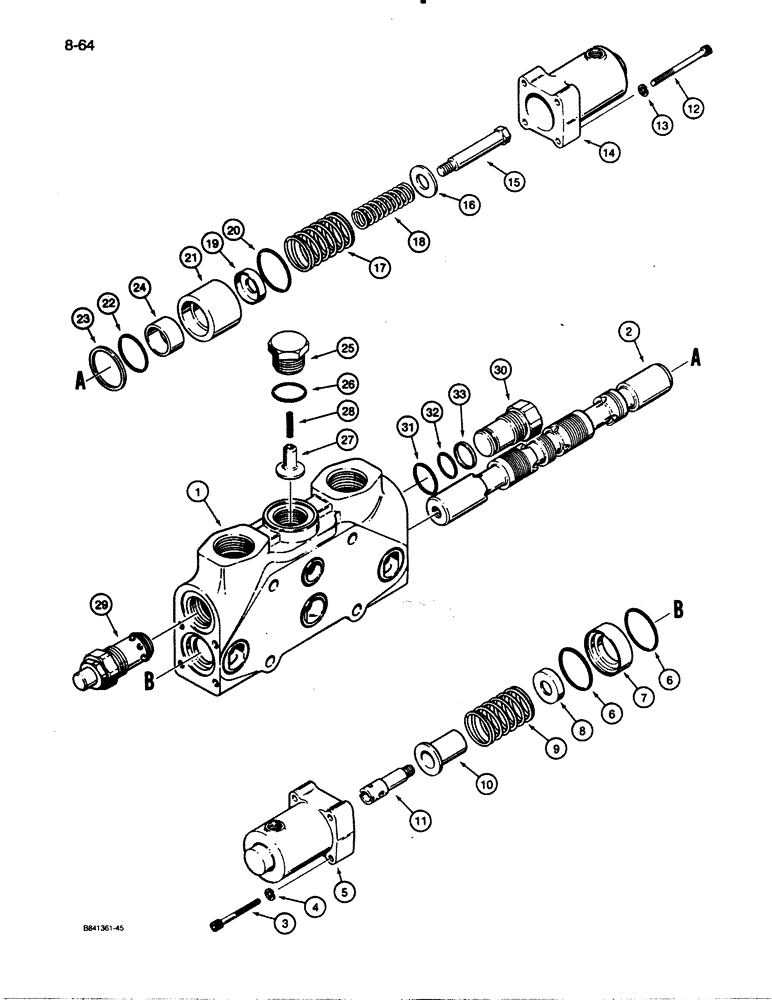

Запчасти Case W30 (8-64) - LOADER LIFT SECTION (08) - HYDRAULICS

N9476

VALVE

SECTION ASSEMBLY - lift, no longer used, order S300306

1шт.

section, parts list Figure 8-66

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - lift section

1шт.

3

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

SCREW - hex socket head, 1/4"-20 NC x 2-1/4"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

N9447

COVER

CAP - spring

1шт.

6

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - cap, o-ring

2шт.

7

N9448

SPACER

- cap

1шт.

8

N9443

SPACER

- spring

1шт.

9

N9444

SPRING

- spool positioner

1шт.

10

N9477

SLIDE

- spool positioner

1шт.

11

N9446

BOLT

- special, spool guide

1шт.

12

61-448

HEX SOC SCREW,1/4"-20 x 3"

SCREW - hex socket head, 1/4" - 20 NC x 3"

4шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

N9447

COVER

CAP - spring

1шт.

15

N9452

BOLT

- special, spool positioner

1шт.

16

N9451

SPACER

- spring retainer

1шт.

17

N9444

SPRING

- spool positioner, large

1шт.

18

N9453

SPRING

- spool positioner, small

1шт.

19

N9443

SPACER

- spring

1шт.

20

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - cap, o-ring

1шт.

21

N9450

SPACER

- cap

1шт.

22

A62194

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL - cap spacer

1шт.

23

N9454

RING

SPACER - seal

1шт.

24

N9449

SLEEVE

- cap spacer

1шт.

25

N9455

PLUG

- load check

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

27

N9456

PIN

POPPET - load check

1шт.

28

D28840

SPRING

- load check

1шт.

29

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - circuit relief, parts list Figure 8-58

1шт.

N9478

PLUG

ASSEMBLY - no relief

1шт.

30

NSS

NOT SOLD SEPARAT

PLUG - lift section

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, large

1шт.

32

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- plug, small

1шт.

33

N9459

BACK-UP RING

BACKUP RING - small o-ring

1шт.
