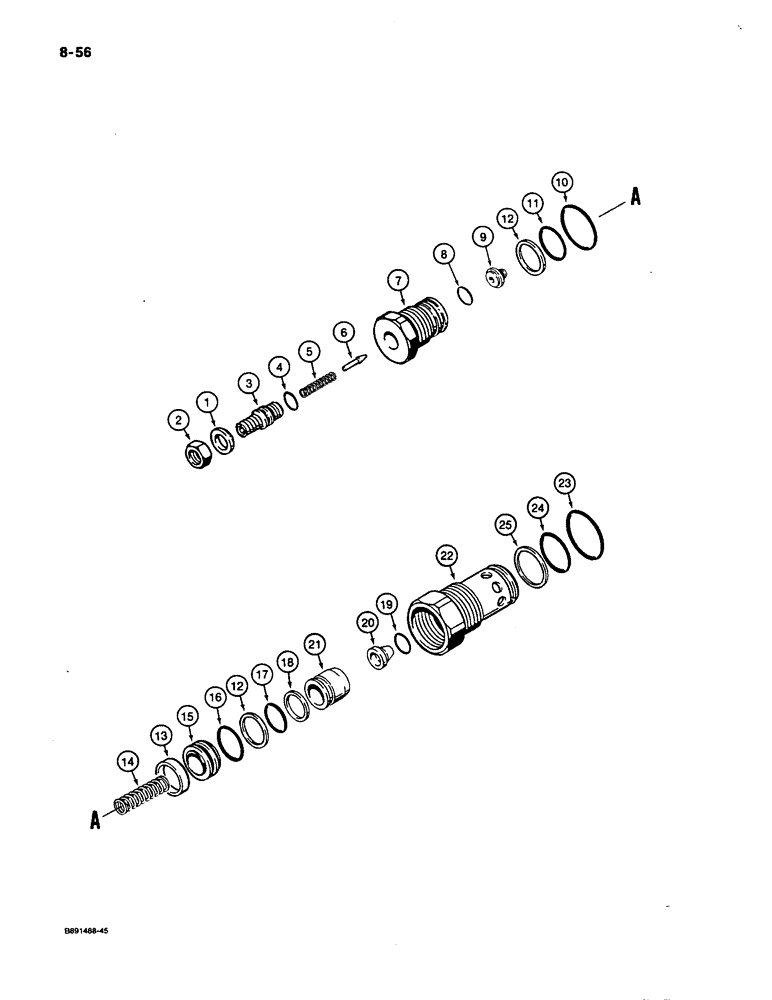

Запчасти Case W30 (8-56) - MAIN RELIEF VALVE - S300885 (08) - HYDRAULICS

S300885

VALVE

ASSEMBLY - main relief, loader control valve

1шт.

1

N9475

WASHER

- valve

1шт.

2

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, hex, 3/8 inch NF

1шт.

3

N9463

ADJUSTMENT SCREW

- adjusting

1шт.

4

S300247

SEAL,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

O-RING - adjustment screw

1шт.

5

N9465

SPRING

- plunger

1шт.

6

N9464

PLUNGER

- relief valve

1шт.

S300893

PLUNGER ASSY.

BODY ASSEMBLY - pilot plunger

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - pilot plunger

1шт.

8

S300900

O-RING,0.364" ID x 0.07" Width

- shaft

1шт.

9

S300898

SPRING SEAT

SEAT - pilot

1шт.

10

S300908

WIPER SEAL

O-RING - plunger body, large

1шт.

11

S300243

GASKET

O-RING - plunger body, small

1шт.

12

A25298

RING

- backup, O-ring

2шт.

13

N9472

SPACER

- sleeve

1шт.

14

S300890

SPRING

- poppet

1шт.

15

N9461

SPACER

SLEEVE - poppet

1шт.

16

S300243

GASKET

O-RING - sleeve

1шт.

17

S300891

WIPER SEAL

O-RING - poppet

1шт.

18

N9470

GASKET

RING - backup, poppet O-ring

1шт.

19

S300911

WIPER SEAL

O-RING - relief filter

1шт.

20

S300897

FILTER

- relief

1шт.

21

S300910

RACE

POPPET - relief valve

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

24

S300888

WIPER SEAL

O-RING - 15/16 ID x 1/16 inch wide

1шт.

25

S300889

GASKET

RING - backup, small O-ring

1шт.

S301665

SEAL KIT

seal, contains item 4, 10 - 12, 16 - 19 and 23 - 25

1шт.
