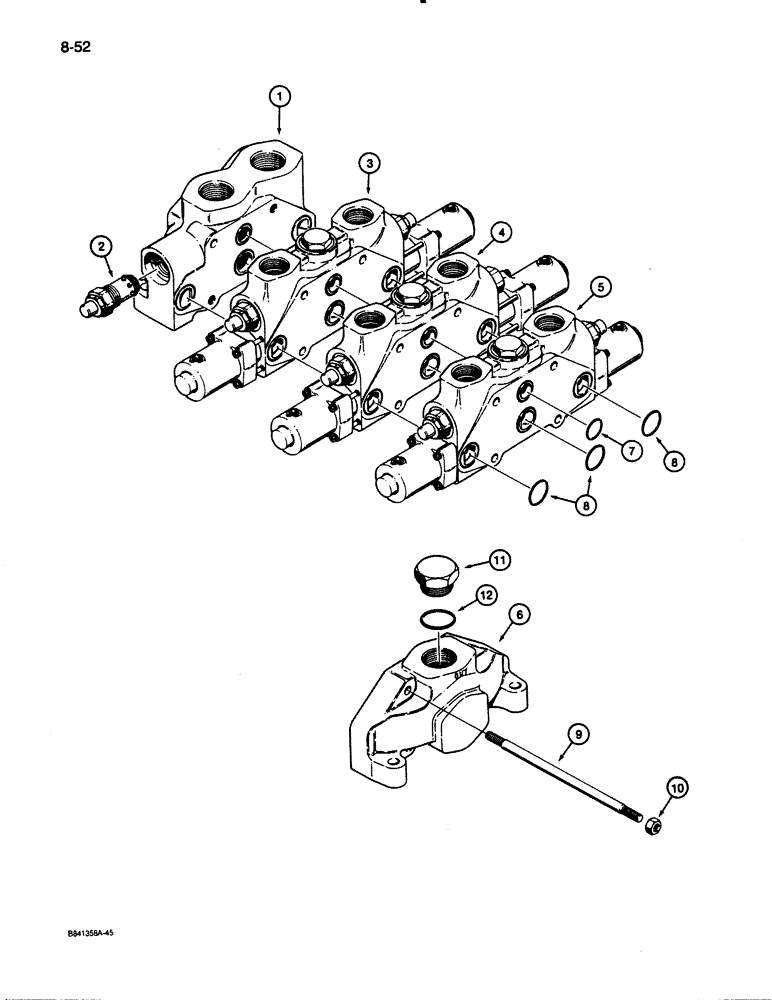

Запчасти Case W30 (8-52) - LOADER CONTROL VALVE - THREE SPOOL (08) - HYDRAULICS

L109436

CONTROL VALVE

VALVE ASSEMBLY - loader control, three spool, no longer

1шт.

used, order L126422 valve

1шт.

L126422

VALVE, CONTROL

VALVE ASSEMBLY - loader control, three spool

1шт.

1

N9438

VALVE

END SECTION - inlet and outlet

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - main relief, for correct assembly and

1шт.

components, see Figures 8-54 and 8-56

1шт.

3

REF

INSTRUCTION

SECTION ASSEMBLY - bucket, for correct assembly and

1шт.

components, see Figures 8-60 and 8-62

1шт.

4

REF

INSTRUCTION

SECTION ASSEMBLY - lift, for correct assembly and

1шт.

components, see Figures 8-64 and 8-66

1шт.

5

REF

INSTRUCTION

SECTION ASSEMBLY - auxiliary, for correct assembly and

1шт.

components, see Figure 8-68

1шт.

6

N9484

COVER

PLATE - end

1шт.

7

A59066

O-RING,1.239" ID x 1.379" OD

- between sections, small

4шт.

Ref #7 - Replaced by 238-5026

1шт.

8

22458R1

O-RING,1.489" ID x 1.629" OD x 0.07"

- between sections, large

12шт.

9

N9247

STUD

BOLT - tie, special

4шт.

Ref #8 - Replaced by 238-5029

1шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

11

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

- end cover

1шт.

12

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- plug

1шт.
