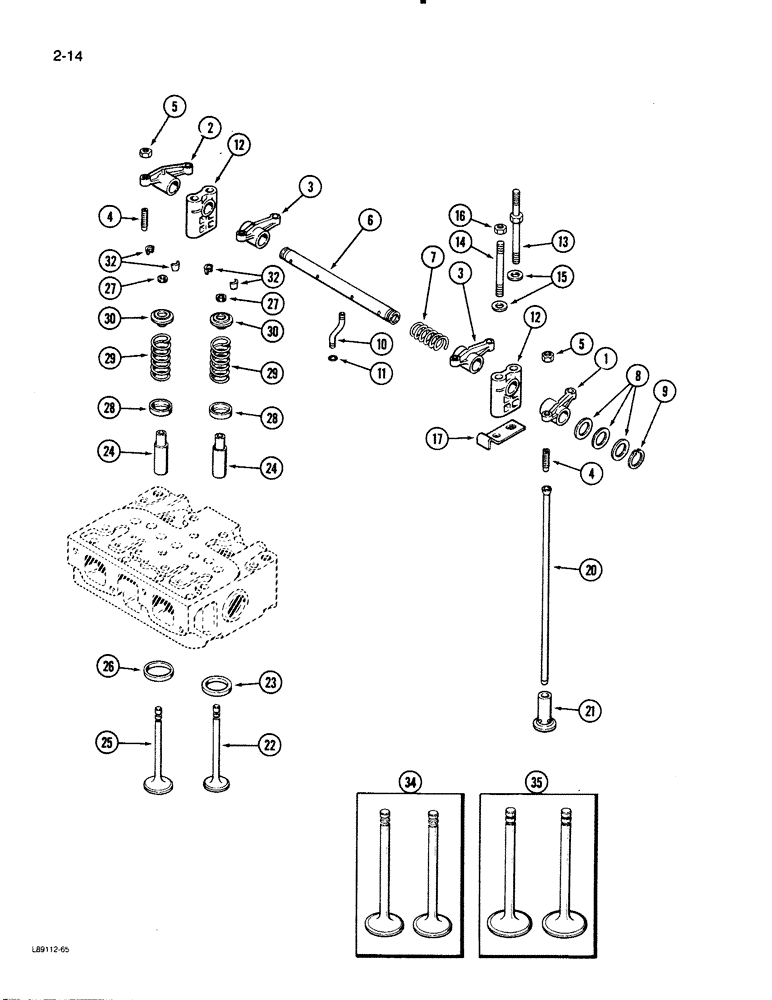

Запчасти Case W30 (2-14) - VALVE MECHANISM, 504BDT ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust valves (First, third and fifth cylinder)

3шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust valves (Second, fourth and sixth cylinder)

3шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valve

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, push rods

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

6

A150545

SHAFT

- rocker arm

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- thrust, 7/8 x 1-5/16 x 1/32 inch

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker arm shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube, 3/16 x 5/16 x 1/16 inch

3шт.

12

A61128

BRACKET

- rocker arm shaft

6шт.

13

A67121

STUD

- rocker arm bracket and cover

6шт.

14

A58659

STUD

- rocker arm bracket, 7/16 NC x 4-5/16 inch

6шт.

15

195-29

WASHER,7/16"

- flat, 1/2 x 15/16 x 1/16 inch

12шт.

16

25-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

6шт.

17

A157197

STRAP

- rocker shaft bracket

6шт.

20

A157328

ROD

- push

12шт.

21

A20865

TAPPET

LIFTER - push rod standard

12шт.

21

A21857

TAPPET

LIFTER - push rod, 0.010 inch

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Order A41753 kit)

3шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust, Stellite (Order A46289 kit) (A150225 stamped on part)

6шт.

23

A66192

INSERT

- exhaust valve seat

6шт.

24

A41783

GUIDE

- intake and exhaust valves

12шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order A44575 kit)

3шт.

26

A66191

INSERT

- intake valve seat

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- intake and exhaust valve springs

12шт.

29

A66444

SPRING

- intake and exhaust valves

12шт.

30

A66336

ROTATOR

RETAINER - intake and exhaust valves (Roto Coil)

12шт.

32

A27872

LOCK

- valve spring retainer

12шт.

34

A41753

VALVE

KIT - exhaust valve (Set of 2)

3шт.

34

A46289

VALVE

KIT - exhaust valve (Stellite)(Set of 2)

3шт.

35

A44575

VALVE

KIT - intake valve (Set of 2)

3шт.
