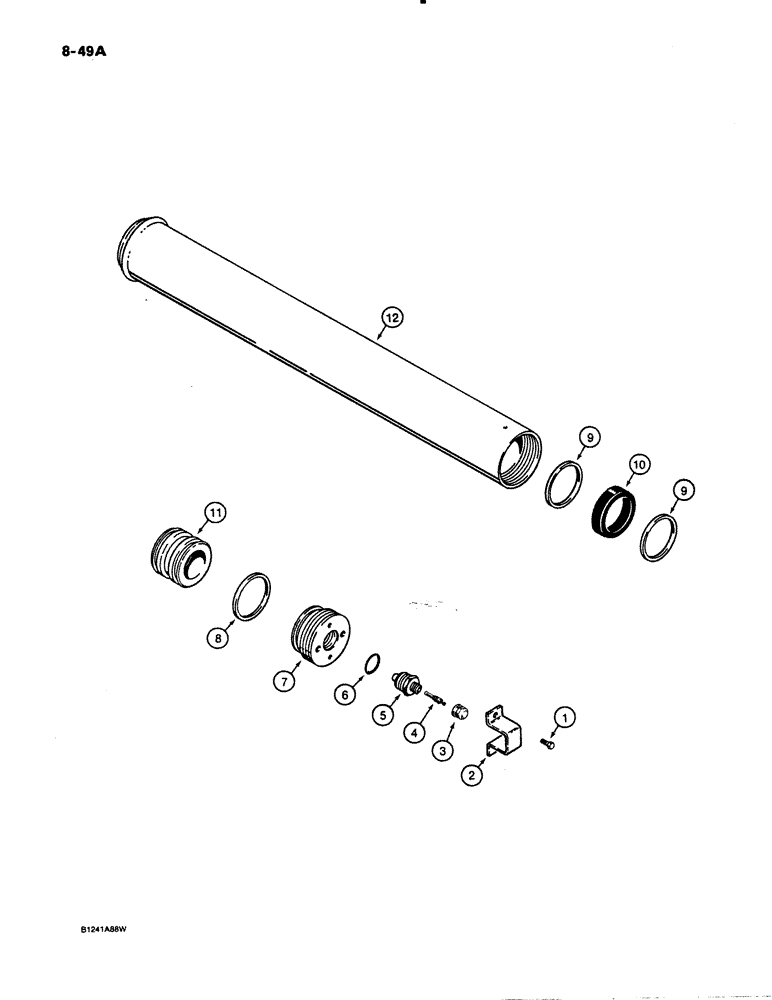

Запчасти Case W30 (8-49A) - ACCUMULATOR - L118361, P.I.N. 802P6007P AND AFTER (08) - HYDRAULICS

L118361

ACCUMULATOR

ASSEMBLY - remote controls

1шт.

1

187-1066

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - hex, self-tapping, No. 10 NC x 3/8 inch

2шт.

2

1978140C1

PROTECTOR

BRACKET - protection, valve

1шт.

1978142C1

VALVE

ASSEMBLY - charge

1шт.

3

1978144C1

CAP

- charge valve

1шт.

4

1978143C1

PISTON

VALVE - charge valve assembly

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - order 1978142C1 valve assembly

1шт.

6

1978158C1

O-RING

- charge valve

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND - accumulator

1шт.

1978141C1

SEAL KIT

KIT, SEALS, Accumulator

1шт.

8

NSS

NOT SOLD SEPARAT

RING - seal, gland

1шт.

9

NSS

NOT SOLD SEPARAT

RING - wear, Teflon, piston

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - accumulator

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - accumulator

1шт.
