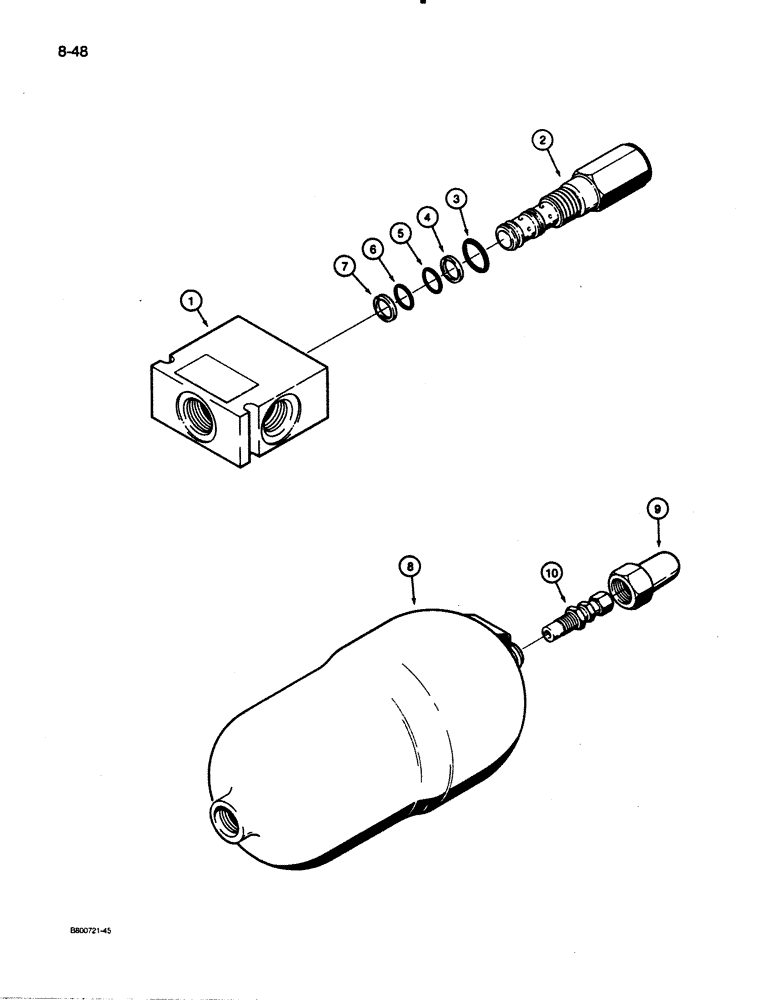

Запчасти Case W30 (8-48) - PRESSURE REDUCING VALVE AND ACCUMULATOR (08) - HYDRAULICS

L101927

VALVE

ASSEMBLY - pressure reducing, L101927

1шт.

1

N6523

BODY

- valve, L101927 pressure reducing

1шт.

N6524

VALVE

RELIEF - cartridge, L101927 pressure reducing valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - relief, L101927 pressure reducing valve

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer, L101927 pressure reducing valve

1шт.

4

L30012

RING

BACKUP RING - middle, L101927 pressure reducing valve

1шт.

5

A65918

O-RING,0.551" ID x 0.691" OD

- middle, L101927 pressure reducing valve

1шт.

6

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner, L101927 pressure reducing valve

1шт.

7

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - inner, L101927 pressure reducing valve

1шт.

L123768

TANK

ACCUMULATOR ASSEMBLY - remote controls, replaces L101878 accumulator, L123768 prior to P.I.N. 802P6007P

1шт.

8

NSS

NOT SOLD SEPARAT

TANK - accumulator, L123768 prior to P.I.N. 802P6007P

1шт.

9

N6586

GUARD

- accumulator, L123768 prior to P.I.N. 802P6007P

1шт.

10

N6587

VALVE

- accumulator, L123768 prior to P.I.N. 802P6007P

1шт.
