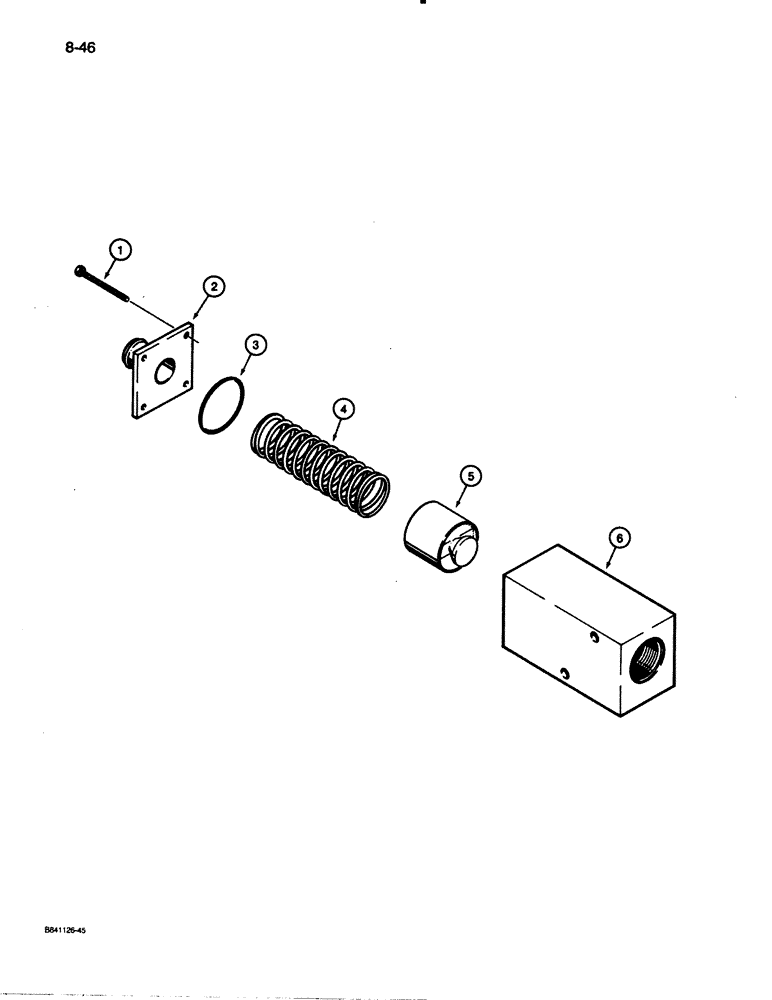

Запчасти Case W30 (8-46) - BYPASS VALVE - COOLER (08) - HYDRAULICS

L110287

VALVE,1-7/8" - 12

ASSEMBLY - cooler bypass

1шт.

1

113-106

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5, Full Thd

Hex, 5/16"-18 x 2-1/2", G5, Full Thd

4шт.

2

L106843

TUBE

ASSEMBLY - outlet

1шт.

3

A11021

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- outlet

1шт.

4

L110277

SPRING

- valve

1шт.

5

L110280

VALVE

POPPET - valve

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.
