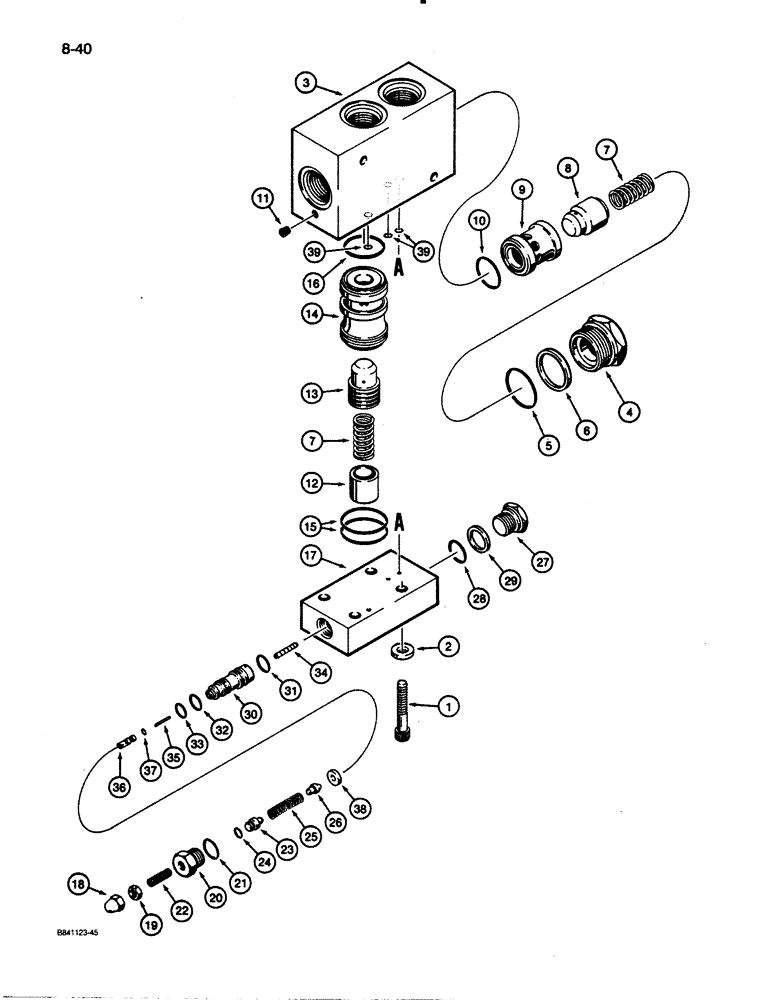

Запчасти Case W30 (8-40) - L115061 UNLOADING VALVE (08) - HYDRAULICS

L115061

VALVE

ASSEMBLY - unloading

1шт.

1

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

BOLT - hex socket head, 3/8" - 16 NC x 2-1/4"

4шт.

2

A30058

WASHER

- special

4шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve, large

1шт.

4

N9184

PLUG

- special

1шт.

5

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- plug

1шт.

6

A76898

RING

BACKUP RING - plug O-ring

1шт.

7

N9172

SPRING

- poppet

2шт.

8

N9182

VALVE POPPET

POPPET - large, under N9184 plug

1шт.

9

N9181

SEAT

- poppet

1шт.

10

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- N9181 seat

1шт.

11

221-850

PLUG,Hex Soc, 1/16"-27

PIPE PLUG - hex socket head, 1/16" NPT

1шт.

12

NLS

NO LONGER SERVICED

- center poppet

1шт.

13

N9170

CHECK VALVE

POPPET - center, main body

1шт.

14

N9171

SEAT

- poppet

1шт.

15

S6587

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

- center poppet

2шт.

16

S6486

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

- N 9171 seat

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - small

1шт.

18

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - 5/16" - 24 NF

1шт.

19

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

20

N9174

BODY

ADAPTER - set screw

1шт.

22

178-889

SET SCREW,Hex Soc, 5/16"-24 x 1"

- 5/16" - 24 NF x 1"

1шт.

23

N9175

PISTON

- valve

1шт.

24

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Piston

1шт.

25

N9176

SPRING

- pressure setting

1шт.

26

N9177

SHUT-OFF VALVE

POPPET - pilot

1шт.

27

N9183

PLUG

- special, small valve body

1шт.

28

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- N9183 plug

1шт.

29

N9189

GASKET

BACKUP RING - O-ring

1шт.

30

N9180

SLEEVE

- set screw

1шт.

31

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- sleeve, large end

1шт.

32

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- sleeve, center

1шт.

33

S6475

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- sleeve, small end

1шт.

34

N9380

SPOOL

- valve

1шт.

35

N9188

HARDWARE

DOWEL PIN - valve

1шт.

36

N9179

GUIDE

- pin

1шт.

37

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

-008, 90 Duro, .176" ID x .070" Thk, pin guide

1шт.

38

N9178

SEAT

- poppet, pilot

1шт.

39

N9190

O-RING

- body seal

3шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

GASKET - adapter

1шт.
